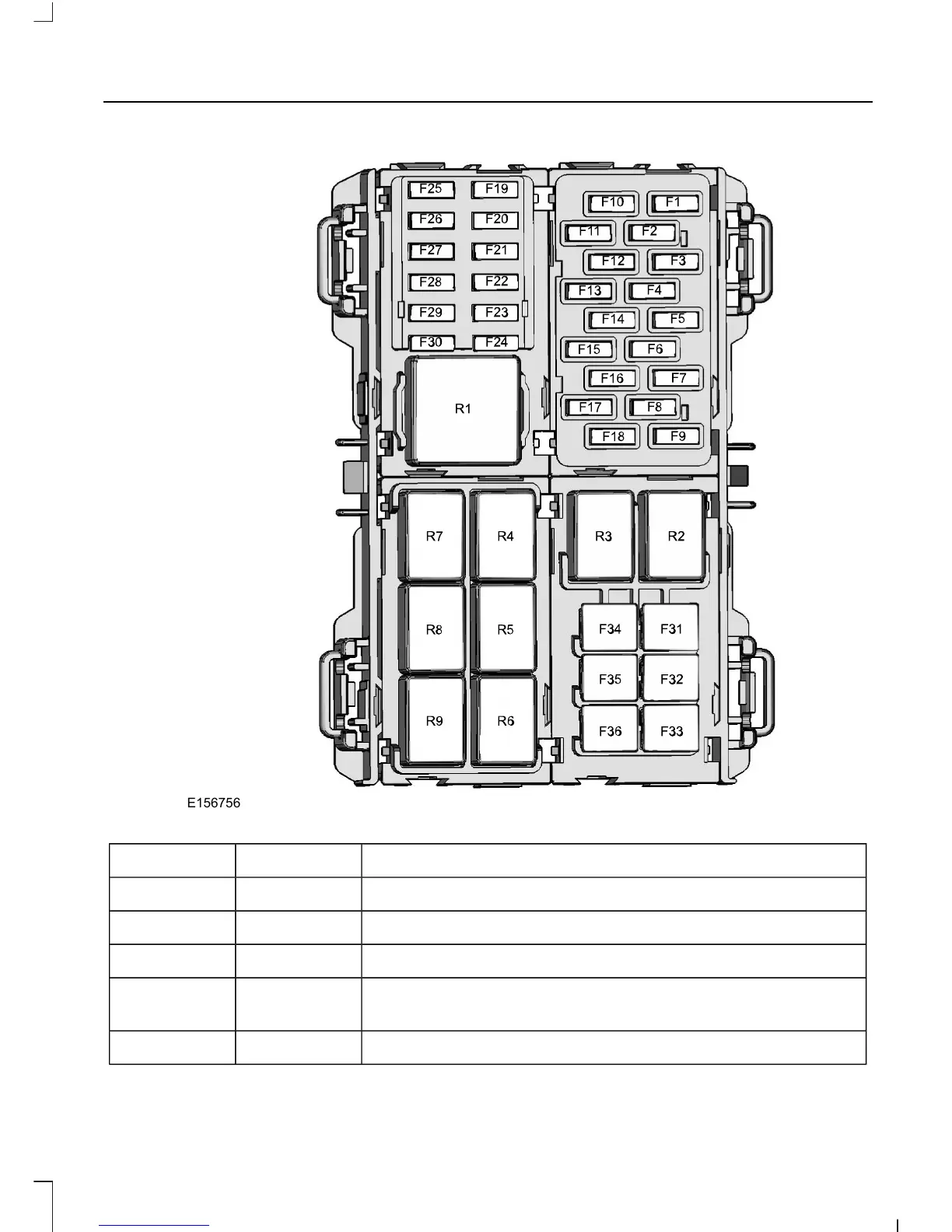

E156756

Circuits protectedFuse ratingFuse

Ignition switch15 A1

Interior mirror, autowipers, heater relay control7.5 A2

Instrument cluster7.5 A3

Passenger airbag deactivation indicator, passenger sensing

system

7.5 A

4

On-board diagnostics connector15 A5

173

Fiesta (CCT) Vehicles Built From: 11-10-2013, Vehicles Built Up To: 31-12-2013

Fuses
