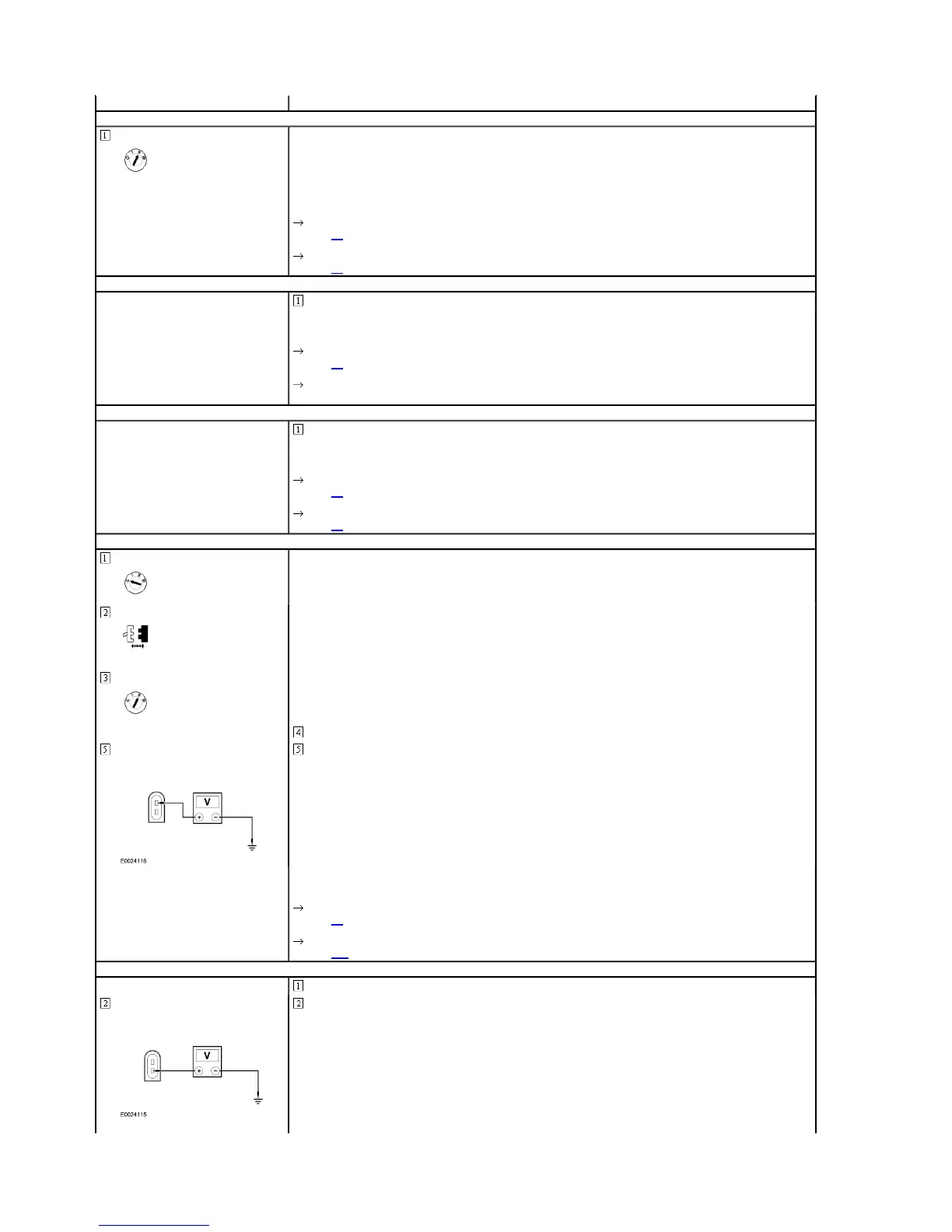

Ford Focus 2001 - Check Ignition Voltage to Driver Power Window Control Switch; Check Switch Voltage to Driver Power Window Control Switch; Check One-Touch Down Relay; Check Voltage to Driver Power Window Motor Down Circuit

CONDITIONS DETAILS/RESULTS/ACTIONS
B1 CHECK FOR IGNITION VOLTAGE TO THE DRIVER WINDOW POWER WINDOW CONTROL SWITCH
 Do the driver power window control switch LEDs illuminate?
Yes
GO to B2.
No
GO to B7.
B2 CHECK FOR SWITCH VOLTAGE TO THE DRIVER POWER WINDOW CONTROL SWITCH
Operate the driver passenger side front window control switch.
 Does the passenger window operate from the driver passenger side front window control switch?
Yes
GO to B3.
No
REPAIR circuit 15-AJ7 (GN/BU). TEST the system for normal operation.
B3 CHECK THE ONE-TOUCH DOWN RELAY
Operate the driver power window control switch to the first detent in the DOWN position.
 Does the one-touch down relay click?
Yes
GO to B4.
No
GO to B9.
B4 CHECK FOR VOLTAGE TO THE DRIVER POWER WINDOW MOTOR DOWN CIRCUIT
Driver Power Window Motor C782
Operate the driver power window control switch to the first detent in the DOWN position.
Measure the voltage between the driver power window motor C782 pin 2, circuit 32-AJ26 (WH), harness side and ground.
 Is the voltage greater than 10 volts?
Yes
GO to B5.
No
GO to B12.
B5 CHECK FOR VOLTAGE TO THE DRIVER POWER WINDOW MOTOR UP CIRCUIT
Operate the driver power window control switch to the UP position.
Measure the voltage between the driver power window motor C782 pin 1, circuit 33-AJ26 (YE), harness side and ground.
