Electronic Sound Systems
37
*

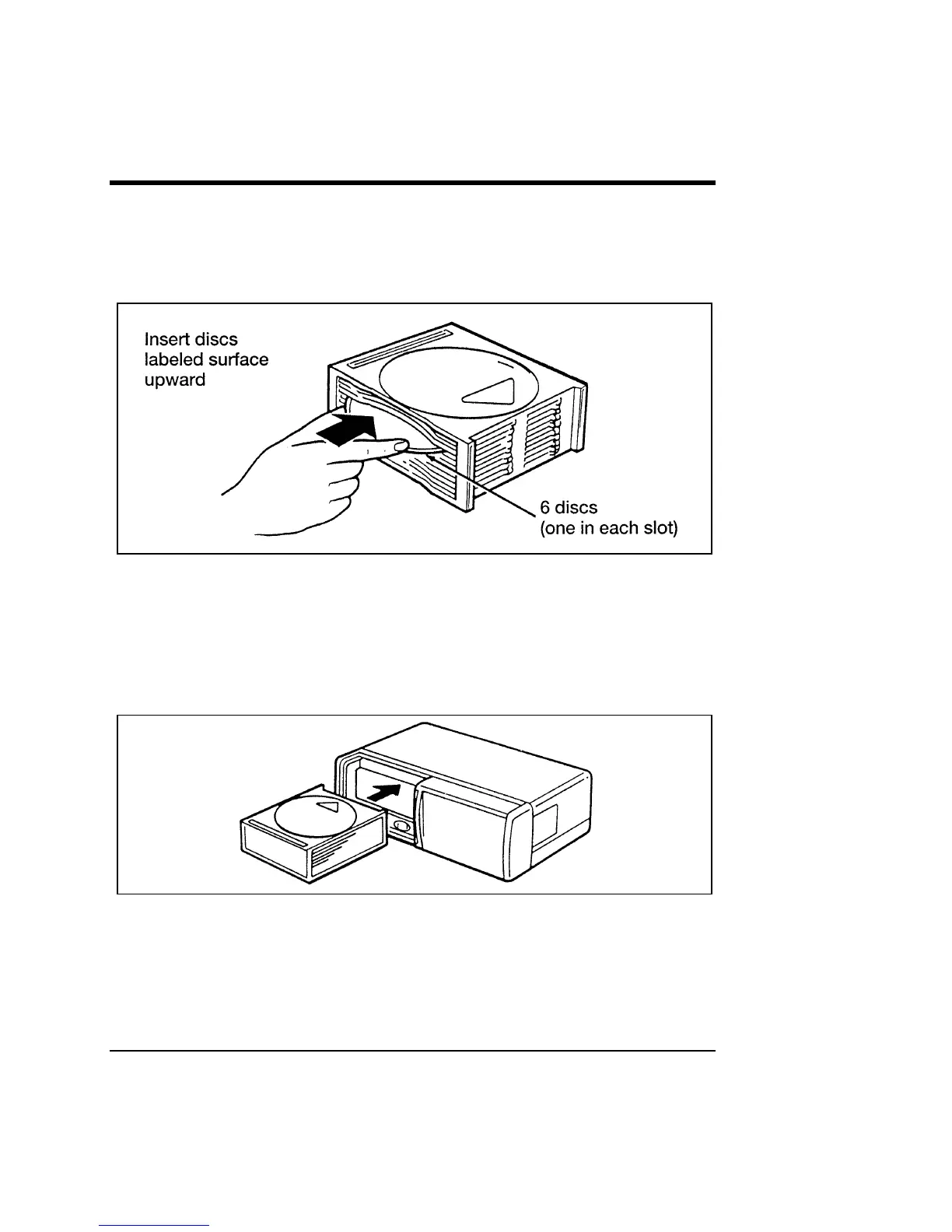

[AS29775(R)04/94] 3. Load discs into the disc magazine slots (numbered 1 through
6) one at a time with labeled surfaces upward, starting with
bottom slot number 1 (Figure 3).
[AS29780(R)09/94]
10-1/2 pica
art:0060688-A
Figure 3
[AS29785(R)08/91] 4. Insert loaded disc magazine into chamber unit with the
arrow on top of the disc magazine pointing toward the
changer (Figure 4). Make sure magazine is fully inserted
into changer.
[AS29790(R)09/94]
7-1/2 pica art:0060689-A
Figure 4
*
[AS29795(R)09/95]
NOTE: To remove one or more compact disc(s) from the disc
magazine, push the corresponding lever(s) to the back.
Disc(s) will partially come out for easy removal.
*
[AS29805(R)01/95] 5. Close unit by sliding changer panel door to the left.
