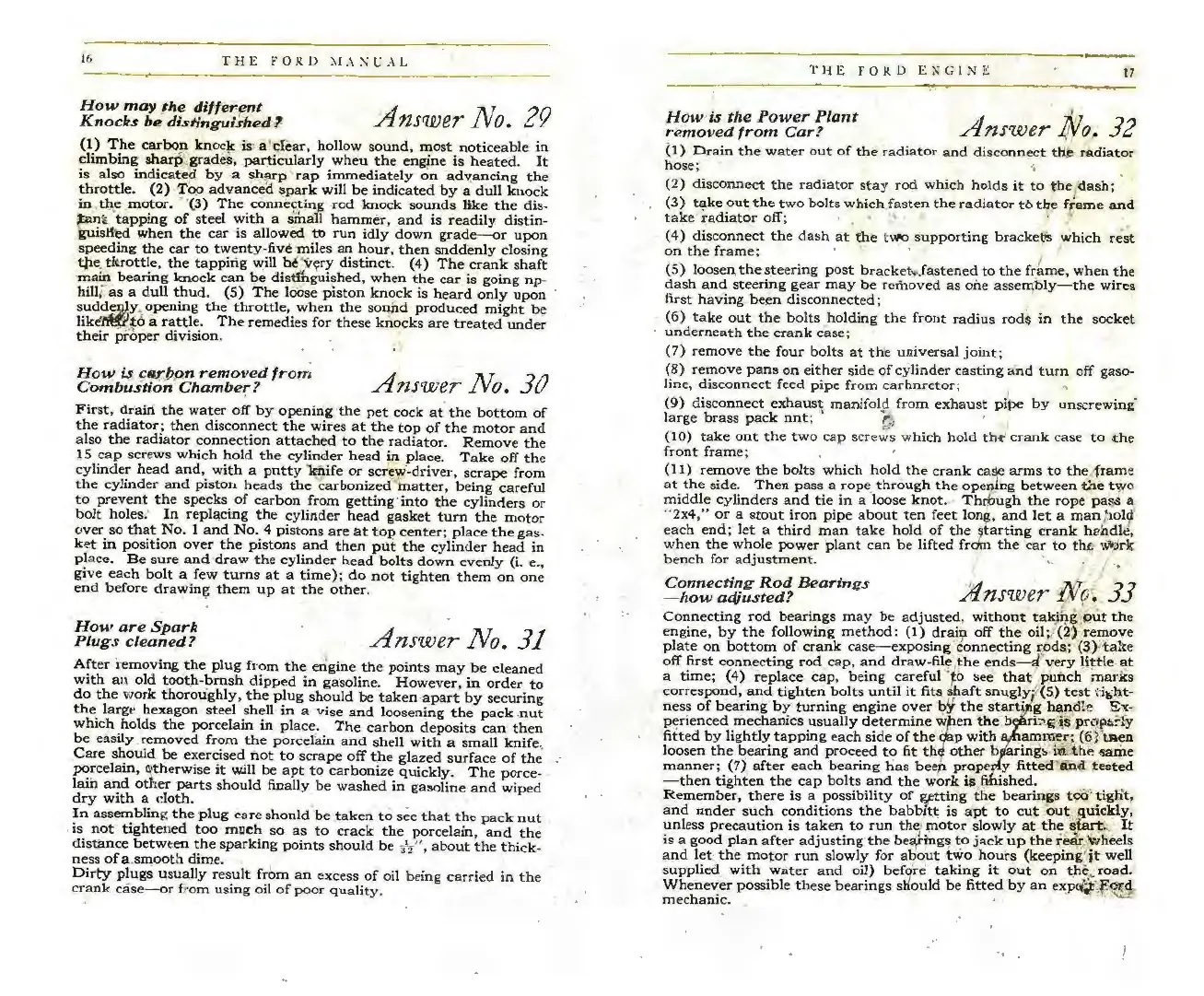

T H E f' 0 R I) :II .\ ~ 1.: .\ L
How may the differ-ent
Knocks be distinguished 1 Answer No. 29
(1) The carbon knoc~ u· a' clear, hollow sound, ~ost. noticeable in
climbing sharp grades, particularly when the eng~ne ts heated. It
is also indicated by a sharp rap immediately on ~ advancing the
throttle. (2) · Too advanceo spark will be indicated by a dull kno~k
in th ,e motor. ~ ' (3) The ronne~~ing rod knock so~ds lik~ th~ d_ts-
~n t tapping of steel with a small hammer, and ts readily. dtstm-
guisl1't!d when the car is allowed to run idly down grade -<>r upan
speedi ng the car to twenty-five miles an hour, then suddenly closing
t:pe
tkrottle the tapping will bi'V~ry distinct. (4) The crank shaft
main bearm'g knock can be distThguished, when the car is going up-
hill,' as a dull thud. (5) Th e loose piston knock is heard only upan
sudd~!!!Y . opening the throttle, when the sound produced mtght be
like'lM/t6 a r attle. The remedies for these knocks are treated under
their proper division.
How is c tUv , on removed from
Comb us tion Chombet:? Answer No. 30
First, drairl the water off by opening the pet cock at the bottom of
the radiator; then disconnect the wires at the top of the motor and
also the radiator connection attached to the radiator. Remo ve the
15 cap screws which hold the cylinder head ~n place . Take off the
cylinder head and, with a putty ~ife or screw ~ -driver, scrape from
the cylinder and piston he ads the carbonized matter, being careful
to prevent the specks of carbon from getting · into the cylinders or
bolt ho l es: In re placing the cylinder head gasket tum the motor
over so that No. 1 and No. 4 pistons are at top center; place the gas-
ket in pOsition over the pistons and then put the cylinder head in
pl ace. Be sure and draw the cylind er head bolts down even ly (i. e.,
give each bo lt a few turns at a time); do not tighte n them on one
end before drawine them up at the other.
How ore Spark A 7\ T J1
Plug ,r cleaned? nswer 1 VO.
After i· emov ing the plug from the engine the points may be cleaned
with an o ld toot.h-brush dipped in ga ·soline. However, if!, order to
do the w ork thoroughly, the plug shou ld be taken apart by securing
the lar gt' hexagon steel shell in a vise and l oosening the pack . nut
which holds the porcelain in place. T he carbon depasits can then
be easily re moved from the porcelain and shell with a small knife ..
Care should be exercised not to scrape off t.he glazed surface of the
pOrcelain, otherw i se it will be apt to carbonize quickly. The pOrce-
lain and other parts should finally be washed in gasoline and wiped
dry with a doth.
In assemblin~ the plug care should be taken to see that the pack nut
is not tightened too much so as to crack the parcelain, and the
distance betwten the sparking paints should be ;~" , about the thick-
ness of a . smooth dime.
Di rty plugs usually result from an excess of oil being carried in the
crank case-<>r fr om using oil of paor quality.
THE F O RD EX G I:-1 £
17
How is til e P ower Plant
removed from Cor? Answer Po . 32
(1) Drain the water out of the radiator and disconnect t~ radiator
hose;
(2) disconnect the radiator st ay rod which holds it to the
1
aash;
(3) take out the two bolts which.fasten the radiator tb tl")e ffame and
take radiator off; ., ' ' .
(4) disconnect the dash at the t woo supporting bracketiS which rest
on the frame; · · 1
(5) loosen_ the steering post bracket.,.Jastene~ to the frame, when _the
dash and steering gear may be r emoved as one asse"'bly-the wtres
first having been disconnected;
(6) take out the bolts holding the front radius rods in the socket
underneath the crank case;
(7) remove the four bolts at the universal joint;
(8) remove pans on either side of cylinder casting and turn off gaso- .
line,
disconnect feed pipe from carburetor;
(9) disconnect exhaus~ manifol~ f rom exhaust pipe by unscrewing '
large brass pack nut; fa '
(10) take out the two cap screws which hold th~ crank case to the
front fram e; .
(11) remove the bolts which hold the crank ca~ arms to the .-frame
at the side . Then pass a rope through the opening between tbe two
middle cylinders and tie in a loose knot. Th r6ug h the rope pass a
"2x 4," or a stout iron pipe about ten feet Jon~ , a!ld let a man ,:- 1019
each end· let a third man take hold of the ~tartmg crank h endlc,
when the' whole pawer plant can be lifted frclm the car to the v.'-:>rk
bench for adjustment.
Connecti'!g R od Bearings Answer No 33
- how adjust e d? , . •
Connecting rod bearings may be adjuste~ , without ~ak,ihg . Put the
engine, by the following method: (I) _dratp off t~e otl; (2) r emo~e
plate on bottom of crank case-expas mg connectmg rods; (3) ·tali:e
off first connecting r od cap, a nd draw-file , th e ends - 4 very ll ~tle - ~t
a time; (4) replace cap, being careful ' 1.o see that . puflch ~at·xs
correspand and tighten bolts until it fits sh aft snug ly · (5.) test nt;;ht-
ness of bea~ing by turn i ng engine over "t:tiJ the starti !t h~nd! e E?...:- .
perienced mechanics usually determine wlen ~ he b l.""f; i,S prOfl>:-!y
fitt
ed by lightly tapping each side of the p wtth ~mrn:er; (6 J tRen
l oosen the bearing and proceed tc;> fit th . other b artngl> nl .. the ..arne
manner; (7) after each bearing has beep p':opc _Y fitted II.Pd tested
-then tighten the cap bolts and the wo~k 18 shed: . . . •
Remember there is a pOssibility of ~ng the bearlll&S too ~gilt ,
and under 'such conditions the babbitt; is apt to cut out qmckly,
unless precaution is take n to run the motor ~lowly at th~ start-. It
is a good plan after adjusting the b~mgs to Jack up the rear ~ 'Wheels
and let the motor run slowly for about t wo hours (keepingJt well
supplied with water and oil) befq're taking it out on the _.. _ road.
Wh enever possible these bearings sHould be fitted by an expcQ , ~~
mechanic .
