been in an accident requiring the front end of the
vehicle to be repaired, the horizontal indicator
should be recalibrated by the service facility.

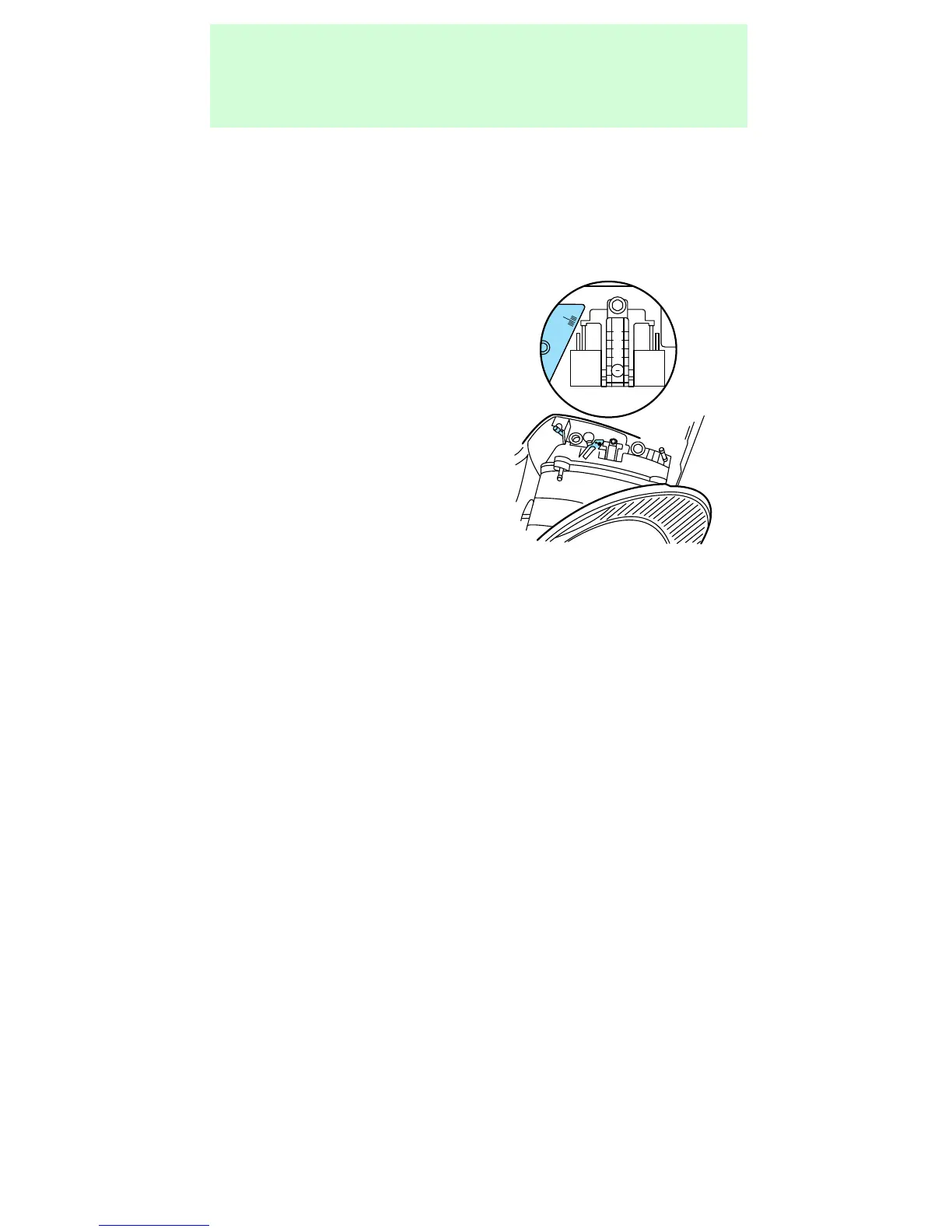

Horizontal aim adjustment
1. With the hood open,
locate the horizontal
indicator and adjusting
screw.
2.Usea7mmwrench to turn the horizontal
adjusting screw until the reference mark on the
reflector extension aligns with the “0” reference
mark on the horizontal indicator when viewed
directly from above.
3. When the horizontal aim has been adjusted, close
the headlamp access panel.
Adjusting the vertical aim
The numbers shown on the vial indicate beam
direction in degrees up or down.
1. Do not adjust the vertical aim until after adjusting
the horizontal aim.
