FUSE SPECIFICATION CHART

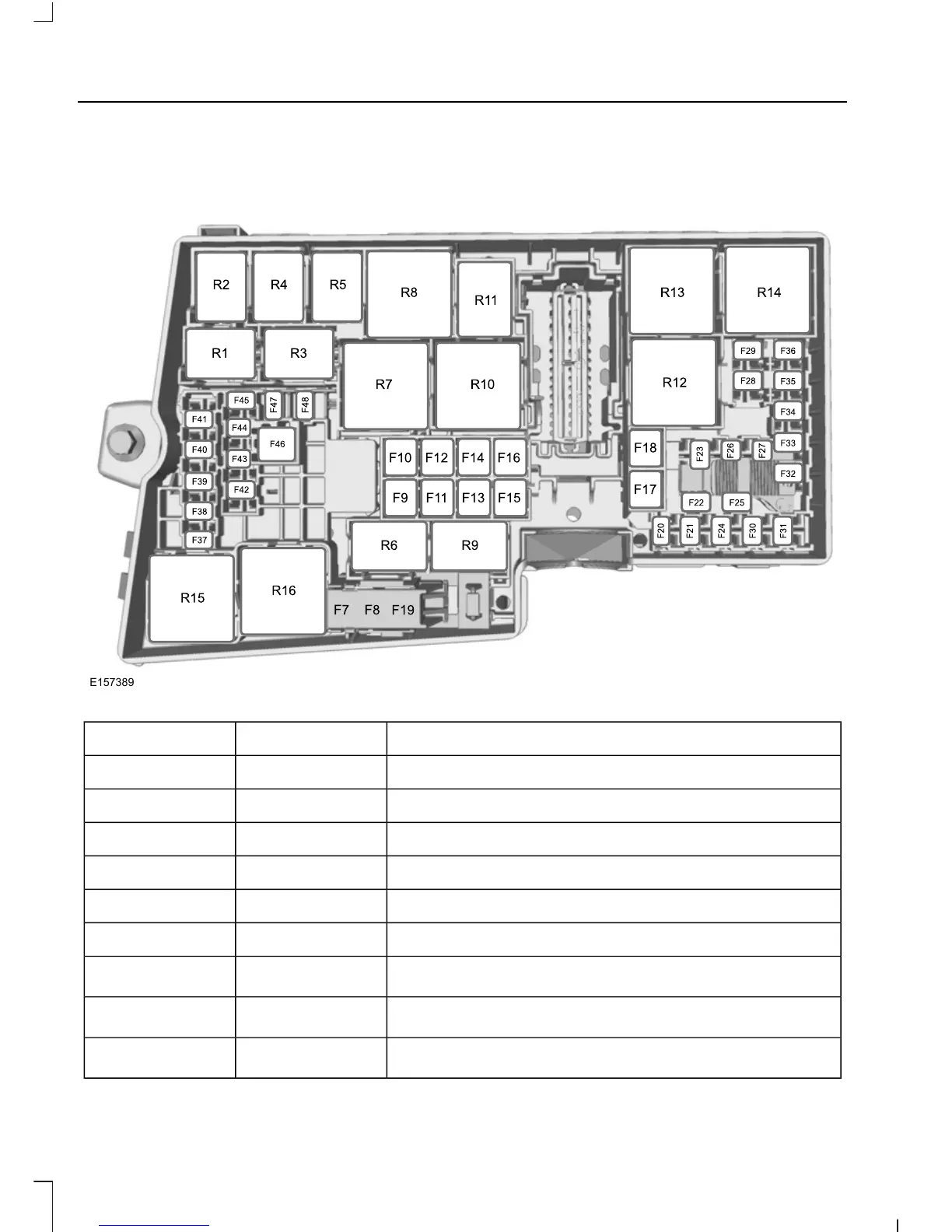

Engine Compartment Fuse Box

E157389

Circuits protectedFuse RatingFuse

Not used-F1

Not used-F2

Not used-F3

Not used-F4

Not used-F5

Not used-F6

Anti-lock brake system

40A

Stability control

30A

Heated rear window

30A

166

Tourneo Connect/Transit Connect (CHC) Canada/United States of America
