INSTALLATION PROCEDURE / STEP 1
1

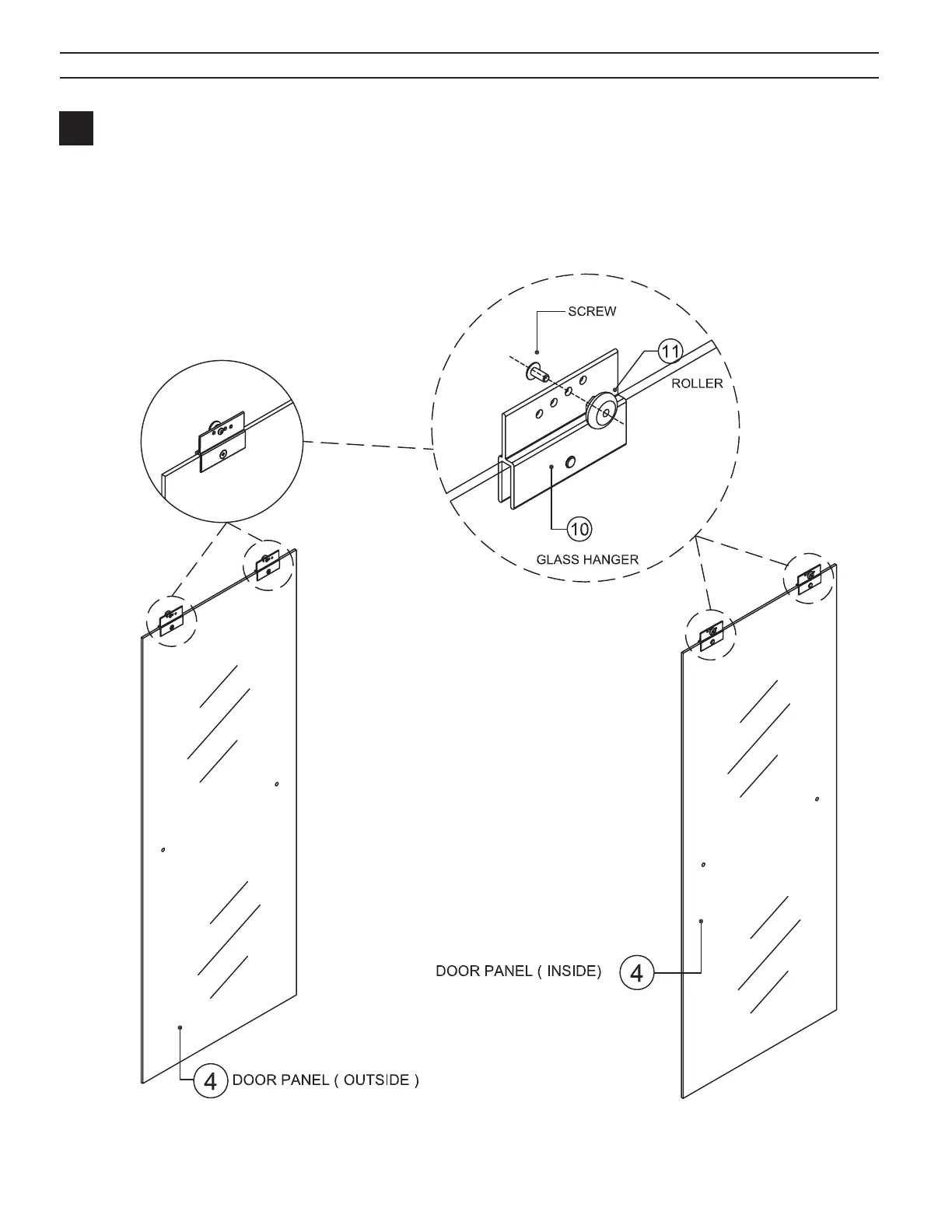

Attach rollers to hanger clips on both panels. Rollers should be mounted so that the head of the
mounting screw is on the same side of the panel as the screw head set into the hanger clip
(see inset drawing).
NOTE: The various holes in the hanger clip are used to fine tune the adjustment of the panel to make
up for walls that are slightly out of square or plumb. For best results start with all rollers in the second
hole from the top and then make adjustments as needed.
