The Forest DS-XL® LED WiFi Dimmer (model 591754X000) is a device designed to control LED strips, offering both on/off functionality and dimming capabilities from 1% to 100%. It integrates with a smartphone or tablet application, "Forest Connect," available on both Google Play and the Apple App Store, allowing for remote control and configuration via a 2.4GHz WiFi network.

Function Description:

The dimmer acts as an intermediary between a 24V power supply and an LED strip. It features a configuration button that serves multiple purposes:

Short press: Turns the LED strip ON.
Double short press: Turns the LED strip OFF.
5-second long press (when LED strip is blinking): Switches between Easy Connect mode and Access Point mode, which are different methods for connecting the dimmer to the WiFi network.
5-second long press (when LED strip is not blinking): Resets the dimmer to factory settings.
Power OFF-ON-OFF-ON-OFF-ON sequence: Also performs a factory reset, indicated by the LED strip starting to blink.

The device provides visual feedback through an LED strip indicator:

100% illumination: Indicates the dimmer is already paired with the app.
Fast blinking (twice per second): Signifies Easy Connect mode.
Slow blinking (once every 3 seconds): Indicates Access Point mode.
100% illumination after 3 minutes of blinking: Means the dimmer is not paired with the app.

Important Technical Specifications:

FOREST DS-XL® LED DIMMER:

Part #: 5917541000 (white) and 5917546000 (black)
Voltage: 24 Vdc
Max. LED power: 144W (24V-6A)
Functions: ON/OFF, 1-100% dimming
Dimensions: 86 x 46 x 16 mm (3.4" x 1.8" x 0.6")
Net weight dimmer: 30 gr.
Operating temperature: 0 - 40°C (32 - 104°F)
Relative humidity: 10 - 80%
Max. usable height (above sea level): 2000m (6561ft.)
Protection class: IP20
Input: DC 2.1/5.5mm female
Output: DC 2.1/5.5mm male
Certification & Marking: CE

FOREST DS-XL® LED STRIP (model 5917503055):

Part #: 5917503055
Width: 8mm
LEDs/meter: 120
Kelvin: 3000k (warm-white)
Power: 10 W/m
Flux: 100 lm/W
CRI: 90

Usage Features:

The installation process involves assembling the DS-XL LED rail and connecting the dimmer as per the provided diagrams. The "Forest Connect" app is crucial for setup and control. Users must ensure their smartphone or tablet is connected to a 2.4GHz WiFi network during configuration, as the dimmer only supports this frequency. The app guides users through the pairing process.

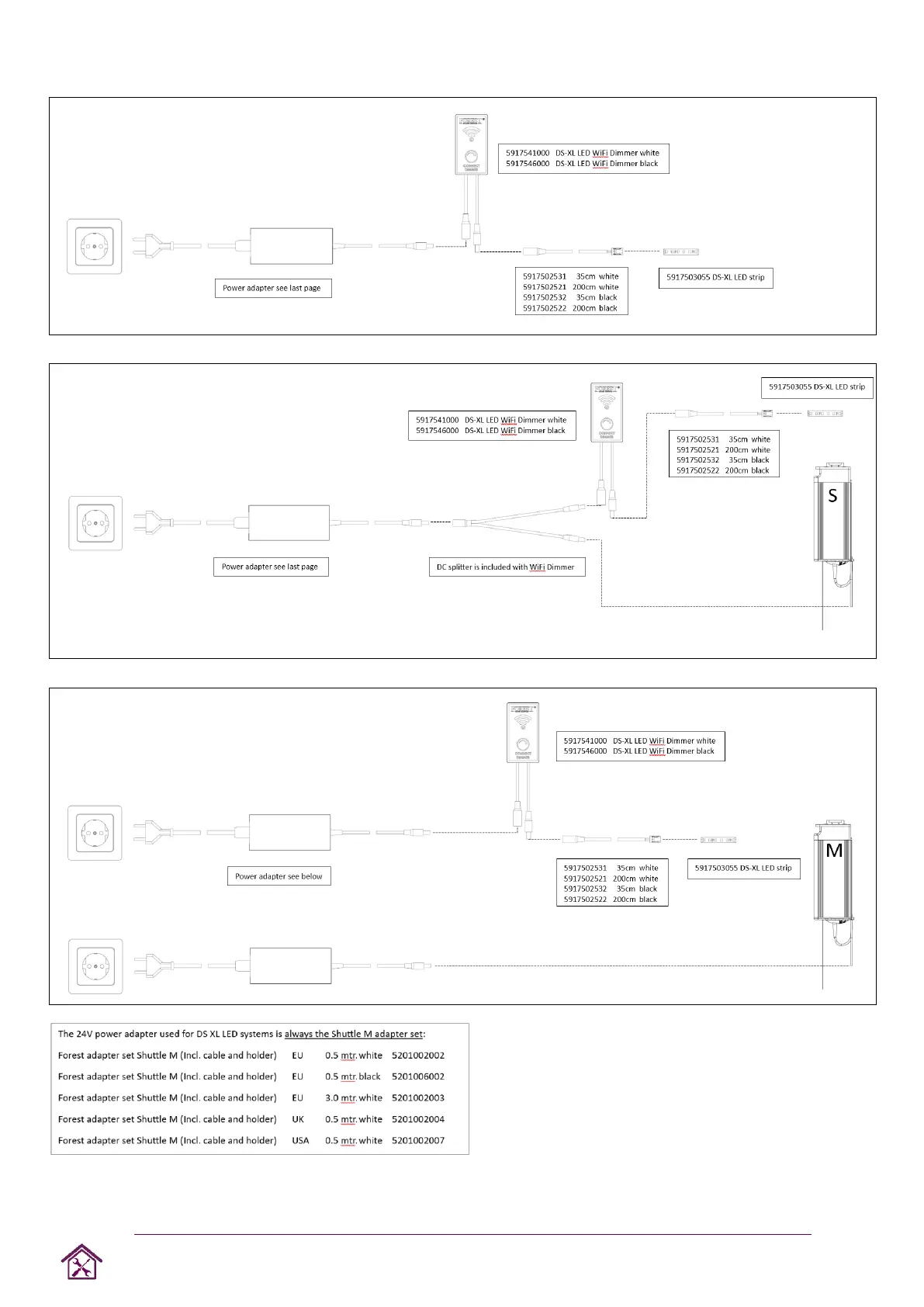

The manual illustrates various configurations for the DS-XL LED track:

Without motor: Simple setup with the dimmer and LED strip.
With Shuttle S motor (<40kg curtain weight): Integrates the dimmer with a Shuttle S motor for curtain control. A DC splitter is included with the WiFi Dimmer for this setup.
With Shuttle M motor (>40kg curtain weight): Integrates the dimmer with a Shuttle M motor for heavier curtains.

For all configurations, the 24V power adapter used for DS XL LED systems is always the Shuttle M adapter set. Several adapter sets are listed with different cable lengths and colors, suitable for EU, UK, and USA regions.

Maintenance Features (Troubleshooting):

The manual provides a troubleshooting guide for common issues:

LED strip not lighting up after connection:
- Check if the LED strip lights up when the dimmer is removed (to verify the strip and its connector).
- Ensure the power adapter, WiFi dimmer, and LED strip are correctly connected.
- Disconnect power for 5 seconds, then reconnect.
- If the LED strip blinks, follow in-app instructions.
- If the LED strip still doesn't light up, cycle the power 3 times (OFF-ON-OFF-ON-OFF-ON) to initiate blinking and then follow in-app instructions.
WiFi dimmer not connecting to the Wi-Fi network:
- Re-follow in-app instructions.
- Verify the correct WiFi network is selected.
- Ensure the password is entered correctly.
- Confirm the WiFi dimmer is within range of the WiFi router.
- Confirm the network is 2.4GHz (5GHz is not supported).
- Try connecting in Access Point mode.
Hard reset to factory settings: Cycle the power 3 times (OFF-ON-OFF-ON-OFF-ON).
LED strip blinking slowly instead of quickly (or vice versa): Press the configuration button for 5 seconds.

Important Safety and Usage Notes:

The Forest DS-XL LED dimmer is not suitable for use in damp areas like bathrooms or outdoors.
It is crucial to follow the instructions in the document for safety.
The product should only be used for its intended purpose.
For correct and safe operation, the complete curtain system, including the curtain rail and 24V adapter, must be assembled and installed with original Forest Group Nederland B.V. parts.
Forest Group Nederland B.V. is not responsible for damages to property or persons, defects, labor costs, service, reinstallation, transport, packaging, or return costs resulting from incorrect use or failure to read the installation guide.
The warranty is void if these conditions are not met.
Children should not play with the system or controls. Keep remote controls out of reach of children.
Regularly check the system for imbalance, wear, or damage. Do not use if repair or adjustment is needed.

For technical support and troubleshooting, users are directed to visit www.forestgroup.com/wifisupport.
