Formula MOD - Hardware Installation Procedure

6

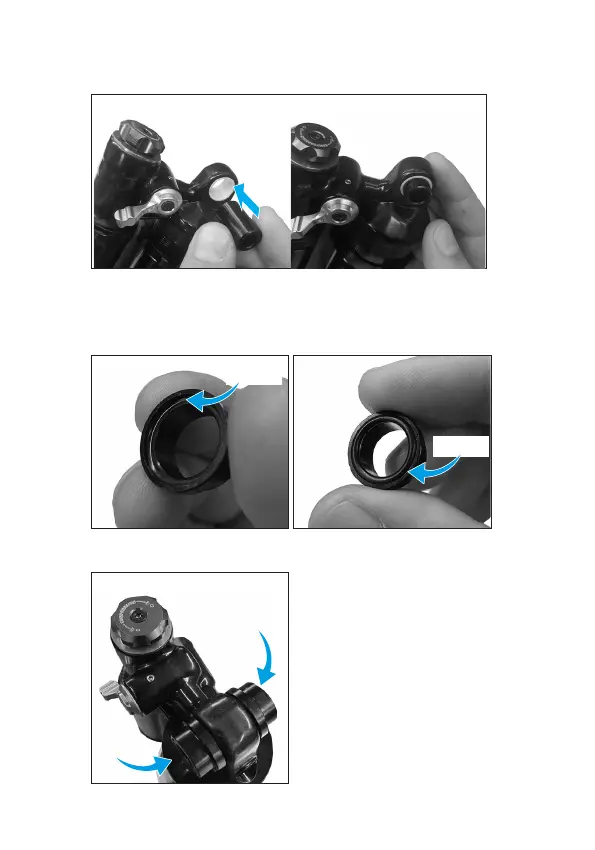

INSTALLATION PROCEDURE (do the same also for the opposite part of the shock):
1) Insert the pin into the eye of the shock (figure B);
2) Insert Orings in the seats of the spacers: apply Formula grease on the OR seat (figure
C), then insert and check the homogeneous adhesion to the surface of the groove.
Then apply Formula grease on the OR too (figure D);
3) Inserting spacers on mounted pin (figure E);
End procedure
Fig. B
Fig. C Fig. D
Fig. E
GREASE
GREASE
