10 11
2
2
3
4
5
Slide Forward
Install M4 Shoulder Screw
Unlocked
Locked

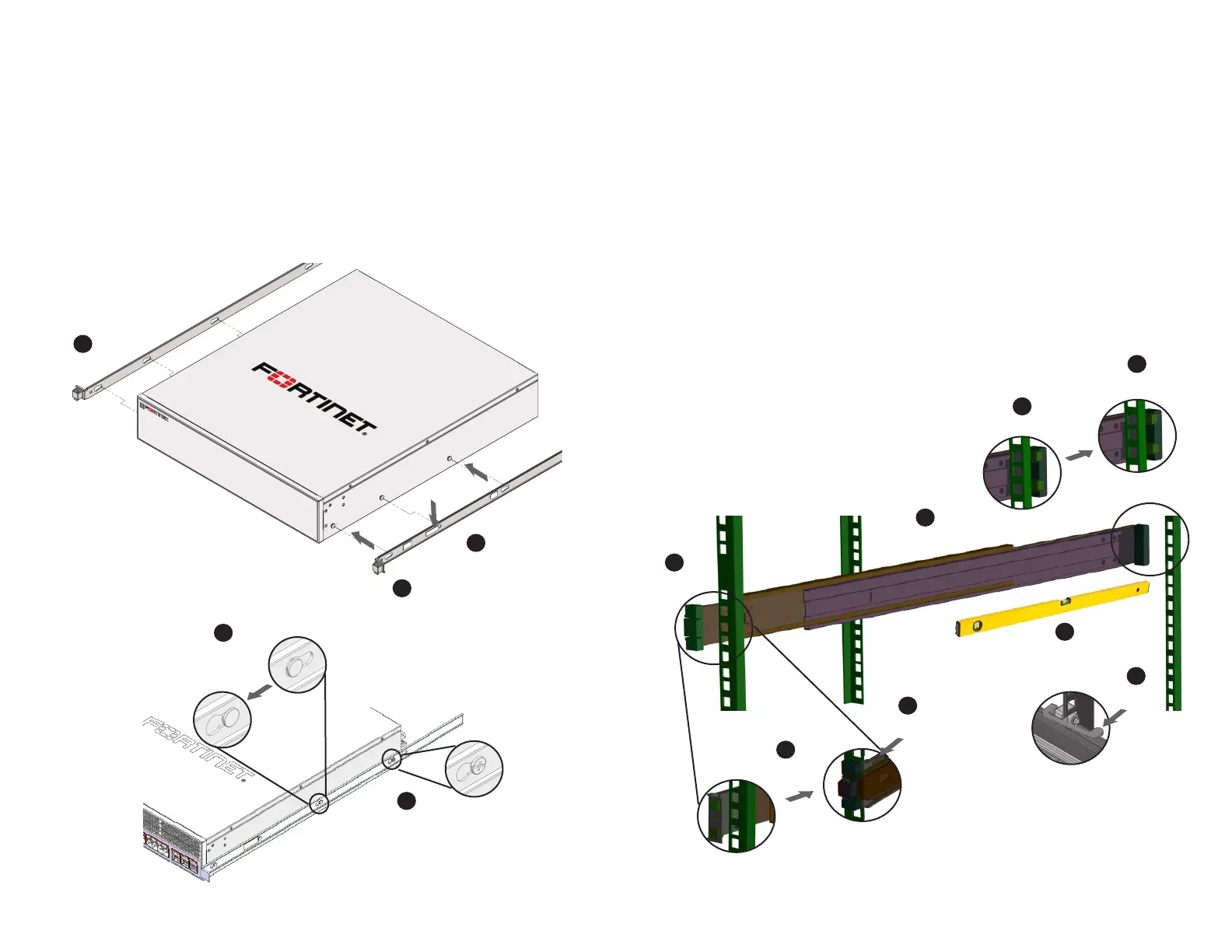

Attach the Inner Rails to the Appliance
1. Detach the inner rail from the rail assembly by pressing the lock out tab
2. Place an inner rail against a side of the appliance
3. Align the inner rail keyholes with the appliance pins
4. Slide the rail towards the front of the appliance until the metal clip locks into
place
5. For inner rails with 5 keyholes and a chassis with 3 pins and a thread hole, use
the provided M4 shoulder screw to secure the rail to the appliance
6. Repeat steps 1 to 5 for the remaining inner rail
Align Rail
Metal Clip
Inner Rail
Inner Rail
Attach the Outer Rails to the Rack
Front Outer Rail
1. Place an outer rail against a side of the rack
2. Align the front outer rail with the front of the rack
3. Push the front outer rail mounting pins into the rack post holes
4. Lock the locking latch to safely secure the front outer rail to the post
Rear Outer Rail
5. Extend the rear outer rail just past the rack post
6. Level the rail and align the mounting pins
7. Push the rear mounting pins into the rack post holes
8. Lock the locking latch to safely secure the rear outer rail to the post
9. Repeat steps 1 to 8 for the remaining outer rail
1
Right Rail
Extend Rail
Mount Rail
Lock Latch
Front Rail
Mount Rail
Lock Latch
2
3
4
6
5
7
8
Align & Level
To Next Page
