this
input
pin
is
at
"H"
level.
In
other
words,
the
BCD
codes,
RA
through
R
d
representing
the
number
that
is
output,
is
stored
in
the
register.
EQUAL
:
A
signal
is
output
here
whenever
the
values
of
the
register
and
counter
agree
.
5)
Area
output
for
ZERO
RTN
As
the
specifications
for
this
system
are
as
presented
in
4-1,
item
3,
above,
outputs
for
middle
speed
area
and
low
speed
area
are
required.
The
middle
speed
area
are
set
to
±1
minute
and
the
low
speed
area
to
±10
seconds.
The
circuit
for
this
operation
is
shown
in
Fig.
4.6
and
the
timing
chart
in
Fig.
4.7.
±10
second
is
detected
by
U31
and
±1
minute
is
output
by
storing
one
minute
in
the
U23
memory,
then
setting
the
U26-13
flip
flop
by
the
equal
output
from
U23-23.

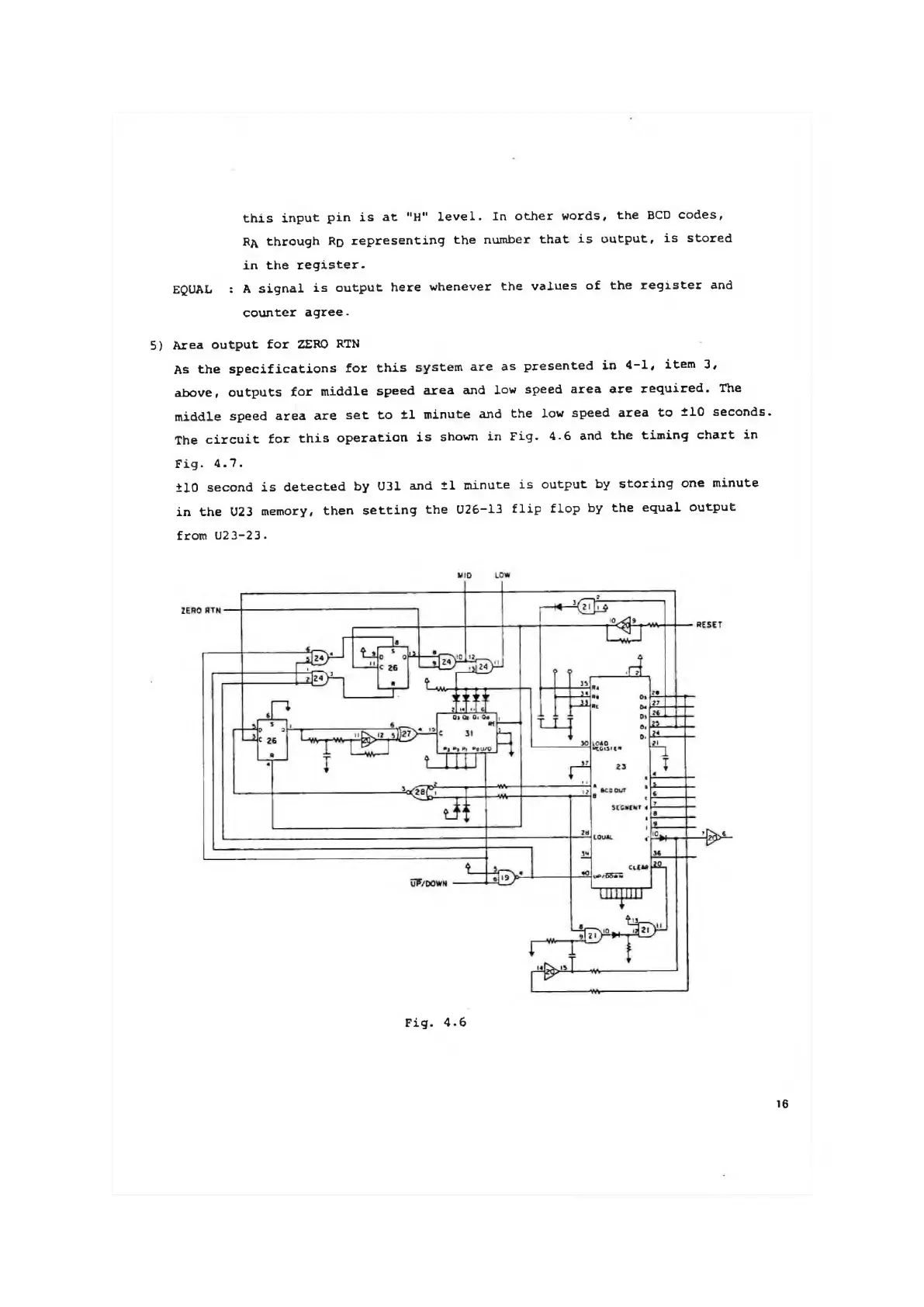

Fig.
4.6
16
