b)

Put

the

deck

in

the

PLAY

mode,

and

positioning

the

scale

as

illustrated,

slowly

draw

it

in

direction

opposite

the

capstan

until

the

pinch

roller

stops

rotating.

NOTE;

Insert

a

piece

of

opaque

paper

between

the

LED

and

sensor

so

as

to

deactivate

the

Tape

Presence

Sensor.

c)

The

spring

scale

should

indicate

2.5kg

t

3kg

(5.51bs

6.61bs).

d)

If

the

reading

is

off

specification,

loosen

the

screw

securing

the

plunger

solenoid

bracket

and

shift

the

solenoid

in

direction

of

arrow

shown

in

Fig.

5.2.

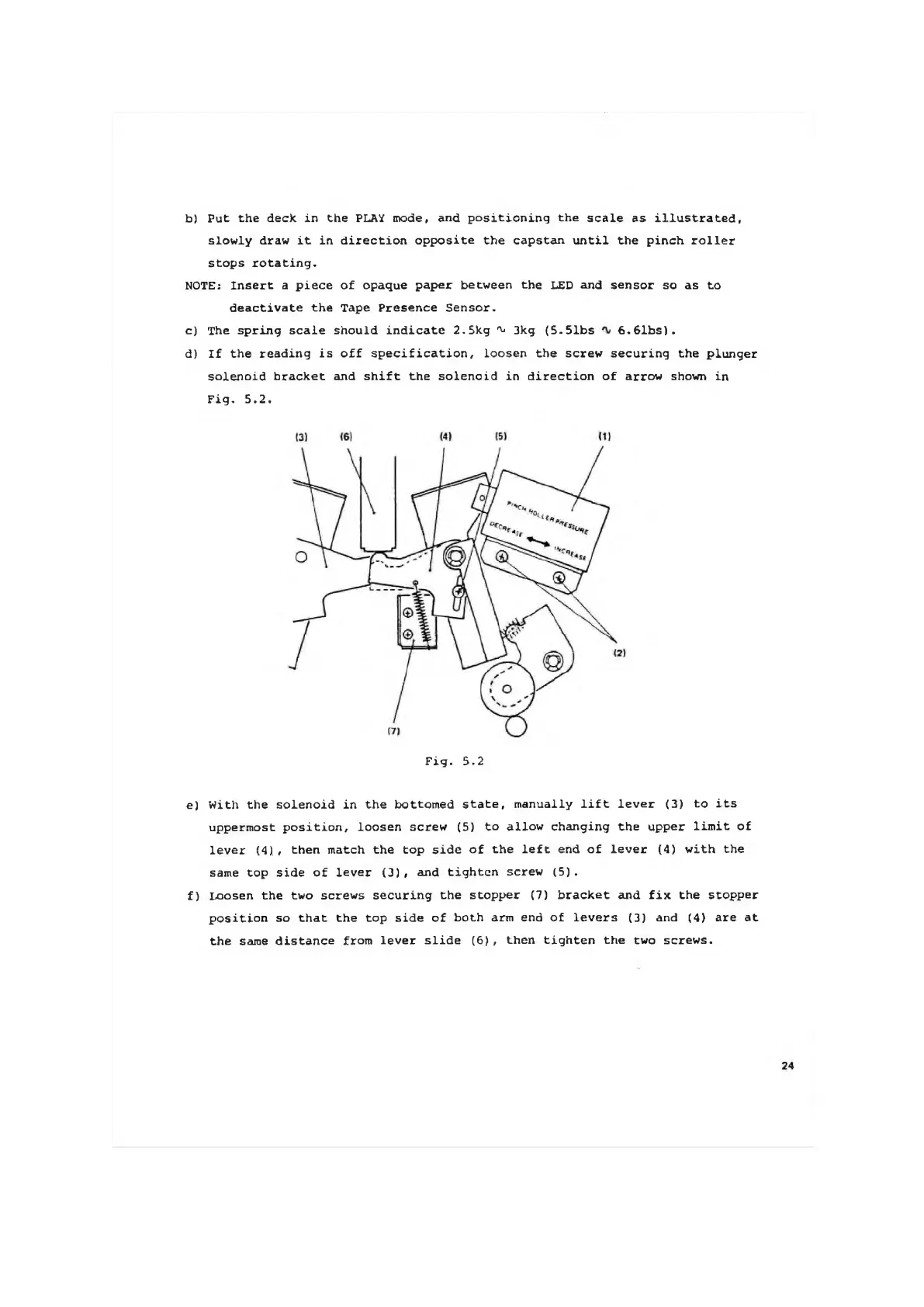

Fig.

5.2

e)

With

the

solenoid

in

the

bottomed

state,

manually

lift

lever

(3)

to

its

uppermost

position,

loosen

screw

(5)

to

allow

changing

the

upper

limit

of

lever

(4),

then

match

the

top

side

of

the

left

end

of

lever

(4)

with

the

same

top

side

of

lever

(3),

and

tighten

screw

(5).

f)

Loosen

the

two

screws

securing

the

stopper

(7)

bracket

and

fix

the

stopper

position

so

that

the

top

side

of

both

arm

end

of

levers

(3)

and

(4)

are

at

the

same

distance

from

lever

slide

(6),

then

tighten

the

two

screws.
