If
the
measurements
do
not
comply
with
the
specs,
brake
torque
is
adjusted
by
changing
the
hook
position
of
spring
(4).
Brake
torque
can
be
changed
in
five
steps
by
different
combinations
of
the
hook
positions
for
spring
(4)
as
listed
below;
Maximurn
tension
c
&
a'
Strong
c
6
b
1
Standard
tension
b
S
b
1
Weak
a
&
b'
Minimum
tension
a
s
c
1
151
n>
M
>
|
j

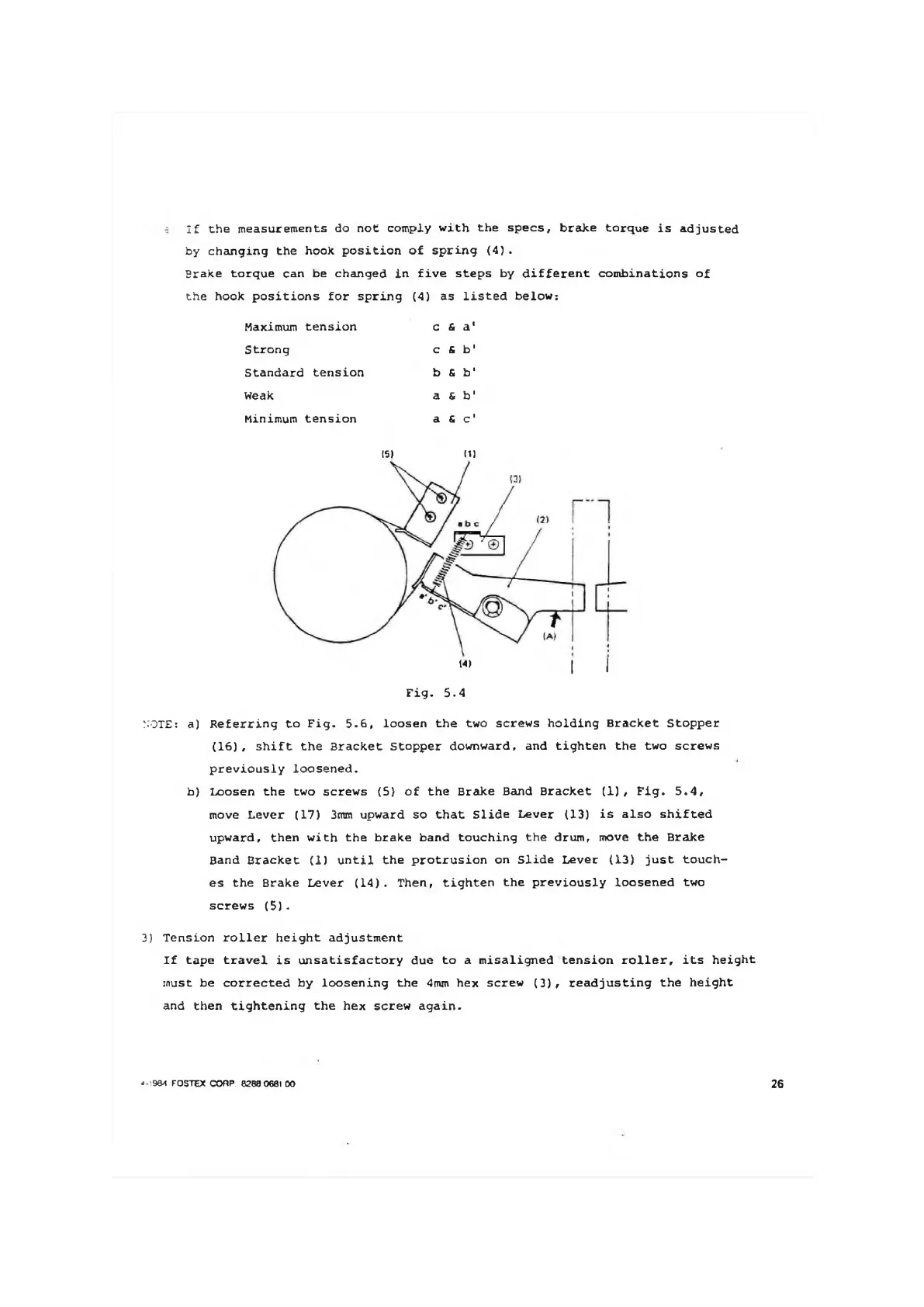

Fig.
5.4
MOTE:
a)
Referring
to
Fig.
5.6,
loosen
the
two
screws
holding
Bracket
Stopper
(16),
shift
the
Bracket
Stopper
downward,
and
tighten
the
two
screws
previously
loosened.
b)
Loosen
the
two
screws
(5)
of
the
Brake
Band
Bracket
(1),
Fig.
5.4,
move
Lever
(17)
3mm
upward
so
that
Slide
Lever
(13)
is
also
shifted
upward,
then
with
the
brake
band
touching
the
drum,
move
the
Brake
Band
Bracket
(1)
until
the
protrusion
on
Slide
Lever
(13)
just
touch
es
the
Brake
Lever
(14).
Then,
tighten
the
previously
loosened
two
screws
(5).
3)
Tension
roller
height
adjustment
If
tape
travel
is
unsatisfactory
due
to
a
misaligned
tension
roller,
its
height
must
be
corrected
by
loosening
the
4mm
hex
screw
(3),
readjusting
the
height
and
then
tightening
the
hex
screw
again.
«-1981
FOSTEX
CORP.
82BB068I
00
26
