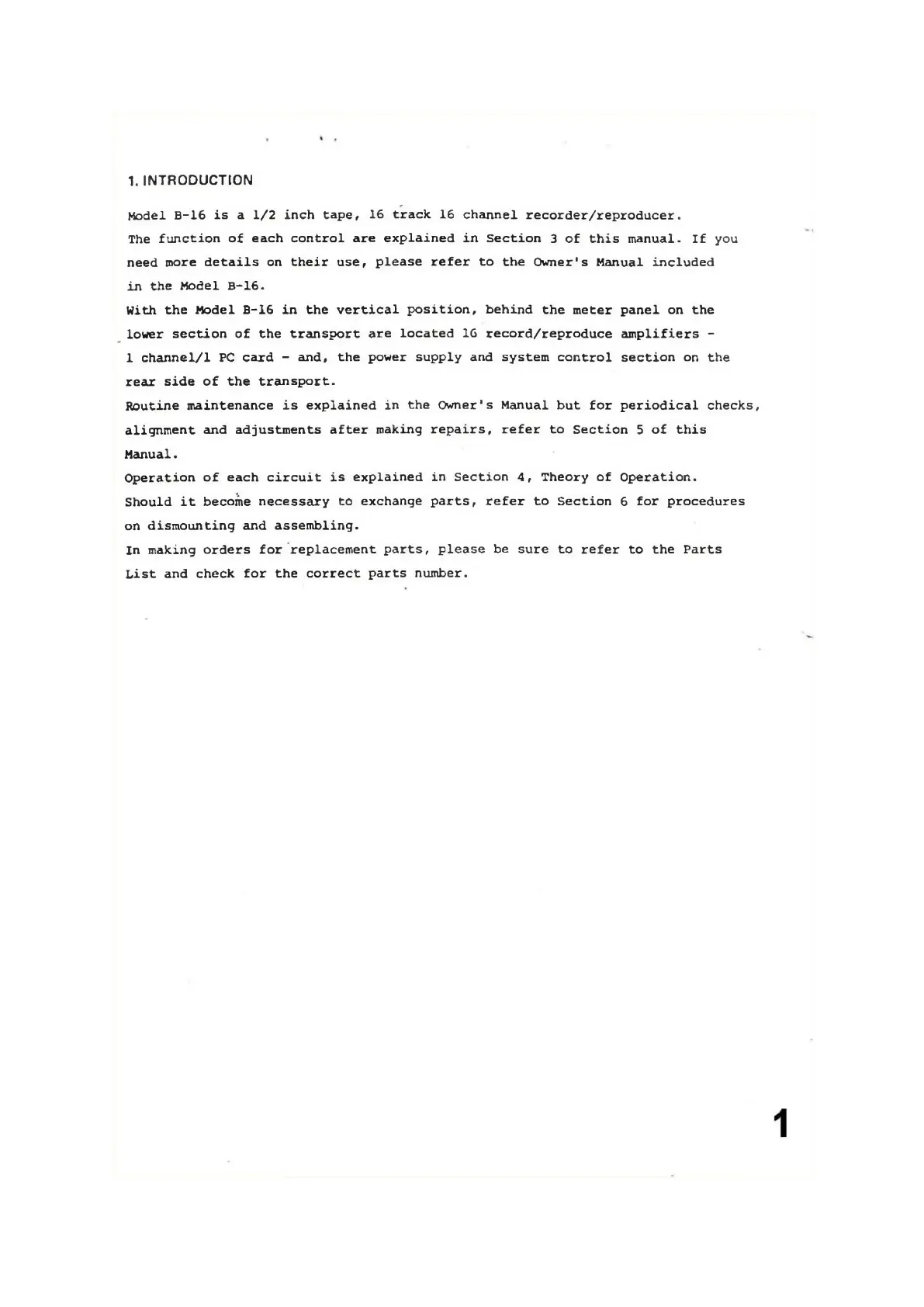

1.

INTRODUCTION

Model

B-16

is

a

1/2

inch

tape

,

16

track

16

channel

recorder/reproducer

.

The

function

of

each

control

are

explained

in

Section

3

of

this

manual.

If

you

need

more

details

on

their

use,

please

refer

to

the

Owner's

Manual

included

in

the

Model

B-16.

With

the

Model

B-16

in

the

vertical

position,

behind

the

meter

panel

on

the

lower

section

of

the

transport

are

located

16

record/reproduce

amplifiers

-

1

channel/1

PC

card

-

and,

the

power

supply

and

system

control

section

on

the

rear

side

of

the

transport.

Routine

maintenance

is

explained

in

the

Owner's

Manual

but

for

periodical

checks,

alignment

and

adjustments

after

making

repairs,

refer

to

Section

5

of

this

Manual

.

Operation

of

each

circuit

is

explained

in

Section

4,

Theory

of

Operation.

Should

it

become

necessary

to

exchange

parts,

refer

to

Section

6

for

procedures

on

dismounting

and

assembling.

In

making

orders

for

replacement

parts,

please

be

sure

to

refer

to

the

Parts

List

and

check

for

the

correct

parts

number.
