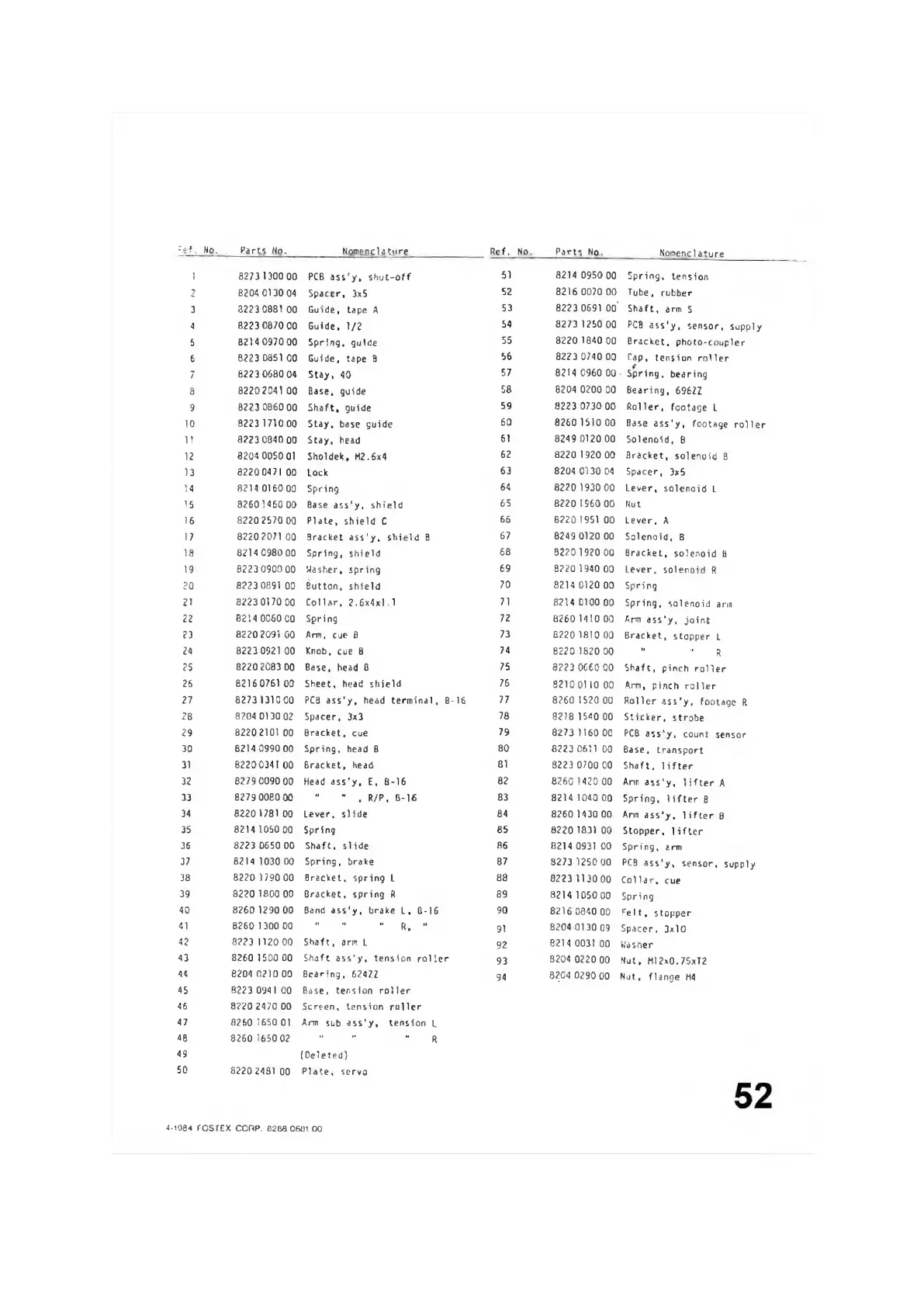

: ef. Ho.
Parts Ho.
Nomenclature
Ref. No.
Parts No.
Nomenc 1 atu re
1
8273 1300 00
PCB ass'y. shut-off
51 8214 0950 00
Spring, tension
2
8204 0130 04
Spacer, 3x5
52 8216 0070 OO
Tube, rubber
3
8223 088! 00
Guide, tape A
53
8223 0691 OO'
Shaft, arm S
4
8223 0870 00 Guide. 1/2
54 8273 1250 00
PCB ass ’ y, sensor, supply
5
8214 0970 00
Spring, guide
55 8220 1840 00
Bracket, photo-coupler
6
8223 0851 00
Guide, tape 8
56 8223 0740 00
Cap, tension roller
7
8223 0680 04
Stay, 40
57 8214 0960 00
■ Spring, bearing
a
82202041 00
Base, guide
58 8204 0200 00
Bearing, 696ZZ
9
8223 0860 00
Shaft, guide
59
8223 0730 00
Roller, footage L
10
8223 1710 00
Stay, base guide
60 8260 1510 00
Base ass'y, footage roller
11 8223 0840 00
Stay, head
61 8249 0120 00
Solenoid, B
12 8204 0050 01
Sholdek. M2.6x4
62
8220 1 920 00
Bracket, solenoid 0
13
8220 0471 00
Lock
63
8204 0130 04
Spacer, 3x5
14 8214 0160 00
Spring
64
8220 1930 00 Lever, solenoid L
15
82601460 00
Base ass'y, shield
65
8220 I960 00
Nut
16
8220 2570 00
Plate, shield C
66 8220 1951 00
Lever, A
17
8220 2071 00 Bracket ass ’ y, shield B
67 8249 0120 00
Solenoid, B
18
8214 0980 00
Spring, shield
68
8220 1920 00
Bracket, solenoid B
19
8223 0900 00 Washer, spring
69 8220 1940 00
Lever, solenoid R
20
8223 0891 00
Button, shield
70 8214 0120 00
Spring
21 8223 0170 00
Collar, 2.6x4x1.1
71
8214 0100 00
Spring, solenoid arm
22
8214 0060 00 Spring 72
8260 1410 00
Arm ass ’ y, joint
23
8220 2091 00
Arm, cue B
73
8220 1810 00
Bracket, stopper L
24
8223 0921 00
Knob, cue B
74
8220 1820 00
" " R
25
8220 2083 00
Base, head B
75
8223 0660 00 Shaft, pinch roller
25
8216 0761 00
Sheet, head shield
76
8210 0110 00
Arm. pinch roller
27 8273 131000 PCB ass'y, head terminal, B-16 77 8260 1520 00
Roller ass ’ y, footage R
28 8204 0130 02
Spacer, 3x3
78
8218 1540 00 Sticker, strobe
29
8220 2101 00
Bracket, cue
79
8273 1160 00
PCB ass'y, count sensor
30
8214 0990 OO Spring, head B 80
8223 0611 00
Base, transport
31
82200341 00 Bracket, head
Bl
8223 0700 00
Shaft, lifter
32 8279 0090 00 Head ass ’ y, E, B-16
82
8260 1420 00 Ann ass'y, lifter A
33 8279 0080 00 " “ . R/P. 8-16
83
821 4 1040 00
Spring, lifter B
34 8220 1781 00
Lever, slide
84
8260 1430 00
Ann ass'y, lifter B
35
8214 1050 00
Spring
85 8220 1831 09
Stopper, lifter
36 8223 0650 00
Shaft, slide
86
8214 0931 00
Spring, arm
37 8214 1030 00
Spring, brake
87
8273 1.250 00
PCB ass'y, sensor, supply
38
8220 1790 00
Bracket, spring L
88
8223 1130 00
Collar, cue
39 8220 1800 00 Bracket, spring R
89
8214 1050 00
Spring
40
8260 1290 00
Band ass ’ y, brake L, B-16
90
8216 0840 00
Felt, stopper
41
8260 1 300 00
" " " R, “
91
8204 0130 09
Spacer, 3x10
42
8223 1120 00 Shaft, arm L
92
8214 0031 00
Washer
43
8260 1500 00 Shaft ass ’ y, tension roller
93
8204 0220 00
Hut. MI2x0.75xT2
44
8204 02)0 00
Bearing, 624ZZ
94
8204 0290 00
Nut, flange H4
45
8223 0941 00 Base, tension roller
46
8220 24 70 00
Screen, tension roller
47
8260 1650 01
Arm sub ass'y, tension L
48 8260 1650 02
" " " R
49
(Deleted)
50
8220 2481 00
Plate, servo
4-1904 FOSTEX CORP. 0208 0601 00
