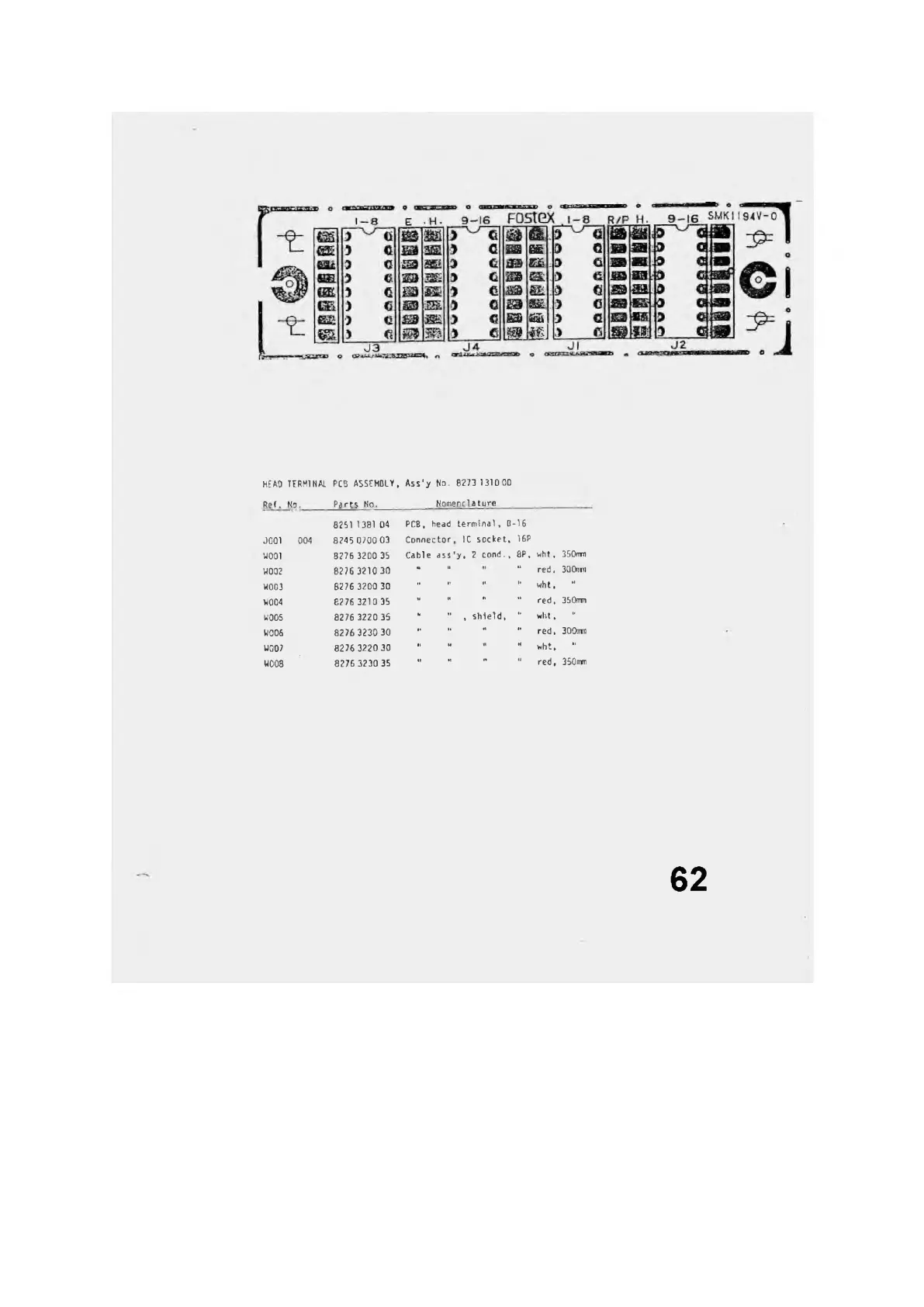

HEAD TERMINAL PCB ASSEMBLY , Ass'y Ha. 8273 1310 00
Ref. N o . Parts No. Nomenclature
3251 1381 04
PCB, head
terminal, B-16
J001 004
8245 Q7OOO3
Connector
IC socket, 16P
wool
8276 3200 35
Cable ass
y, 2 cond., 8P, wht, 350mm
W002
8276 3210 30
“ n
“ red , 3Q0nrt
W003
8276 3200 30
>■ ii
" " wht, “
W004
8276 3210 35
II W
" " red, 350mm
W005
8276 3220 35
H "
* shield, " wht, "
W006
8276 3230 30
■> H
” " red, 300nrn
woo?
8276 3220 30
H W
” rt wht, “
W008
8276 3230 35
II H
* " red, 350mm
62
