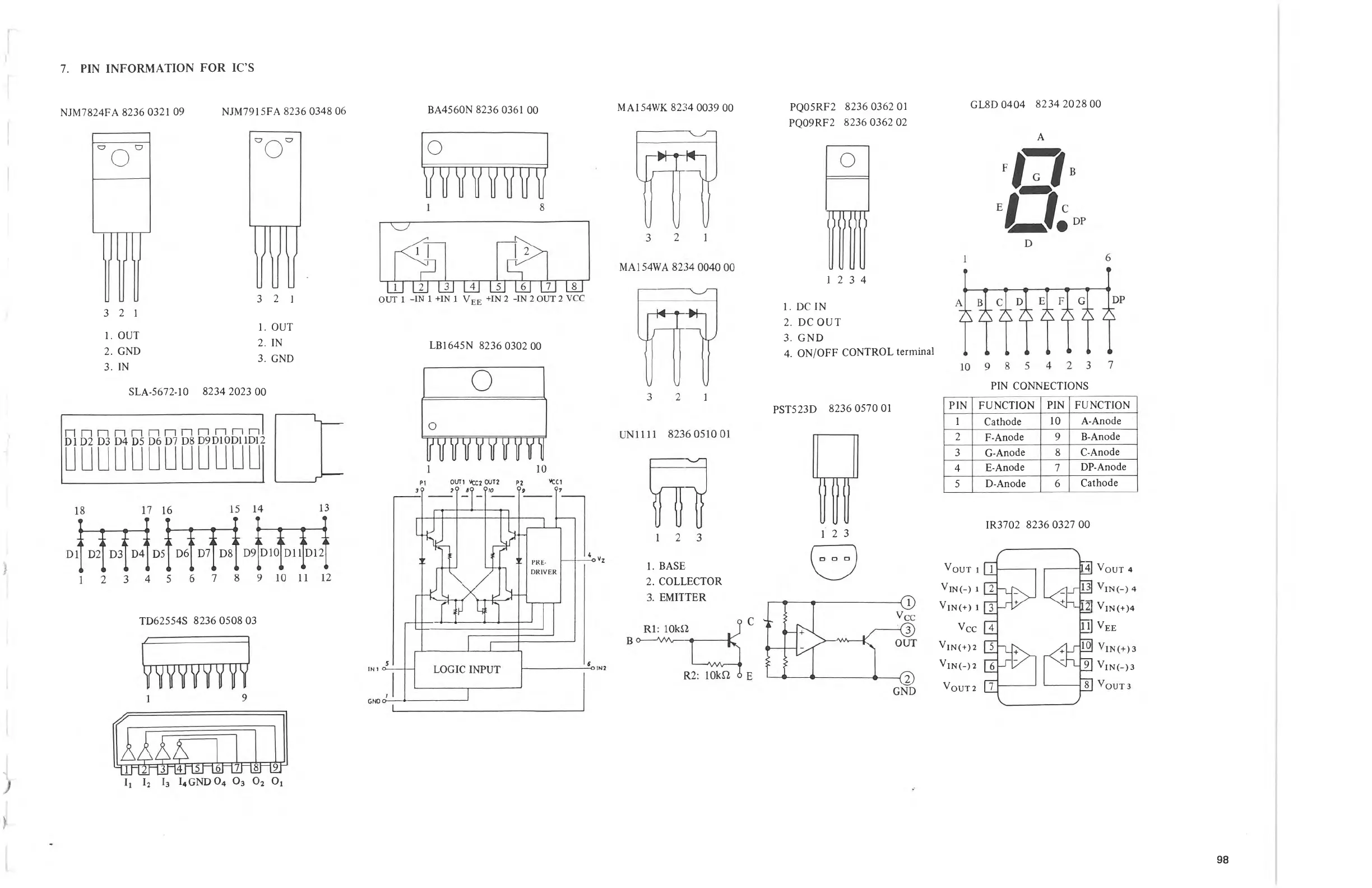

7. PIN INFORMATION FOR IC ’ S
NJM7824FA 8236 0321 09
NJM7915FA 8236 0348 06
PQ05RF2 8236 0362 01
GL8D0404 8234 2028 00
PQ09RF2 8236 0362 02
BA4560N 8236 0361 00
3 2 1
1. OUT
2. GND
3. IN
3 2 1
1. OUT
2. IN
3. GND
SLA-5672-10 8234 2023 00
LB1645N 8236 0302 00
TD62554S 8236 0508 03
MA154WK 8234 0039 00
1. BASE
2. COLLECTOR
12 3 4
PST523D 8236 0570 01
1 2 3
1. DC IN
2. DC OUT
3. GND
4. ON/OFF CONTROL terminal
A
PIN CONNECTIONS
PIN FUNCTION
PIN FUNCTION
1
Cathode
10
A-Anode
2
F-Anode 9
B-Anode
3
G-Anode 8
C-Anode
4
E-Anode
7
DP-Anode
5
D-Anode 6
Cathode
IR3702 8236 0327 00
Ï4] V qu T 4
3 V IN (_)3
V OUT
V IN(-)
V IN(+)
V CC
V IN(+)2
V IN(-)2
V OUT2
-Î2] V IN ( + )4
n] v EE
98
