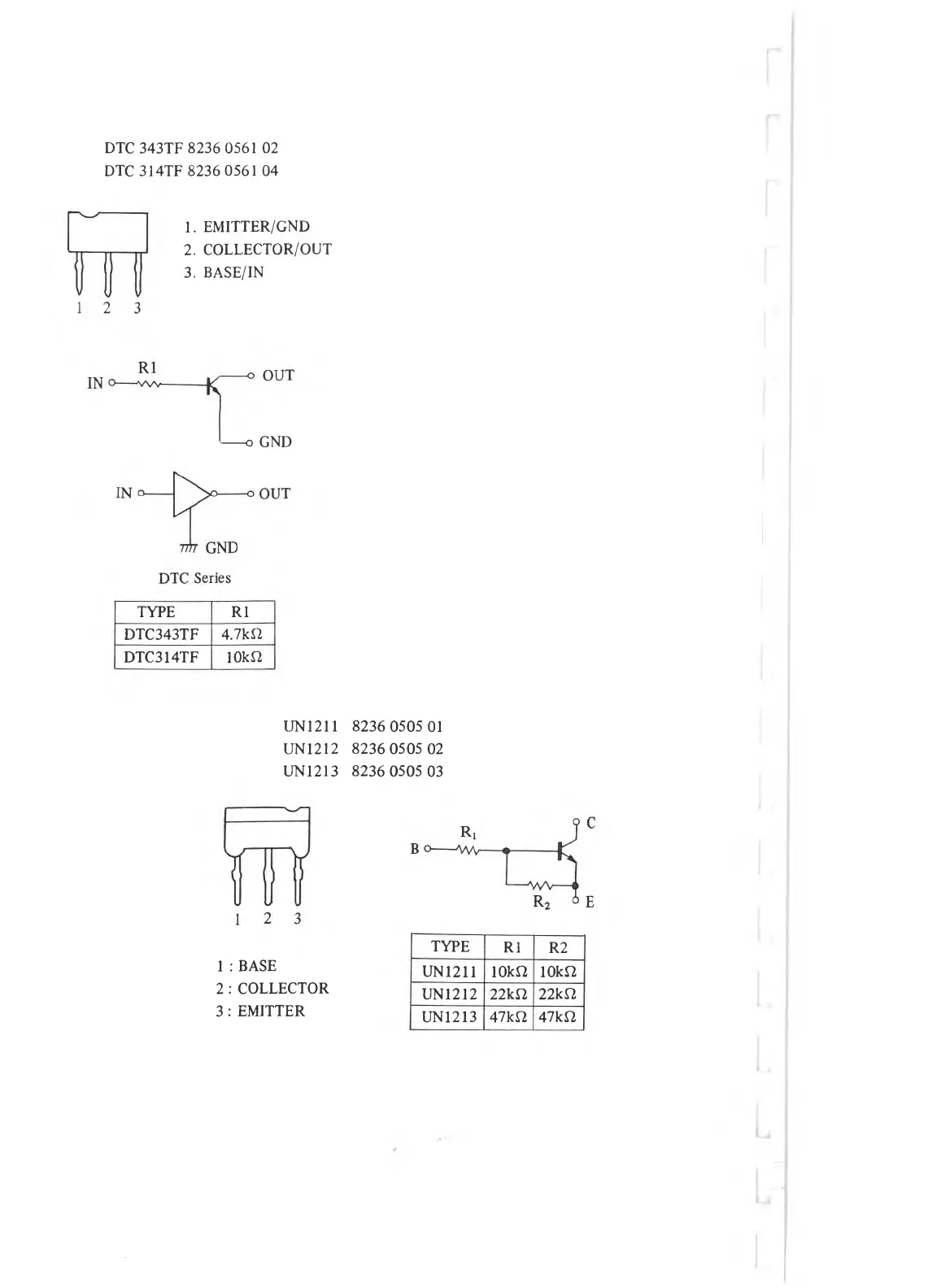

Fostex G16 - Page 123

DTC 343TF 8236 0561 02
DTC 314TF 8236 0561 04
1. EMITTER/GND
2. COLLECTOR/OUT
3. BASE/IN
----- o GND
TYPE RI
DTC343TF
4.7kft
DTC314TF
10kí2
UN1211 8236 0505 01
UN1212 8236 0505 02
UN1213 8236 0505 03
1 : BASE
2 : COLLECTOR
3 : EMITTER
TYPE
RI
R2
UN1211
lOkQ lOkQ
UN1212 22kQ
22k 52
UN1213
47 kQ 47ki2
