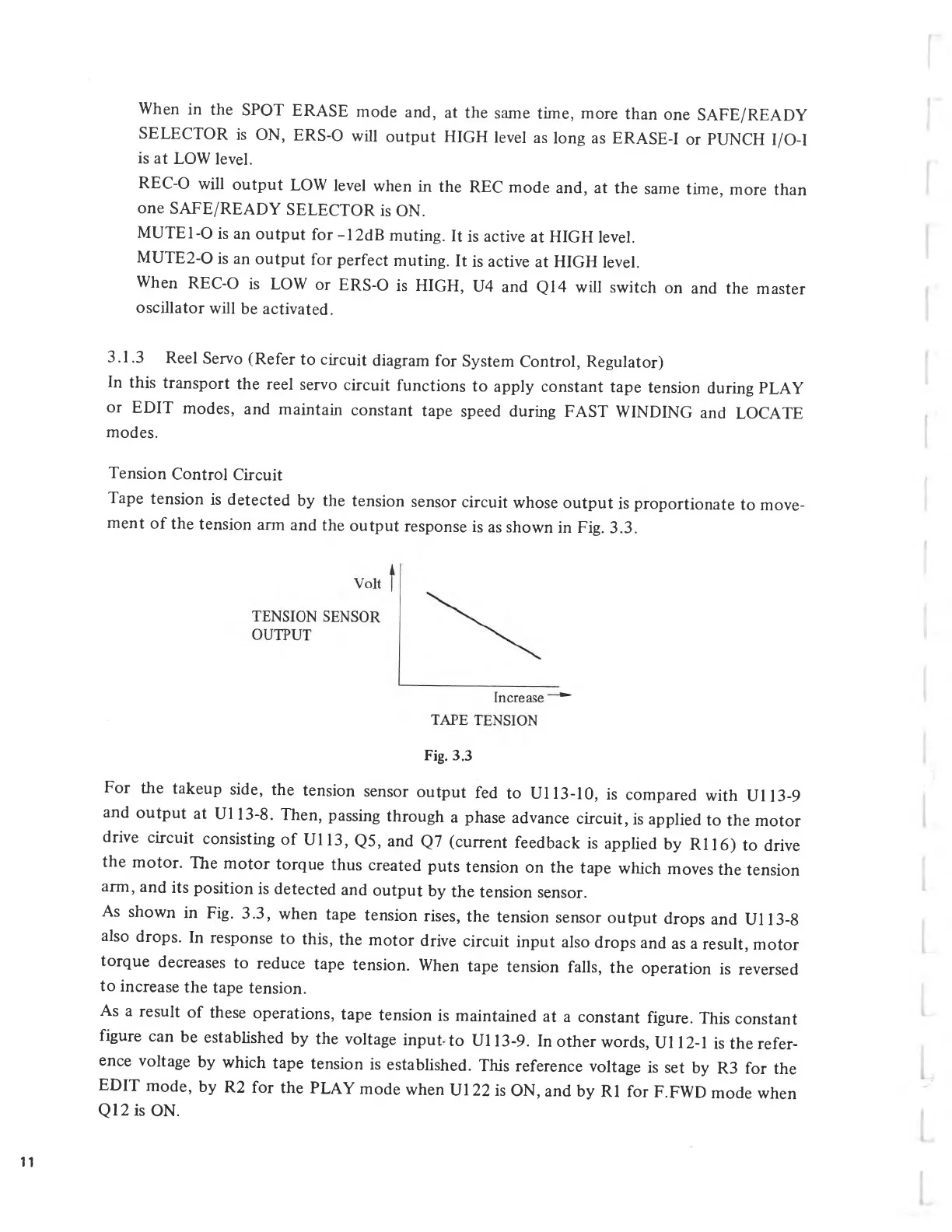

When
in
the
SPOT
ERASE
mode
and,
at
the
same
time,
more
than
one
SAFE/READY
SELECTOR
is
ON,
ERS-0
will
output
HIGH
level
as
long
as
ERASE-I
or
PUNCH
I/O-I
is
at
LOW
level.
REC-0
will
output
LOW
level
when
in
the
REC
mode
and,
at
the
same
time,
more
than
one
SAFE/READY
SELECTOR
is
ON.
MUTE1-0
is
an
output
for
-12dB
muting.
It
is
active
at
HIGH
level.
MUTE2-O
is
an
output
for
perfect
muting.
It
is
active
at
HIGH
level.
When
REC-O
is
LOW
or
ERS-0
is
HIGH,
U4
and
Q14
will
switch
on
and
the
master
oscillator
will
be
activated.
3
.1.3
Reel
Servo
(Refer
to
circuit
diagram
for
System
Control,
Regulator)
In
this
transport
the
reel
servo
circuit
functions
to
apply
constant
tape
tension
during
PLAY
or
EDIT
modes,
and
maintain
constant
tape
speed
during
FAST
WINDING
and
LOCATE
modes.
Tension
Control
Circuit
Tape
tension
is
detected
by
the
tension
sensor
circuit
whose
output
is
proportionate
to
move
ment
of
the
tension
arm
and
the
output
response
is
as
shown
in
Fig.
3.3.
Fig.
3.3
For
the
takeup
side,
the
tension
sensor
output
fed
to
UI
13-10,
is
compared
with
UI
13-9
and
output
at
UI
13-8.
Then,
passing
through
a
phase
advance
circuit,
is
applied
to
the
motor
drive
circuit
consisting
of
UI
13,
Q5,
and
Q7
(current
feedback
is
applied
by
RI
16)
to
drive
the
motor.
The
motor
torque
thus
created
puts
tension
on
the
tape
which
moves
the
tension
arm,
and
its
position
is
detected
and
output
by
the
tension
sensor.
As
shown
in
Fig.
3.3,
when
tape
tension
rises,
the
tension
sensor
output
drops
and
UI
13-8
also
drops.
In
response
to
this,
the
motor
drive
circuit
input
also
drops
and
as
a
result,
motor
torque
decreases
to
reduce
tape
tension.
When
tape
tension
falls,
the
operation
is
reversed
to
increase
the
tape
tension.
As
a
result
of
these
operations,
tape
tension
is
maintained
at
a
constant
figure.
This
constant
figure
can
be
established
by
the
voltage
input
to
UI
13-9.
In
other
words,
UI
12-1
is
the
refer
ence
voltage
by
which
tape
tension
is
established.
This
reference
voltage
is
set
by
R3
for
the
EDIT
mode,
by
R2
for
the
PLAY
mode
when
UI
22
is
ON,
and
by
RI
for
F.FWD
mode
when
Q12is
ON.
11
