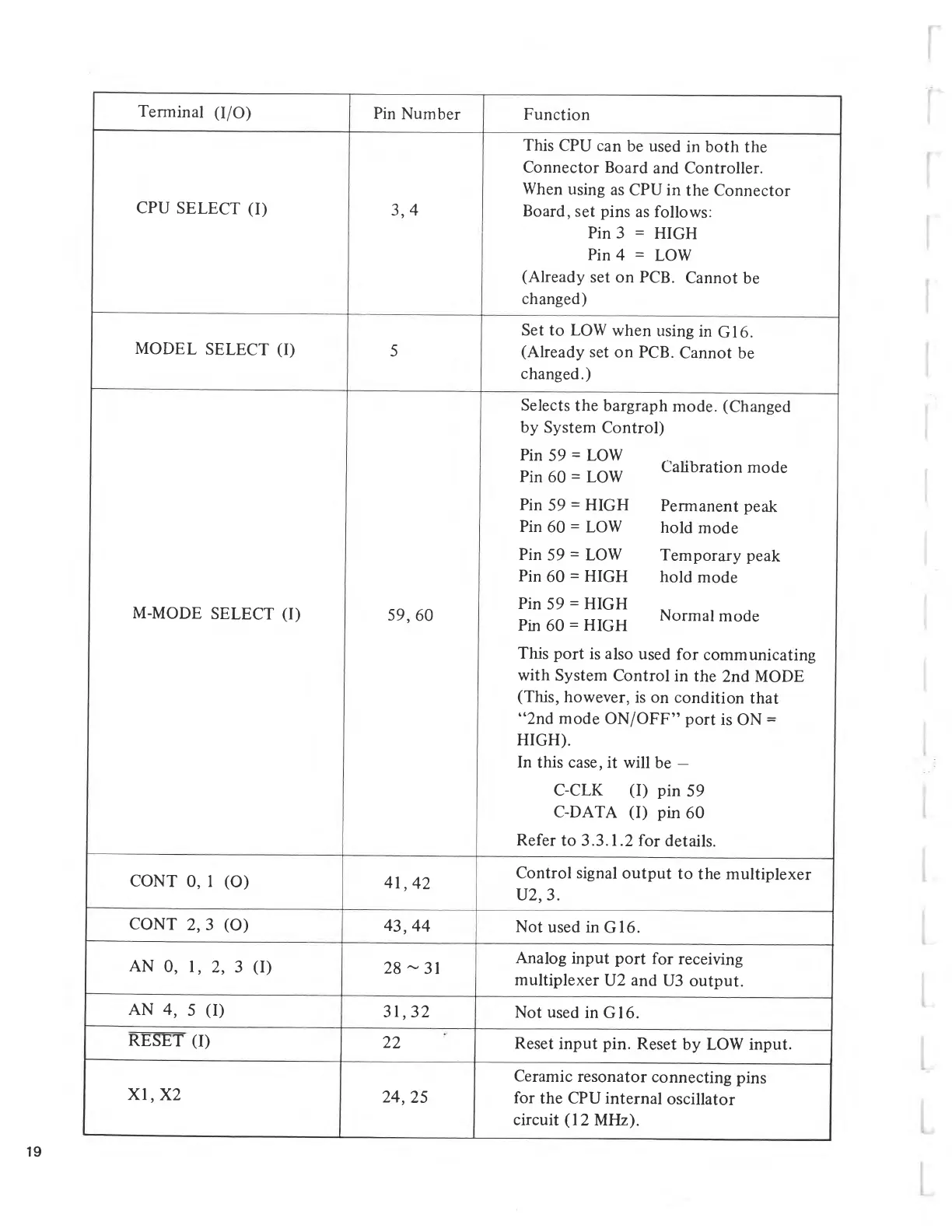

Terminal (I/O)
Pin Number
Function
CPU SELECT (I)
3,4
This CPU can be used in both the
Connector Board and Controller.
When using as CPU in the Connector
Board, set pins as follows:
Pin 3 = HIGH
Pin 4 = LOW
(Already set on PCB. Cannot be
changed)
MODEL SELECT (I)
5
Set to LOW when using in G16.
(Already set on PCB. Cannot be
changed.)
M-MODE SELECT (I)
59, 60
Selects the bargraph mode. (Changed
by System Control)
Pin 59 - LOW .
r>- t aw Calibration mode
Pm 60 = LOW
Pin 59 = HIGH Permanent peak
Pin 60 = LOW hold mode
Pin 59 = LOW Temporary peak
Pin 60 = HIGH hold mode
Pin 59 = HIGH
Pin 60 = HIGH Normal mode
This port is also used for communicating
with System Control in the 2nd MODE
(This, however, is on condition that
“ 2nd mode ON/OFF ” port is ON -
HIGH).
In this case, it will be —
C-CLK (I) pin 59
C-DATA (I) pin 60
Refer to 3.3.1.2 for details.
CONT 0, 1 (0)
41,42
Control signal output to the multiplexer
U2,3.
CONT 2,3 (0)
43,44
Not used in G16.
AN 0, 1, 2, 3 (I)
28 — 31
Analog input port for receiving
multiplexer U2 and U3 output.
AN 4, 5 (I)
31,32
Not used in G16.
RESET (I)
22
Reset input pin. Reset by LOW input.
XI, X2
24, 25
Ceramic resonator connecting pins
for the CPU internal oscillator
circuit (12 MHz).
