the
SEGMENTS
are
HIGH
or
LOW.
The
channel
whose
digit
is
ON,
dot
of
the
SEGMENT
at
LOW
will
be
lit
and
dot
of
the
SEG
MENT
at
HIGH
will
not
be
lit.

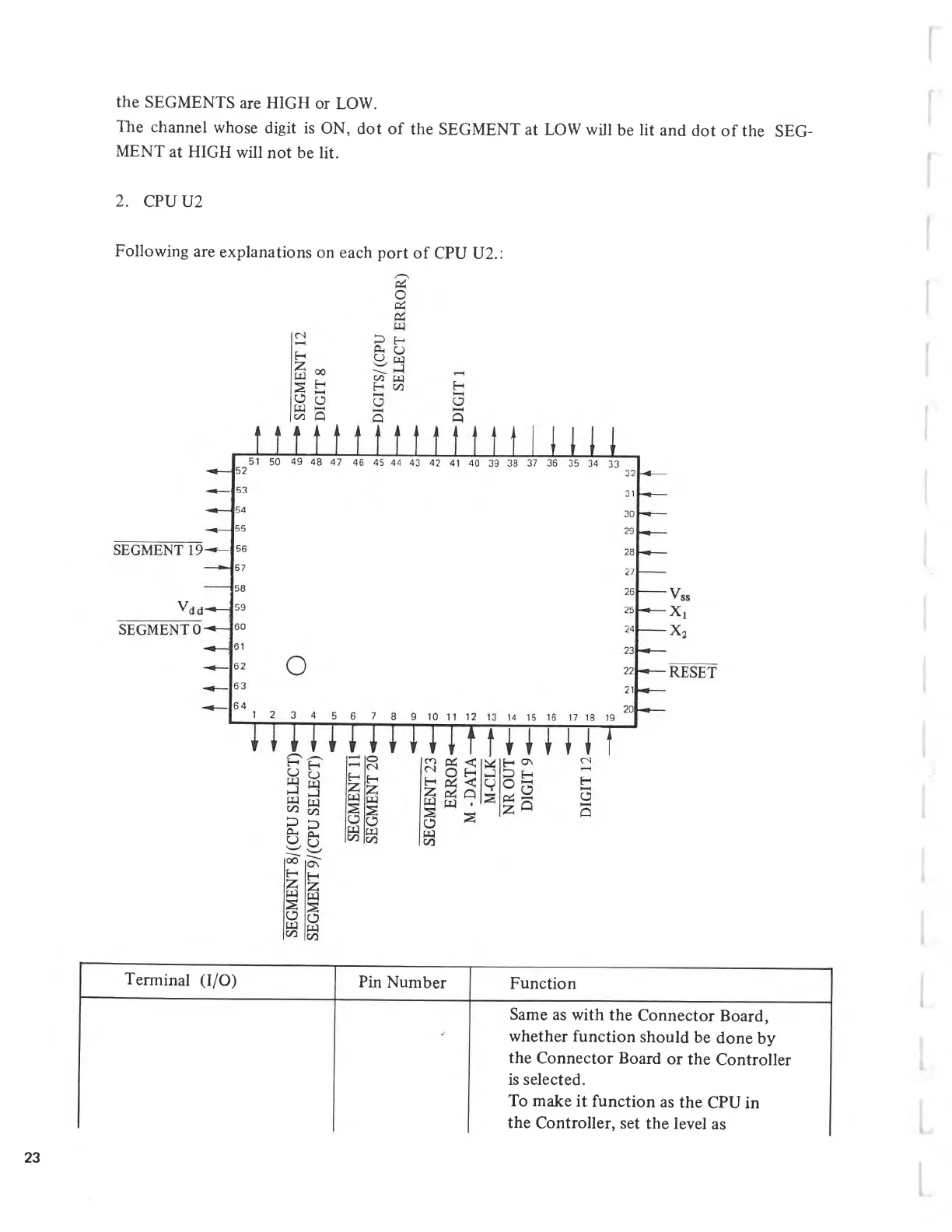

2.
CPUU2
Following
are
explanations
on
each
port
of
CPU
U2.:
Terminal
(I/O)
Pin
Number
Function
Same
as
with
the
Connector
Board,
whether
function
should
be
done
by
the
Connector
Board
or
the
Controller
is
selected.
To
make
it
function
as
the
CPU
in
the
Controller,
set
the
level
as
23
