Fostex G16 - Page 54

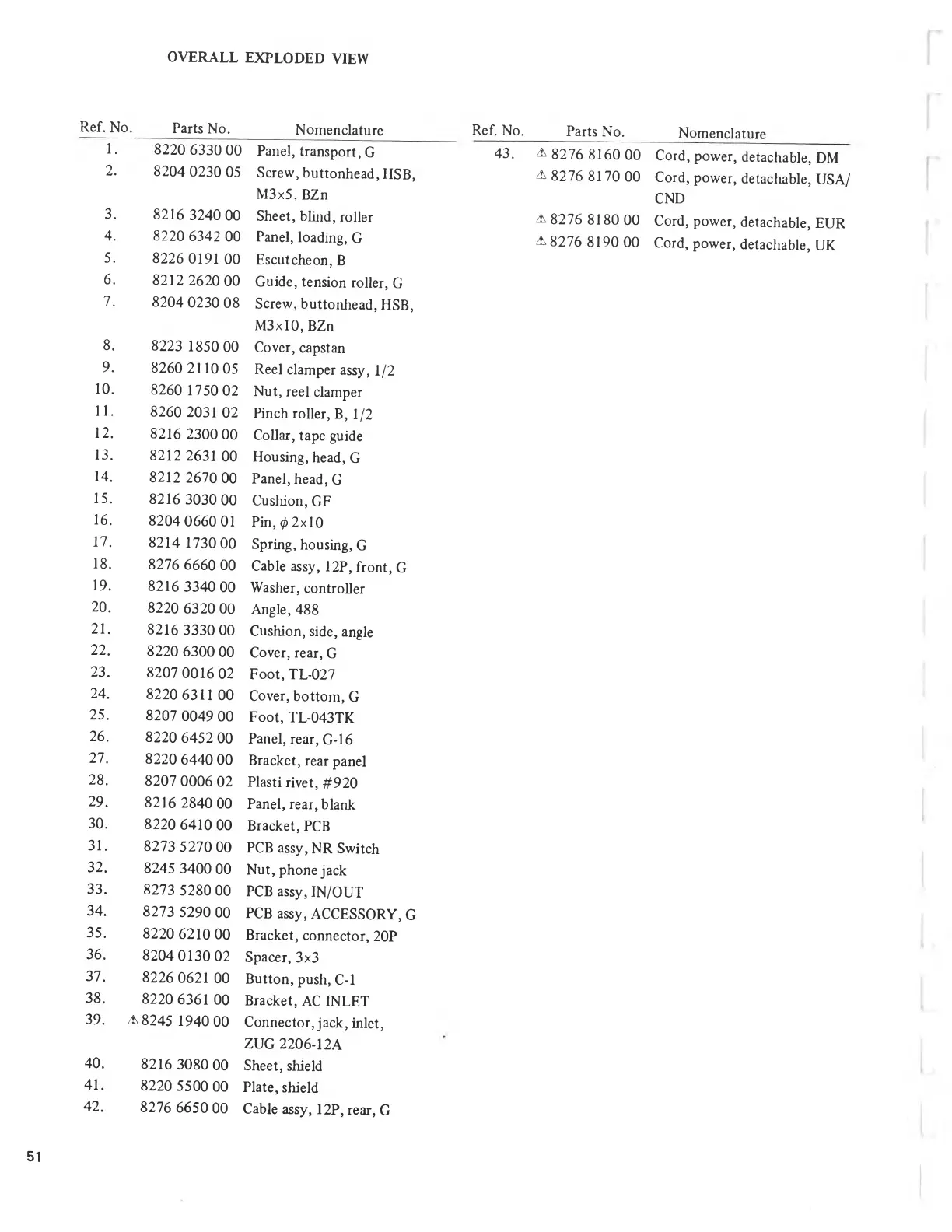

OVERALL EXPLODED VIEW
Ref. No. Parts No.
Nomenclature
Ref. No.
Parts No.
Nomenclature
1.
8220 6330 00
Panel, transport, G
43.
A 8276 8160 00
Cord, power, detachable, DM
2.
8204 0230 05
Screw, buttonhead, HSB,
A 8276 8170 00
Cord, power, detachable, USA/
M3x5, BZn
CND
3.
8216 3240 00
Sheet, blind, roller
A 8276 8180 00
Cord, power, detachable, EUR
4.
8220 6342 00
Panel, loading, G
A 8276 8190 00
Cord, power, detachable, UK
5.
8226 0191 00
Escutcheon, B
6.
8212 2620 00
Guide, tension roller, G
7.
8204 0230 08
Screw, buttonhead, HSB,
M3xlO,BZn
8.
8223 1850 00
Cover, capstan
9.
8260 2110 05
Reel clamper assy, 1/2
10.
8260 1750 02
Nut, reel clamper
11.
8260 2031 02
Pinch roller, B, 1 /2
12.
8216 2300 00
Collar, tape guide
13.
8212 2631 00
Housing, head, G
14.
8212 2670 00
Panel, head, G
15.
8216 3030 00
Cushion, GF
16.
8204 0660 01
Pin, 02x10
17.
8214 1730 00
Spring, housing, G
18.
8276 6660 00
Cable assy, 12P, front, G
19.
8216 3340 00
Washer, controller
20.
8220 6320 00
Angle, 488
21.
8216 3330 00
Cushion, side, angle
22.
8220 6300 00
Cover, rear, G
23.
8207 0016 02
Foot, TL-027
24.
8220 6311 00
Cover, bottom, G
25.
8207 0049 00
Foot, TL-043TK
26.
8220 6452 00
Panel, rear, G-16
27.
8220 6440 00
Bracket, rear panel
28.
8207 0006 02
Plasti rivet, #920
29.
8216 2840 00
Panel, rear, blank
30.
8220 6410 00
Bracket, PCB
31.
8273 5270 00
PCB assy, NR Switch
32.
8245 3400 00
Nut, phonejack
33.
8273 5280 00
PCB assy, IN/OUT
34.
8273 5290 00
PCB assy, ACCESSORY, G
35.
8220 6210 00
Bracket, connector, 20P
36.
8204 0130 02
Spacer, 3x3
37.
8226 0621 00
Button, push, C-l
38.
8220 6361 00
Bracket, AC INLET
39.
A 8245 1940 00
Connector, jack, inlet,
ZUG 2206-1 2A
40.
8216 3080 00
Sheet, shield
41.
8220 5500 00
Plate, shield
42.
8276 6650 00
Cable assy, 12P, rear, G
