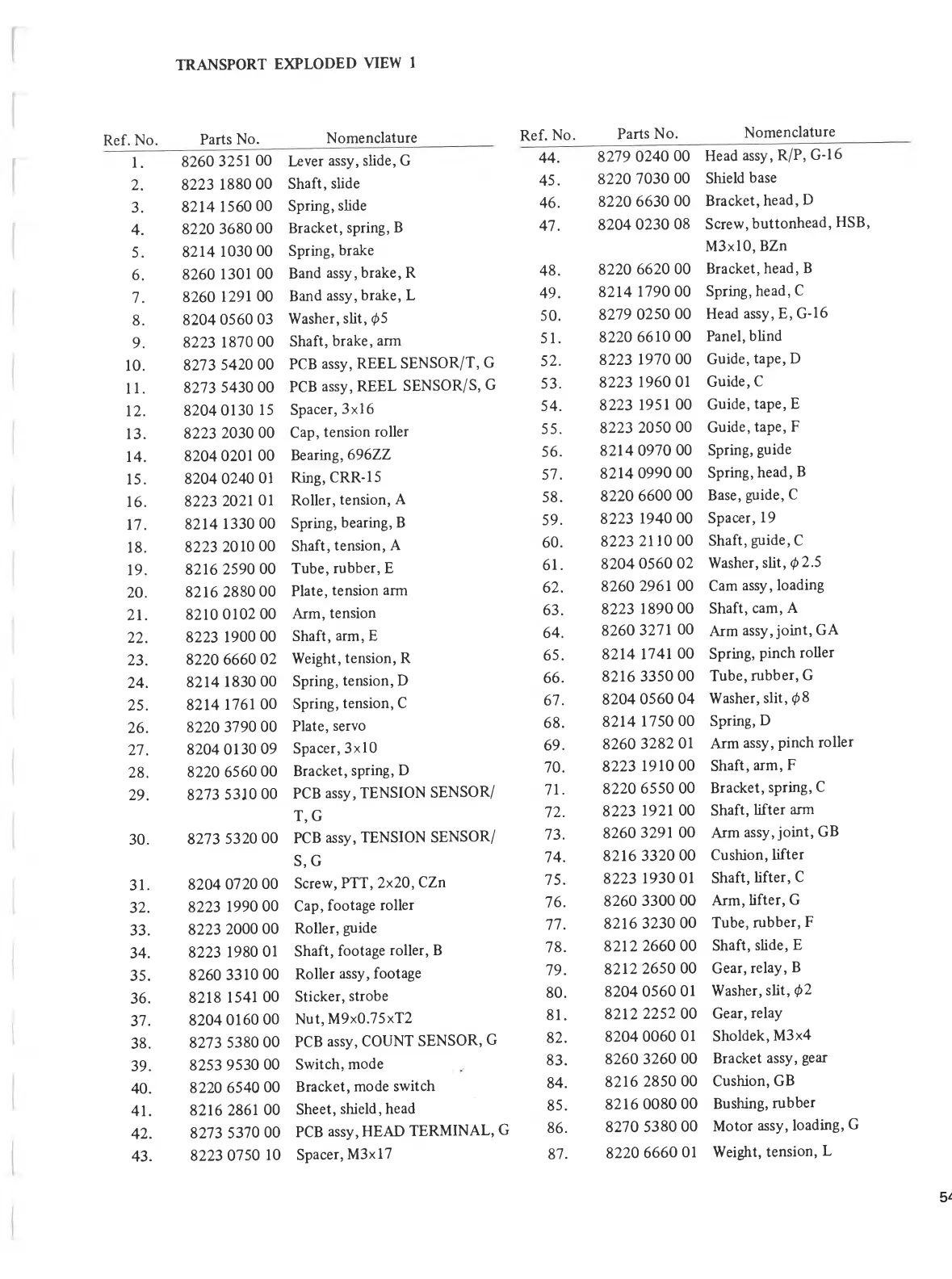

TRANSPORT EXPLODED VIEW 1
Ref. No.
Parts No.
Nomenclature
Ref. No.
Parts No.
Nomenclature
1.
8260 3251 00
Lever assy, slide, G
44.
8279 0240 00
Head assy, R/P, G-16
2.
8223 1880 00
Shaft, slide
45.
8220 7030 00
Shield base
3.
8214 1560 00
Spring, slide
46.
8220 6630 00
Bracket, head, D
4.
8220 3680 00
Bracket, spring, B
47.
8204 0230 08
Screw, buttonhead, HSB,
5.
8214 1030 00
Spring, brake
M3xl0, BZn
6.
8260 1301 00
Band assy, brake, R
48.
8220 6620 00
Bracket, head, B
7.
8260 1291 00
Band assy, brake, L
49.
8214 1790 00
Spring, head, C
8.
8204 0560 03
Washer, slit, 05
50.
8279 0250 00
Head assy, E, G-16
9.
8223 1870 00
Shaft, brake, arm
51.
8220 6610 00
Panel, blind
10.
8273 5420 00
PCB assy, REEL SENSOR/T, G
52.
8223 1970 00
Guide, tape, D
11.
8273 5430 00
PCB assy, REEL SENSOR/S, G
53.
8223 1960 01
Guide, C
12.
8204 0130 15
Spacer, 3x16
54.
8223 1951 00
Guide, tape, E
13.
8223 2030 00
Cap, tension roller
55.
8223 2050 00
Guide, tape, F
14.
8204 0201 00
Bearing, 696ZZ
56.
8214 0970 00
Spring, guide
15.
8204 0240 01
Ring, CRR-15
57.
8214 0990 00
Spring, head, B
16.
8223 2021 01
Roller, tension, A
58.
8220 6600 00
Base, guide, C
17.
8214 1330 00
Spring, bearing, B
59.
8223 1940 00
Spacer, 19
18.
8223 2010 00
Shaft, tension, A
60.
8223 2110 00
Shaft, guide, C
19.
8216 2590 00
Tube, rubber, E
61.
8204 0560 02
Washer, slit, 02.5
20.
8216 2880 00
Plate, tension arm
62.
8260 2961 00
Cam assy, loading
21.
8210 0102 00
Arm, tension
63.
8223 1890 00
Shaft, cam, A
22.
8223 1900 00
Shaft, arm, E
64.
8260 3271 00
Arm assy,joint, GA
23.
8220 6660 02
Weight, tension, R
65.
8214 1741 00
Spring, pinch roller
24.
8214 1830 00
Spring, tension, D
66.
8216 3350 00
Tube, rubber, G
25.
8214 1761 00
Spring, tension, C
67.
8204 0560 04
Washer, slit, 08
26.
8220 3790 00
Plate, servo
68.
8214 1750 00
Spring, D
27.
8204 0130 09
Spacer, 3x10
69.
8260 3282 01
Arm assy, pinch roller
28.
8220 6560 00
Bracket, spring, D
70.
8223 1910 00
Shaft, arm, F
29.
8273 5310 00
PCB assy, TENSION SENSOR/
71.
8220 6550 00
Bracket, spring, C
T, G
72.
8223 1921 00
Shaft, lifter arm
30.
8273 5320 00
PCB assy, TENSION SENSOR/
73.
8260 3291 00
Arm assy, joint, GB
S,G
74.
8216 3320 00
Cushion, lifter
31.
8204 0720 00
Screw, PTT, 2x20, CZn
75.
8223 1930 01
Shaft, lifter, C
32.
8223 1990 00
Cap, footage roller
76.
8260 3300 00
Arm, lifter, G
33.
8223 2000 00
Roller, guide
77.
8216 3230 00
Tube, rubber, F
34.
8223 1980 01
Shaft, footage roller, B
78.
8212 2660 00
Shaft, slide, E
35.
8260 3310 00
Roller assy, footage
79.
8212 2650 00
Gear, relay, B
36.
8218 1541 00
Sticker, strobe
80.
8204 0560 01
Washer, slit, 02
37.
8204 0160 00
Nut, M9x0.75xT2
81.
8212 2252 00
Gear, relay
38.
8273 5380 00
PCB assy, COUNT SENSOR, G
82.
8204 0060 01
Sholdek, M3x4
39.
8253 9530 00
Switch, mode
83.
8260 3260 00
Bracket assy, gear
40.
8220 6540 00
Bracket, mode switch
84.
8216 2850 00
Cushion, GB
41.
8216 2861 00
Sheet, shield, head
85.
8216 0080 00
Bushing, rubber
42.
8273 5370 00
PCB assy, HEAD TERMINAL, G
86.
8270 5380 00
Motor assy, loading, G
43.
8223 0750 10
Spacer, M3xl7 87.
8220 6660 01
Weight, tension, L
54
