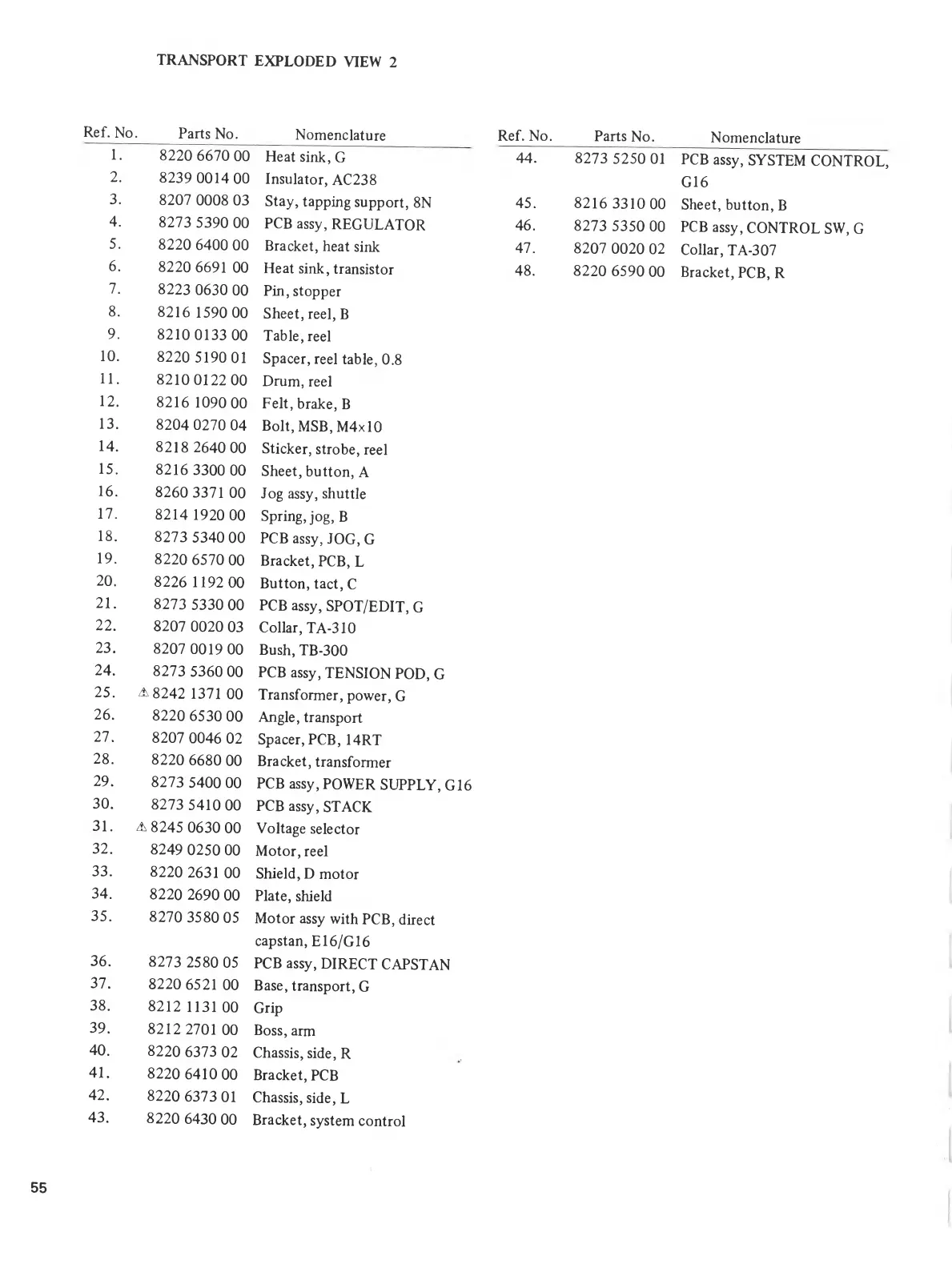

TRANSPORT EXPLODED VIEW 2
Ref. No.
Parts No.
Nomenclature Ref. No.
Parts No.
Nomenclature
1.
8220 6670 00
Heat sink, G
44.
8273 5250 01
PCB assy, SYSTEM CONTROL,
2.
8239 0014 00
Insulator, AC238
G16
3.
8207 0008 03
Stay, tapping support, 8N
45.
8216 3310 00
Sheet, button, B
4.
8273 5390 00
PCB assy, REGULATOR
46.
8273 5350 00
PCB assy, CONTROL SW, G
5.
8220 6400 00
Bracket, heat sink
47.
8207 0020 02
Collar, TA-307
6.
8220 6691 00
Heat sink, transistor
48.
8220 6590 00
Bracket, PCB, R
7.
8223 0630 00
Pin, stopper
8.
8216 1590 00
Sheet, reel, B
9.
8210 0133 00
Table, reel
10.
8220 5190 01
Spacer, reel table, 0.8
11.
8210 0122 00
Drum, reel
12.
8216 1090 00
Felt, brake, B
13.
8204 0270 04
Bolt, MSB,M4xlO
14.
8218 2640 00
Sticker, strobe, reel
15.
8216 3300 00
Sheet, button, A
16.
8260 3371 00
Jog assy, shuttle
17.
8214 1920 00
Spring, jog, B
18.
8273 5340 00
PCB assy, JOG, G
19.
8220 6570 00
Bracket, PCB, L
20.
8226 1192 00
Button, tact, C
21.
8273 5330 00
PCB assy, SPOT/EDIT, G
22.
8207 0020 03
Collar, TA-310
23.
8207 0019 00
Bush, TB-300
24.
8273 5360 00
PCB assy, TENSION POD, G
25.
A 8242 1371 00
Transformer, power, G
26.
8220 6530 00
Angle, transport
27.
8207 0046 02
Spacer, PCB, 14RT
28.
8220 6680 00
Bracket, transformer
29.
8273 5400 00
PCB assy, POWER SUPPLY, G16
30.
8273 5410 00
PCB assy, STACK
31.
A 8245 0630 00
Voltage selector
32.
8249 0250 00
Motor, reel
33.
8220 2631 00
Shield, D motor
34.
8220 2690 00
Plate, shield
35.
8270 3580 05
Motor assy with PCB, direct
capstan, E16/G16
36.
8273 2580 05
PCB assy, DIRECT CAPSTAN
37.
8220 6521 00
Base, transport, G
38.
8212 1131 00
Grip
39.
8212 2701 00
Boss, arm
40.
8220 6373 02
Chassis, side, R
41.
8220 6410 00
Bracket, PCB
42.
8220 6373 01
Chassis, side, L
43.
8220 6430 00
Bracket, system control
55
