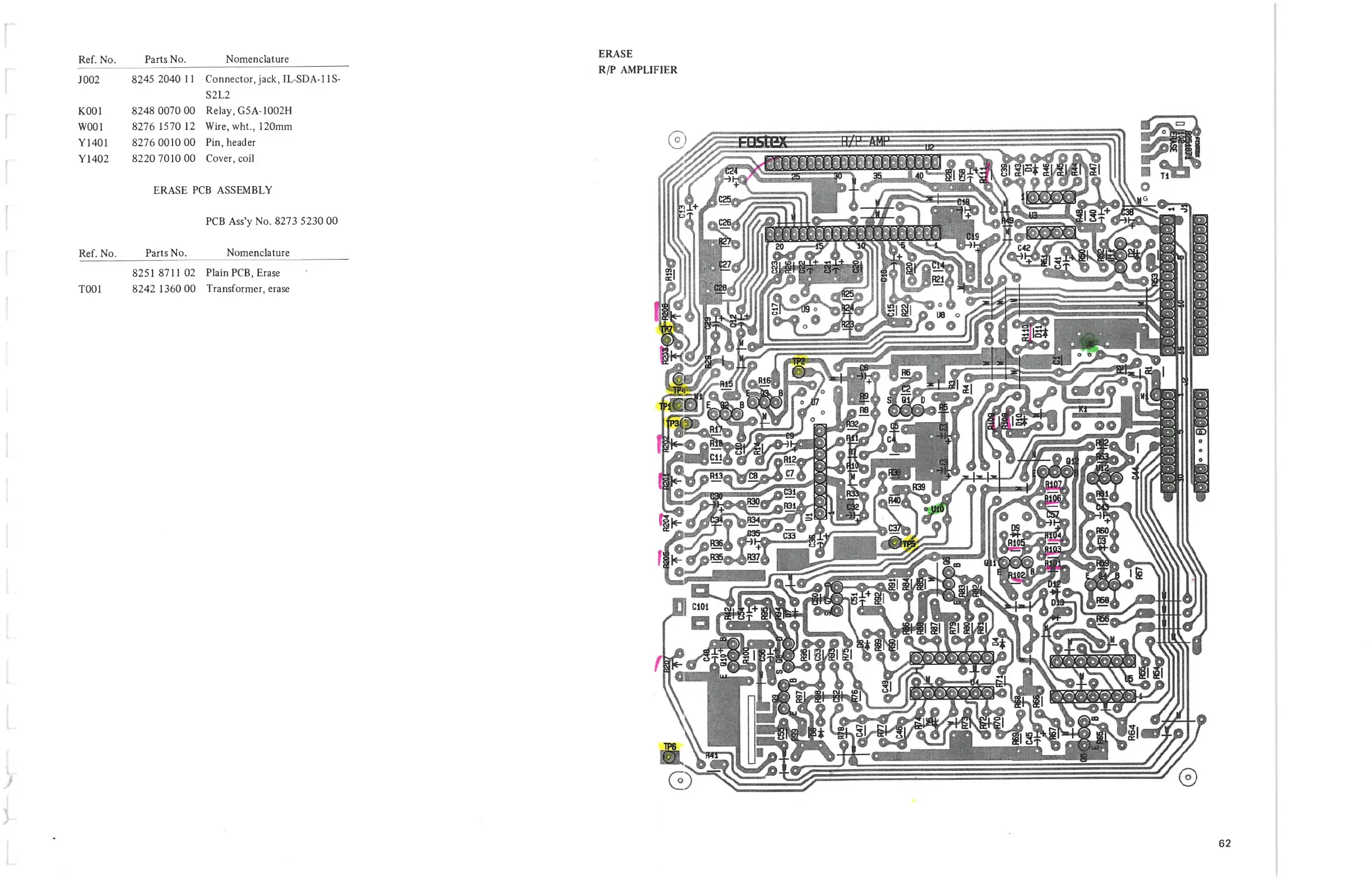

Fostex G16 - Page 71

Ref. No.
Parts No.
Nomenclature
J002
8245 2040 11
Connector,jack, IL-SDA-11S-
S2L2
K001
8248 0070 00 Relay, G5A-1002H
wool
8276 1570 12 Wire, wht., 120mm
Y1401
8276 0010 00 Pin, header
Y1402
8220 7010 00 Cover, coil
ERASE
R/P AMPLIFIER
ERASE PCB ASSEMBLY
PCB Ass ’ y No. 8273 5230 00
Ref. No. Parts No. Nomenclature
8251 8711 02 Plain PCB, Erase
T001 8242 1360 00 Transformer, erase
