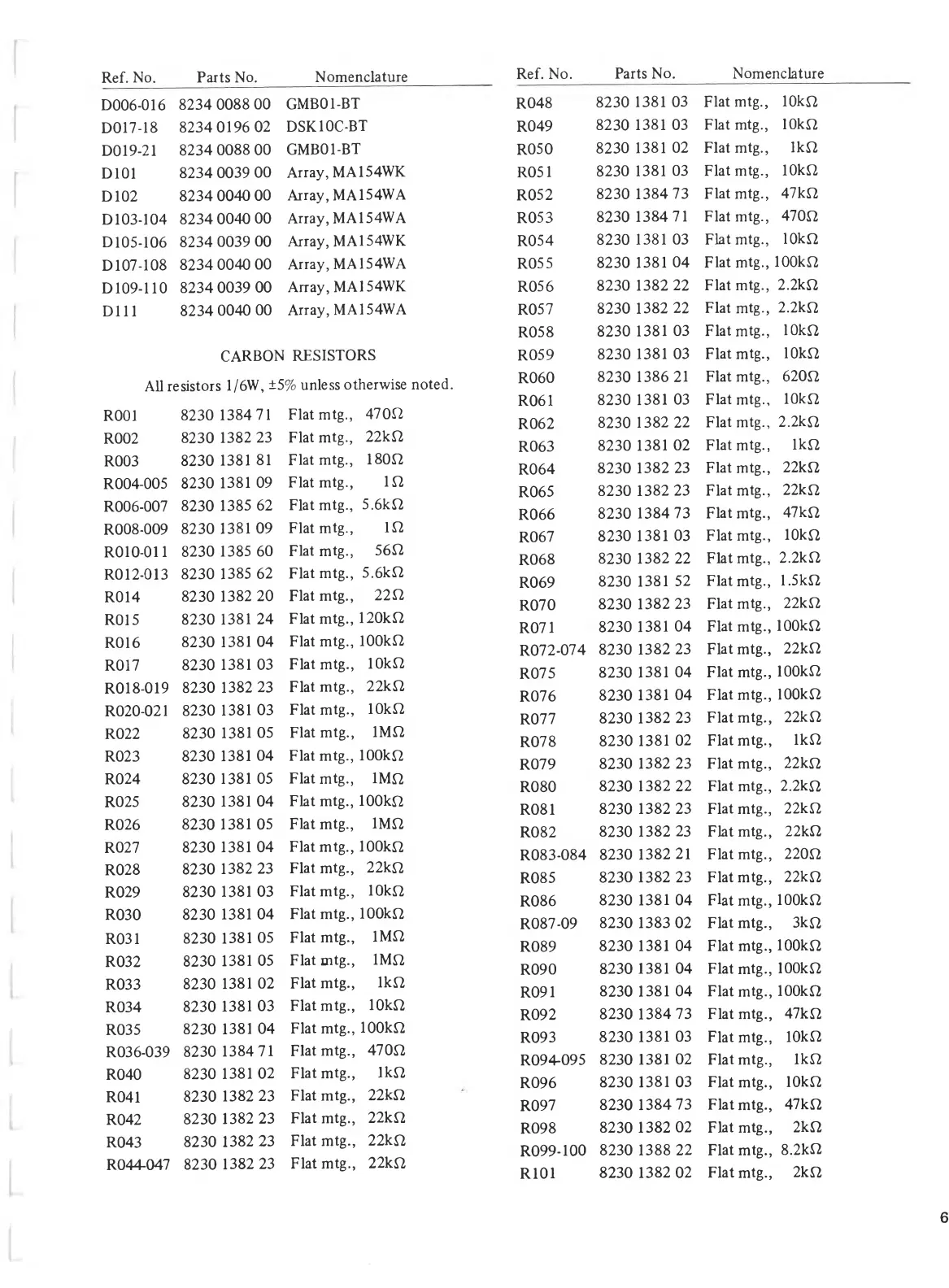

Fostex G16 - Page 77

Ref. No.
Parts No.
Nomenclature
Ref. No.
Parts No. Nomenclature
D006-016
8234 0088 00
GMB01-BT
R048
8230 1381 03
Flat mtg., lOkft
D017-18
8234 0196 02
DSK10C-BT
R049
8230 1381 03
Flat mtg., lOkft
DO 19-21
8234 0088 00
GMB01-BT
R050
8230 1381 02
Flat mtg., Ikft
D101
8234 0039 00
Array, MA154WK
R051
8230 1381 03
Flat mtg., lOkft
D102
8234 0040 00
Array, MA154WA R052
8230 1384 73
Flat mtg., 47kft
D103-104
8234 0040 00
Array, MA154WA
R053
8230 1384 71
Flat mtg., 470ft
D105-106
8234 0039 00
Array, MA154WK
R054
8230 1381 03
Flat mtg., lOkft
D107-108
8234 0040 00
Array, MA154WA
R055
8230 1381 04
Flat mtg., lOOkft
D109-110
8234 0039 00
Array, MA154WK R056
8230 1382 22
Flat mtg., 2.2kft
Dill
8234 0040 00
Array, MA154WA
R057
8230 1382 22
Flat mtg., 2.2kft
R058
8230 1381 03
Flat mtg., lOkft
CARBON RESISTORS RO59
8230 1381 03
Flat mtg., lOkft
All resistors 1/6W, ±5% unless otherwise noted.
R060
8230 1386 21
Flat mtg., 620ft
R061
8230 1381 03
Flat mtg., lOkft
R001
8230 1384 71
Flat mtg., 470ft
R062
8230 1382 22
Flat mtg., 2.2kft
R002
8230 1382 23
Flat mtg., 22kft
R063
8230 1381 02
Flat mtg., Ikft
R003
8230 1381 81
Flat mtg., 180ft
R064
8230 1382 23
Flat mtg., 22kft
R004-005
8230 1381 09
Flat mtg., 1ft
R065
8230 1382 23
Flat mtg., 22kft
R006-007
8230 1385 62
Flat mtg., 5.6kft
R066
8230 1384 73
Flat mtg., 47kft
R008-009
8230 1381 09
Flat mtg., 1ft
R067
8230 1381 03
Flat mtg., lOkft
R010-011
8230 1385 60
Flat mtg., 56ft
R068
8230 1382 22
Flat mtg., 2.2kft
R012-013
8230 1385 62
Flat mtg., 5.6kft
R069
8230 1381 52
Flat mtg., 1.5kft
R014
8230 1382 20
Flat mtg., 22ft
R070
8230 1382 23
Flat mtg., 22kft
ROI 5
8230 1381 24
Flat mtg., 120kft
R071
8230 1381 04
Flat mtg., lOOkft
R016
8230 1381 04
Flat mtg., lOOkft
R072-074
8230 1382 23
Flat mtg., 22kft
ROI 7
8230 1381 03
Flat mtg., lOkft
R075
8230 1381 04
Flat mtg., lOOkft
R018-019
8230 1382 23
Flat mtg., 22kft
R076
8230 1381 04
Flat mtg., lOOkft
R020-021
8230 1381 03
Flat mtg., lOkft
R077
8230 1382 23
Flat mtg., 22kft
R022
8230 1381 05
Flat mtg., IMft
R078
8230 1381 02
Flat mtg., Ikft
R023
8230 1381 04
Flat mtg., lOOkft
R079
8230 1382 23
Flat mtg., 22kft
R024
8230 1381 05
Flat mtg., IMft
R080
8230 1382 22
Flat mtg., 2.2kft
R025
8230 1381 04
Flat mtg., lOOkft
R081
8230 1382 23
Flat mtg., 22kft
R026
8230 1381 05
Flat mtg., IMft
R082
8230 1382 23
Flat mtg., 22kft
R027
8230 1381 04
Flat mtg., lOOkft
R083-084
8230 1382 21
Flat mtg., 220ft
R028
8230 1382 23
Flat mtg., 22kft
R085
8230 1382 23
Flat mtg., 22kft
R029
8230 1381 03
Flat mtg., lOkft
R086
8230 1381 04 Flat mtg., lOOkft
R030
8230 1381 04
Flat mtg., lOOkft
R087-09
8230 1383 02
Flat mtg., 3kft
R031
8230 1381 05
Flat mtg., IMft
R089
8230 1381 04
Flat mtg., lOOkft
R032
8230 1381 05
Flat mtg., IMft
R090
8230 1381 04
Flat mtg., lOOkft
R033
8230 1381 02
Flat mtg., Ikft
R091
8230 1381 04
Flat mtg., lOOkft
R034
8230 1381 03
Flat mtg., lOkft
R092
8230 1384 73
Flat mtg., 47kft
R035
8230 1381 04
Flat mtg., lOOkft
R093
8230 1381 03
Flat mtg., lOkft
R036-039
8230 1384 71
Flat mtg., 470ft
R094-095
8230 1381 02
Flat mtg., Ikft
R040
8230 1381 02
Flat mtg., Ikft
R096
8230 1381 03 Flat mtg., lOkft
R041
8230 1382 23
Flat mtg., 22kft
R097
8230 1384 73
Flat mtg., 47kft
R042
8230 1382 23
Flat mtg., 22kft
R098
8230 1382 02
Flat mtg., 2kft
R043
8230 1382 23
Flat mtg., 22kft
R099-100
8230 1388 22
Flat mtg., 8.2kft
R044-047
8230 1382 23
Flat mtg., 22kft
R101
8230 1382 02 Flat mtg., 2kft
