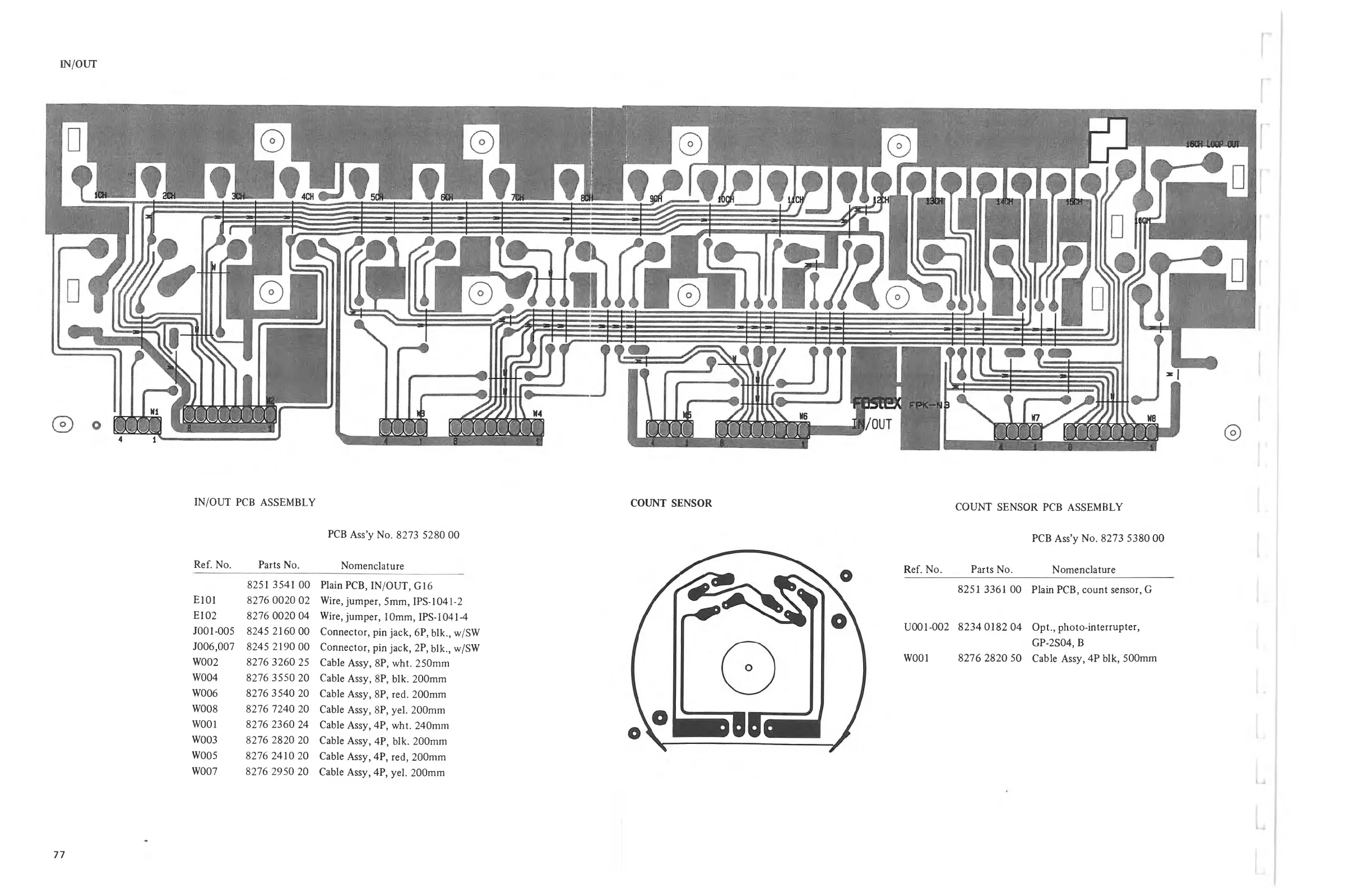

IN/OUT
IN/OUT PCB ASSEMBLY
COUNT SENSOR
PCB Ass ’ y No. 8273 5280 00
Ref. No.
Parts No.
Nomenclature
8251 3541 00
Plain PCB, IN/OUT, G1 6
E101 8276 0020 02
Wire, jumper, 5mm, IPS-104L2
E102 8276 0020 04
Wire, jumper, 10mm, IPS- 1041-4
JOO 1-005
8245 2160 00
Connector, pin jack, 6P, blk., w/SW
J006,007 8245 2190 00
Connector, pin jack, 2P, blk., w/SW
W002
8276 3260 25
Cable Assy, 8P, wht. 250mm
W004
8276 3550 20
Cable Assy, 8P, blk. 200mm
W006 8276 3540 20
Cable Assy, 8P, red. 200mm
W008 8276 7240 20
Cable Assy, 8P, yel. 200mm
W001
8276 2360 24
Cable Assy, 4P, wht. 240mm
W003
8276 2820 20
Cable Assy, 4P, blk. 200mm
W005
8276 2410 20
Cable Assy, 4P, red, 200mm
W007 8276 2950 20
Cable Assy, 4P, yel. 200mm
COUNT SENSOR PCB ASSEMBLY
PCB Ass ’ y No. 8273 5380 00
Ref. No. Parts No. Nomenclature
8251 3361 00 Plain PCB, count sensor, G
U001-002 8234 0182 04 Opt., photo-interrupter,
GP-2S04, B
W001 8276 2820 50 Cable Assy, 4P blk, 500mm
77
