Fostex G16 - Page 99

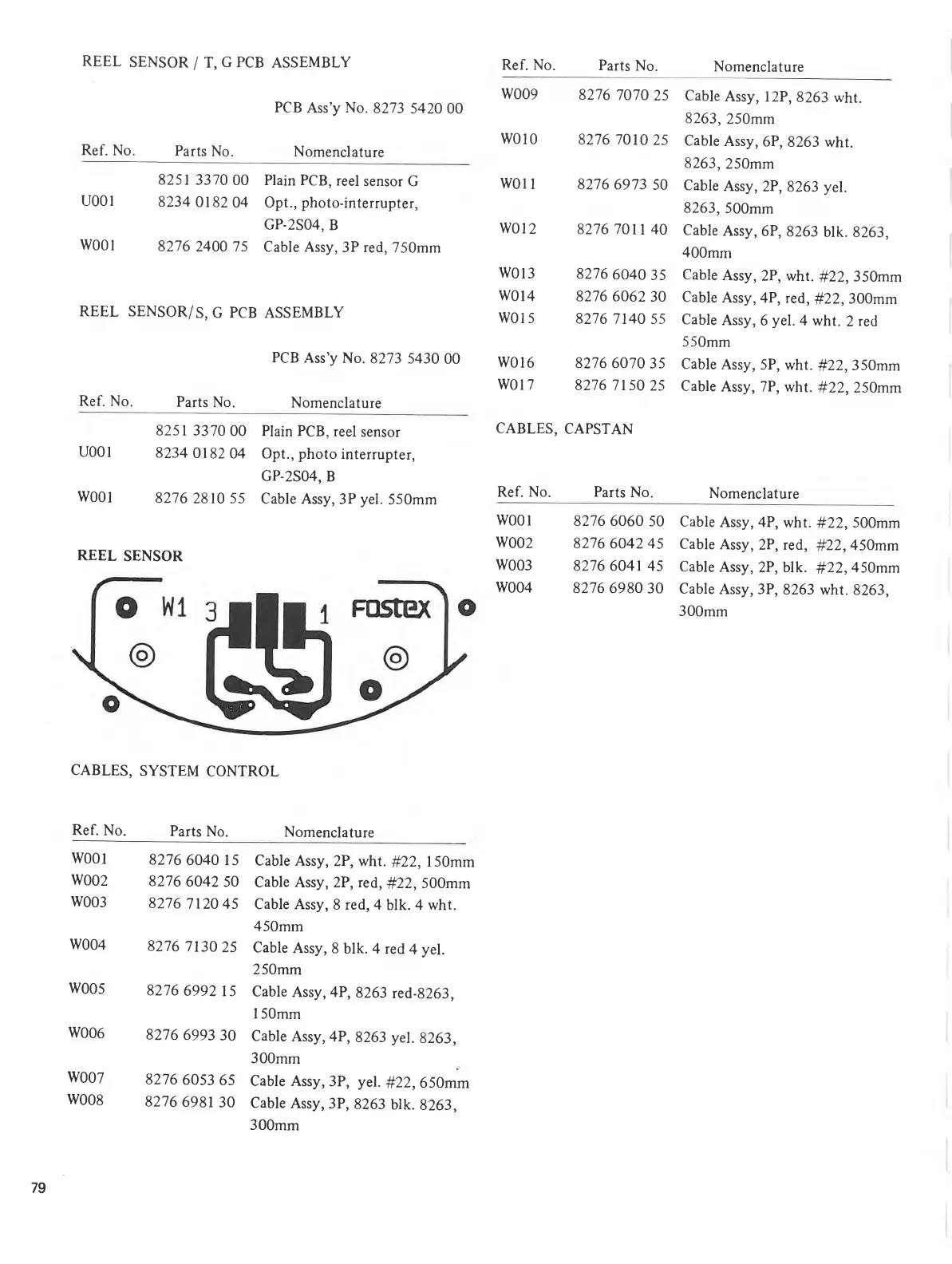

REEL SENSOR / T, G PCB ASSEMBLY
PCB Ass ’ y No. 8273 5420 00
Ref. No. Parts No. Nomenclature
8251 3370 00 Plain PCB, reel sensor G
U001 8234 0182 04 Opt., photo-interrupter,
GP-2S04, B
W001 8276 2400 75 Cable Assy, 3P red, 750mm
REEL SENSOR/ S, G PCB ASSEMBLY
PCB Ass ’ y No. 8273 5430 00
Ref. No. Parts No. Nomenclature
8251 3370 00 Plain PCB, reel sensor
U001 8234 0182 04 Opt., photo interrupter,
GP-2S04, B
W001 8276 2810 55 Cable Assy, 3P yel. 550mm
REEL SENSOR
CABLES, SYSTEM CONTROL
CABLES, CAPSTAN
Ref. No.
Parts No.
Nomenclature
W009
8276 7070 25
Cable Assy, 12P, 8263 wht.
8263, 250mm
W010
8276 7010 25
Cable Assy, 6P, 8263 wht.
8263, 250mm
W011
8276 6973 50
Cable Assy, 2P, 8263 yel.
8263, 500mm
W012
8276 7011 40
Cable Assy, 6P, 8263 blk. 8263,
400mm
W013
8276 6040 35
Cable Assy, 2P, wht. #22, 350mm
W014
8276 6062 30
Cable Assy, 4P, red, #22, 300mm
W015
8276 7140 55
Cable Assy, 6 yel. 4 wht. 2 red
550mm
W016
8276 6070 35
Cable Assy, 5P, wht. #22, 350mm
W017
8276 7150 25
Cable Assy, 7P, wht. #22, 250mm
300mm
Ref. No.
Parts No.
Nomenclature
wool
8276 6060 50
Cable Assy, 4P, wht. #22, 500mm
W002
8276 6042 45
Cable Assy, 2P, red, #22, 450mm
W003
8276 6041 45
Cable Assy, 2P, blk. #22, 450mm
W004
8276 6980 30
Cable Assy, 3P, 8263 wht. 8263,
Ref. No.
Parts No. Nomenclature
W001
W002
W003
8276 6040 15 Cable Assy, 2P, wht. #22, 150mm
8276 6042 50 Cable Assy, 2P, red, #22, 500mm
8276 7120 45 Cable Assy, 8 red, 4 blk. 4 wht.
450mm
W004
8276 7130 25 Cable Assy, 8 blk. 4 red 4 yel.
250mm
W005
8276 6992 15 Cable Assy, 4P, 8263 red-8263,
1 50mm
W006
8276 6993 30 Cable Assy, 4P, 8263 yel. 8263,
300mm
W007
W008
8276 6053 65 Cable Assy, 3P, yel. #22, 650mm
8276 6981 30 Cable Assy, 3P, 8263 blk. 8263,
300mm
