FOTILE EMS9026 - Installation Suggestions and Diagrams

14
FOTILE
B During the installation, switch off the circuit breaker in the fuse box during installation. If
the supply cord is damaged, it must be replaced by a special cord or assembly available
from the manufacturer or its service agent.
B The appliance should only be installed, removed and maintained by qualified technicians
to prevent risks like electric shocks, falling or fires from occurring.
@ Risk of Injury:
B Unplug the appliance from the mains or switch off the circuit breaker in the fuse box
before installation, cleaning, maintenance and repair in order to avoid electric shock.
B The range hood may have sharp edges. Be careful to avoid cuts and abrasions during
installation and cleaning. Do wear qualified protective gloves.
@® Warning Before Installation
B Prior to installation, ensure that the exhaust outlet is free of debris, as they may damage
the range hood.
B A straight and short ducting run will ensure high performance of the range hood.
B A curving and long ducting run should be avoided, as it will lower the performance of the
range hood.
B Strictly seal the connection between the duct and duct hole with duct tape. Ensure that
the connection between the duct and the duct cover is secure, and seal it with aluminum
tape.
B A small duct hole will lower the performance of the range hood. Therefore, it is highly
recommended that your duct hole eq ual to or larger than 6"(150mm) of the size.
B The bolts used in this product are metric-size bolts, please do not apply any unqualified
bolts.
Notice A
@ Please carefully read all instructions prior to installation. Please give special consideration
to the following items:
B If you are renovating your kitchen, be careful to not expose the exterior of the range hood.
Building materials, dust, paint, coating, and gases will corrode and tarnish the surface of
the range hood. It is recommended that you install the range hood after all renovations
are completed.
B If you need to remove your gas burner before installation, please turn off the main gas
valve first.
B Do not connect the range hood duct to a duct used to exhaust hot air or fumes from
another appliance.
RANGE HOOD
B Two installers are recommended due to the large size and heavy weight of the range
hood. Since the installation is complex and the appliance is heavy, professional installers
are required to install the appliance as outlined in this manual.
B After the appliance fixed, the plug should be accessible.
B Make sure to keep the appliance horizontally.
B Ensure that the appliance functions normally after the installation is complete.
Important
A\
@ Prior to installation, please read the FOTILE Range Hood Installation carefully and save it
for the local inspector’s future reference.
@® This appliance must be installed in accordance with National Electrical Codes, as well as all
state, municipal and local codes.
® The appliance must be equipped with safe circuit breaker and installed with safe grounding.
@® The correct voltage, frequency and amperage must be supplied to the appliance according
to the proper voltage, frequency and amperage ratings listed on the product rating plate.
@ This installation must be completed by FOTILE authorized service center, or certified install-
ers.

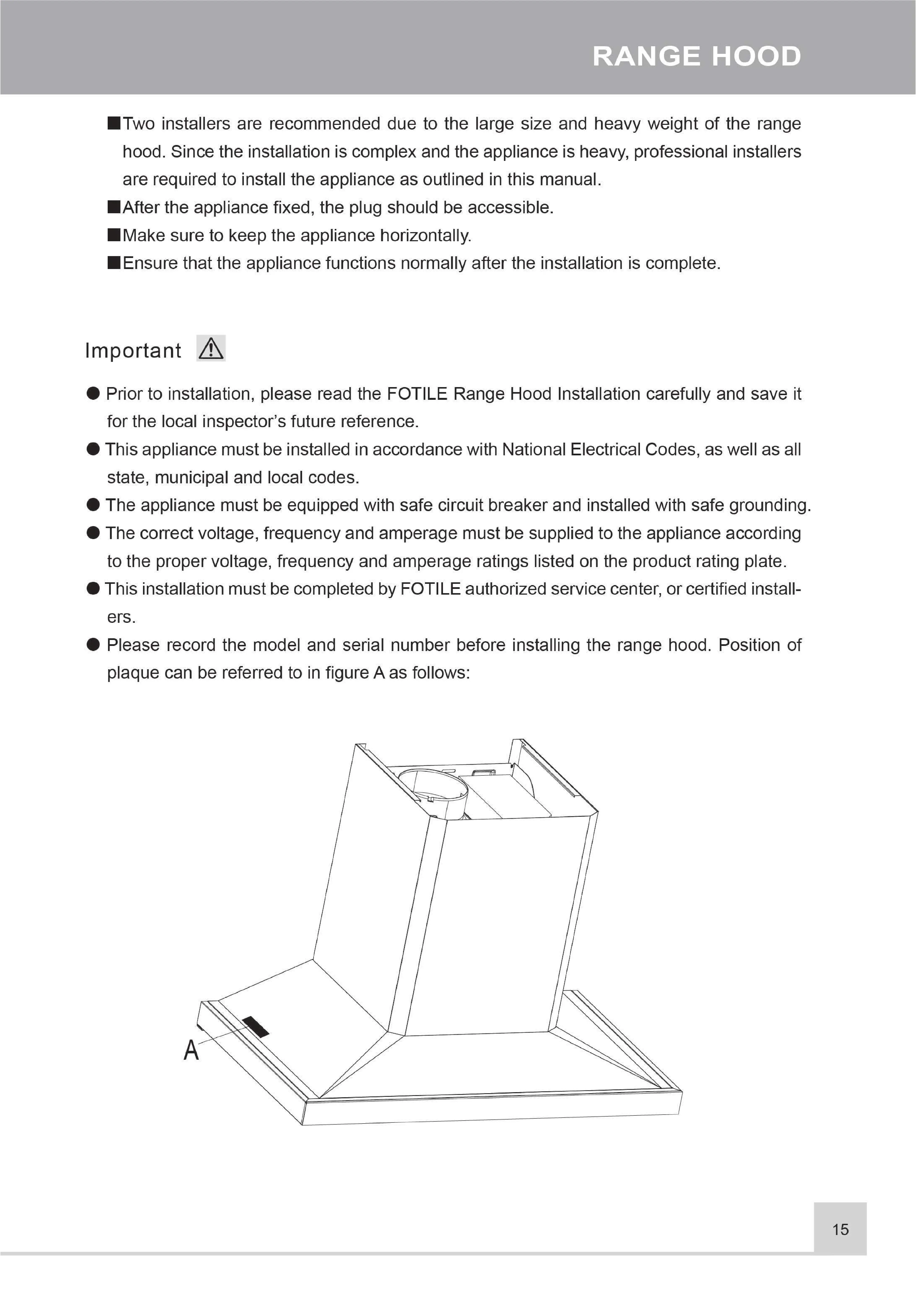

@® Please record the model and serial number before installing the range hood. Position of
plague can be referred to in figure A as follows:
