Preparation
before
installation
1. Warning: Please don't make sundries into exhaust pipe to avoid damaging the range hood.
Estimate the exhaust pipe position. A straight and short exhaust pipe makes
smoke extraction more smooth, please refer to installation diagram.
The joint between exhaust pipe and wall hole should be sealed with tape, and
ensure firm connection between exhaust pipe and exhaust cover.
Too small wall hole will affect smoke extraction, therefore, please broaden the wall
hole to fit exhaust pipe size under safety condition.
2.Tool preparation
Please prepare the following tools before range hood installation (include but not limited
to the following tools).
(1) Impact electric drill (with drillbit of ®10mm ) (2) Cross screwdrive
(3) Measuring taper (4) Gradienter

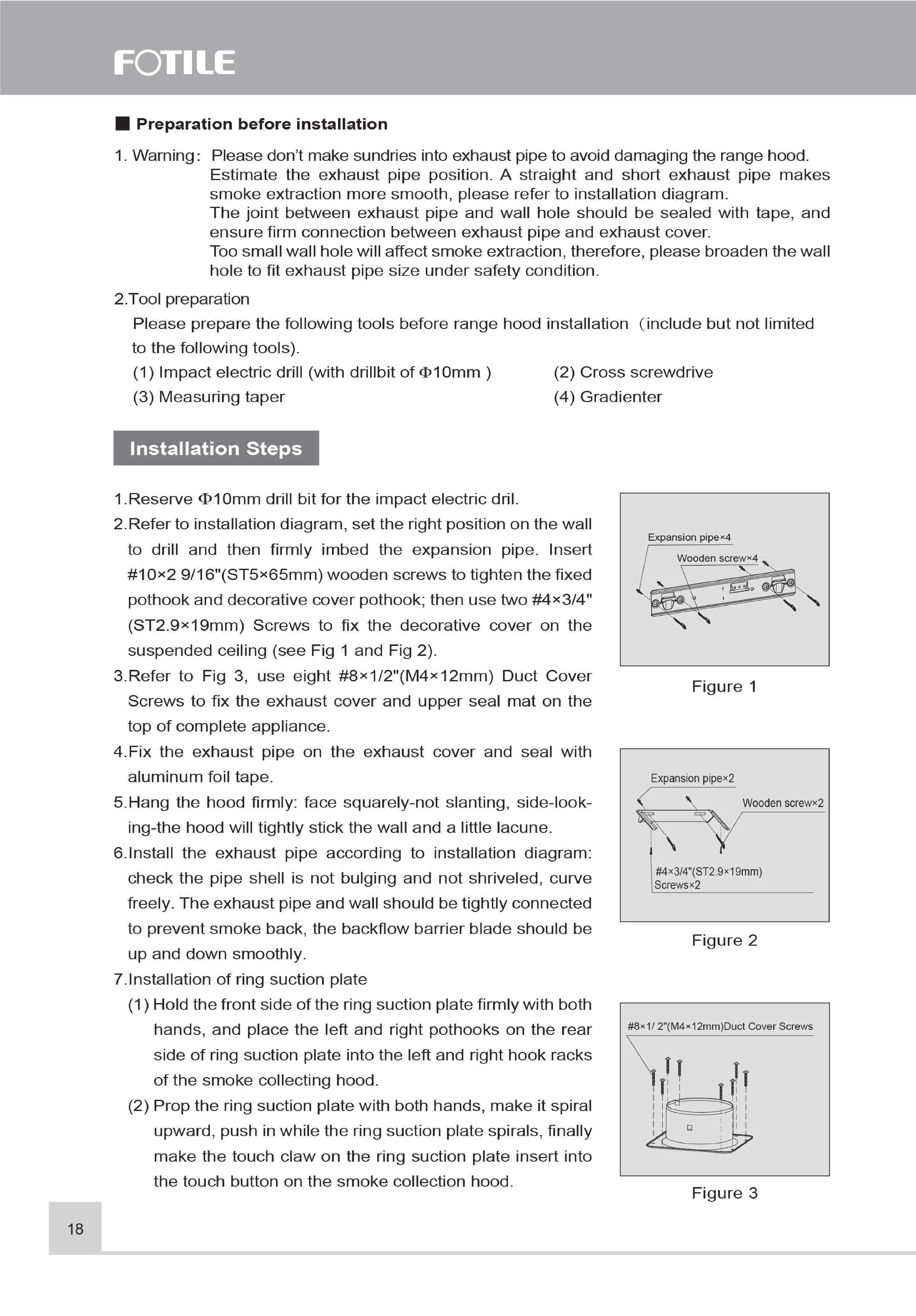

Installation Steps
1.Reserve &10mm drill bit for the impact electric dril.
2 Refer to installation diagram, set the right position on the wall
Expansion pipex4
to drill and then firmly imbed the expansion pipe. Insert /
Wooden screwx=4
#10x2 9/16"(ST5x65mm) wooden screws to tighten the fixed
pothook and decorative cover pothook; then use two #4x3/4"
(ST2.9x19mm) Screws to fix the decorative cover on the
suspended ceiling (see Fig 1 and Fig 2).
3.Refer to Fig 3, use eight #8x1/2"(M4x12mm) Duct Cover
Figure 1
Screws to fix the exhaust cover and upper seal mat on the
top of complete appliance.
4 Fix the exhaust pipe on the exhaust cover and seal with
aluminum foil tape. Expansion pipex2
5.Hang the hood firmly: face squarely-not slanting, side-look- Wooden screwx2
ing-the hood will tightly stick the wall and a little lacune.
6.Install the exhaust pipe according to installation diagram:
#4x3/4"(ST2.9x19mm)
check the pipe shell is not bulging and not shriveled, curve CraneiD
freely. The exhaust pipe and wall should be tightly connected
to prevent smoke back, the backflow barrier blade should be —
up and down smoothly. .
7 .Installation of ring suction plate
(1) Hold the front side of the ring suction plate firmly with both
hands, and place the left and right pothooks on the rear el IR T
side of ring suction plate into the left and right hook racks
of the smoke collecting hood.
(2) Prop the ring suction plate with both hands, make it spiral
upward, push in while the ring suction plate spirals, finally
make the touch claw on the ring suction plate insert into
the touch button on the smoke collection hood. _
Figure 3
18
RANGE HOOD
8.Insert the host power plug into the power outlet.
9.Blower outer cover and decorative cover installation (see Fig 4)
(1) Put the decorative cover inside of the blower outer cover.
(2) Take up the blower outer cover and decorative cover meantime; inject the decorative
cover into decorative cover pothook, then push the decorative cover and blower outer
cover along the decorative cover pothook assembly to the end.
(3) After pushing the decorative cover and blower outer cover to the end, the blower outer
cover will slip down slowly, and inject the blower outer cover buckle to the blower rack,
then insert the blower outer cover to the gap which is between top panel and blower rack.
10.Install anti-collision accessories, firstly determine the magnetic face of anti-collision compo-
nent (see Fig 5), then stick the anti-collision accessories to the corner of the smoke
exhaust (see Fig 6).
11.Install the oil cup (see Fig 7).
