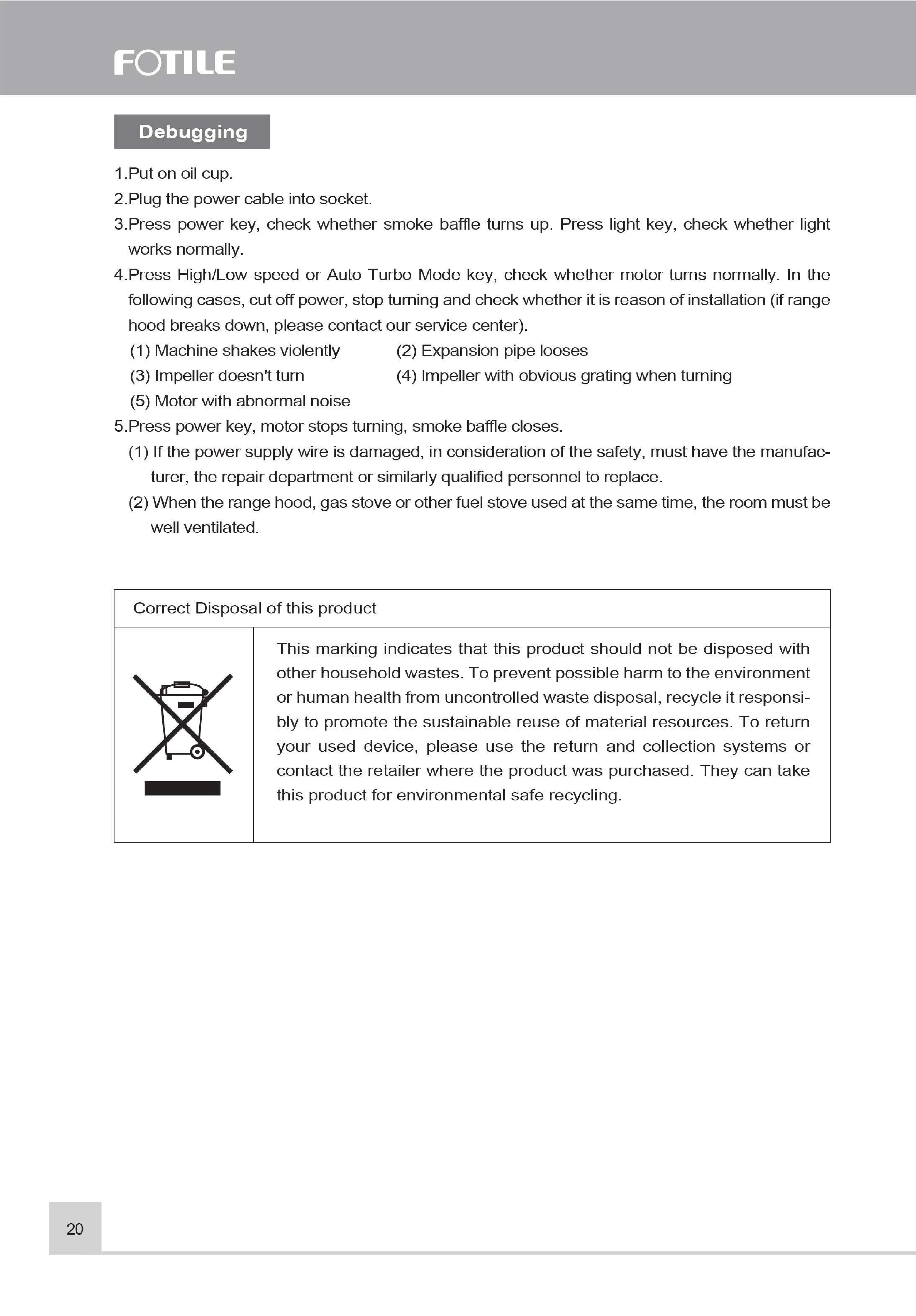

1.Put on oll cup.
2 .Plug the power cable into socket.
3.Press power key, check whether smoke baffle turns up. Press light key, check whether light
works normally.
4 Press High/Low speed or Auto Turbo Mode key, check whether motor turns normally. In the
following cases, cut off power, stop turning and check whether it is reason of installation (if range
hood breaks down, please contact our service center).
(1) Machine shakes violently (2) Expansion pipe looses
(3) Impeller doesn't turn (4) Impeller with obvious grating when turning
(5) Motor with abnormal noise
5.Press power key, motor stops turning, smoke baffle closes.
(1) If the power supply wire is damaged, in consideration of the safety, must have the manufac-
turer, the repair department or similarly qualified personnel to replace.
(2) When the range hood, gas stove or other fuel stove used at the same time, the room must be
well ventilated.
Correct Disposal of this product
This marking indicates that this product should not be disposed with
other household wastes. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, recycle it responsi-
bly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take
this product for environmental safe recycling.
RANGE HOOD
Component Name Diagram
Metal Outlet Pressing Electrical Power \olute Hand- Air inlet Pull-in Connecting Lifting Trim
housing line plate box board Capacitance parts Motor Impeller tight nut ring box rod Fan cover Navigation Towbar board cover
Power line
Pressing
line plate
Rear panel
Foot-pad \’
.
/
fram parts
Front panel
Inside screen
Qutside screen
Hook
Wing suction plate LED light Switch Straight panel Fan outer cover
