2. Assembly.

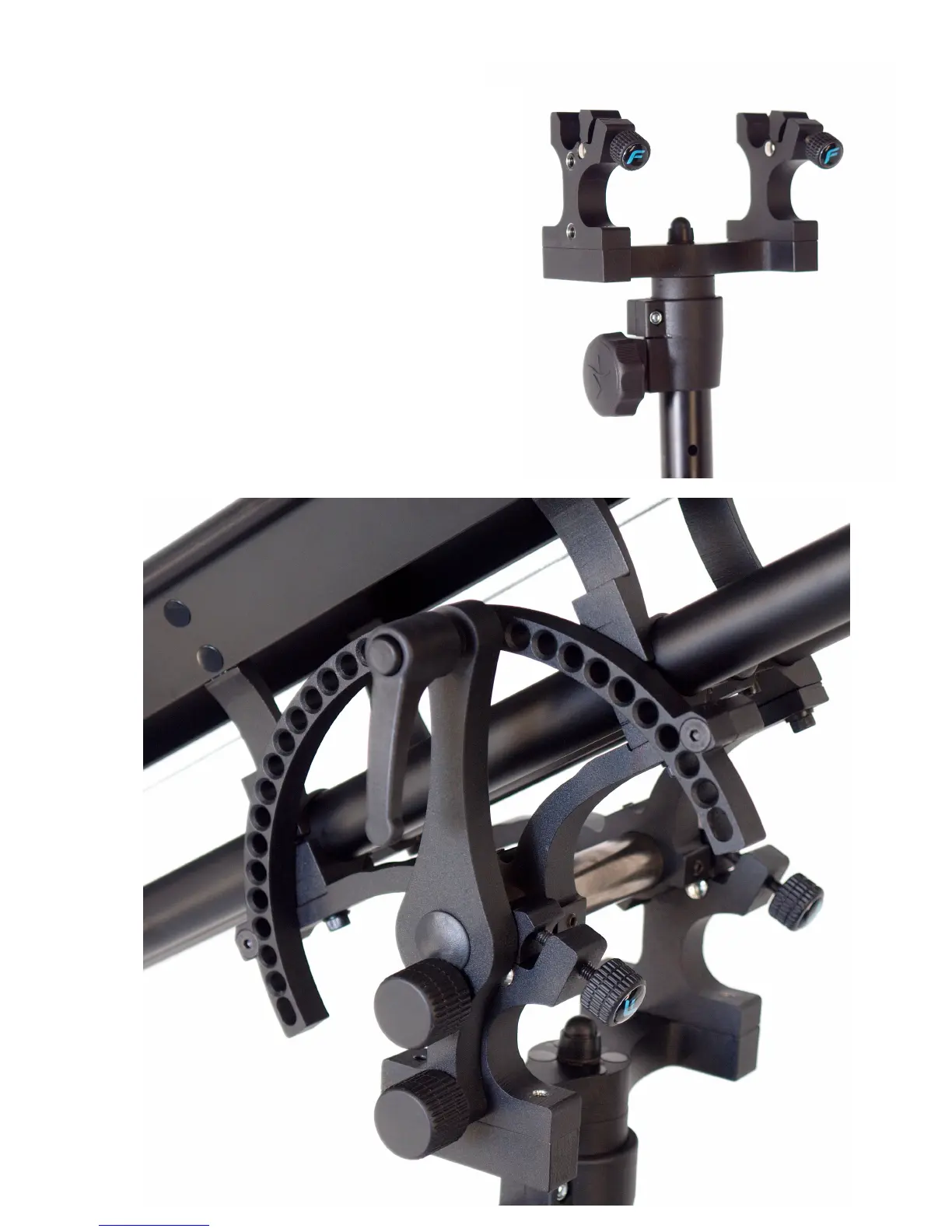

To assemble the SmartCrane “STORK”, you need to
mount the boom (Slider) in the holder on top of the
Tripod (1) and secure it with knobs 2 and 3. Next you
need to put the brake on and lock it with knobs
(5 and 6).
Tripods Head is equipped with horizontal movement
fixing knob (4). Regulating knobs 2 and 3 lets you
adjust vertical arm movement resistance.
Disassembling occurs in similar manner.
