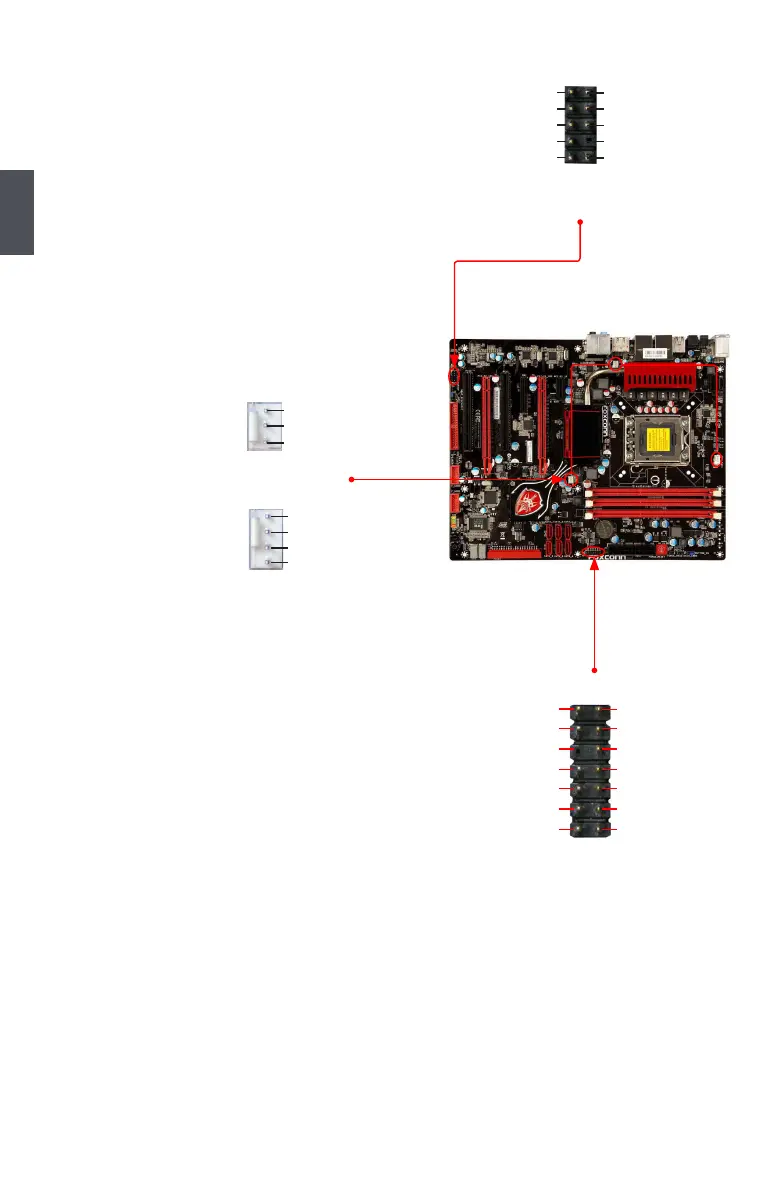

Audio Connector : F_AUDIO
The audio connector supports HD Audio standard. It
provides the Front Audio output choice.
Fan Connectors : CPU_FAN1, SYS_FAN1,
NB_FAN1
There are three fan headers on this motherboard.
These fans can be automatically turned off after the
system enters S3, S4 and S5 sleeping states.
VFD Connector : VFD
The VFD Connector can be connected to the Foxconn
Quantum Force OC Panel, which can be installed in
any standard 5.25" optical drive bay. It can be used
to display the Port80 Debug codes during Bootup,
display the system Real Time Clock, display the system
temperatures as well as monitor and adjust System
voltages and clockspeeds on the y. With several
buttons located on the front panel, you can easily set
the Front Side Bus speed, adjust CPU, DRAM and VTT
NB voltage and change the fan speeds. It supports
proles which can be loaded within fractions of a
second by pushing a single button. You can purchase
it to overclock your system on the y, switch from one
oc prole to another during a benchmark, switch from
gaming mode to cinema or silent mode.
RESET
5V
ISP
GPIO
EMPTY GPIO
GPIO SDA
3.3V SCL
NC RXD
GND TXD
VFD
1 2
13 14
PORT1_L
PORT1_R
PORT2_L
SENSE_SEND
SENSE1_RETURN
PRESENCEJ
EMPTY
SENSE2_RETURN
AUD_GND
1
2
109
F_AUDIO
PORT2_R
S Y S _ F A N 1 /
NB_FAN1
GND
+12V
SENSE
1
CPU_FAN1
GND
POWER
SENSE
CONTROL
1
