Foxtronics FOXCART MARK II - Component Parts List

3448 W. Mockingbird Ln. Dallas, TX 75235 PHONE: 214/358-4425 FAX: 214/358-1519
TITLE: FOXCART COMPONENT PARTS
DRAWING NO: 400-0001-005
PAGE: 1 OF 1
REV: B
DRAWN BY: SE
APPROVED BY:
DATE: 10/01/01
ITEM DESCRIPTION
ON/OFF BREAKER
VOLT METER
LIGHT (GREEN) POWER ON
STEP SWITCH
LIGHT (RED) REVERSE CURRENT
14/28 VDC SWITCH
SOFT START SWITCH
AC RECEPTICLE
AMPMETER
SERVICE PLUG CIRCUIT BREAKER
TRANSFORMER
AMMETER SHUNT
RIGHT DIODE PLATE ASSEMBLY
STABILIZING RESISTOR SOFT START
CAPACITOR (40,000 MF)
REVERSE DIODES
FAN ASSEMBLY
DIODE
MOUNT FAN
AMPMETER RANGE SWITCH
INPUT STRAP BOARD
STEP-DOWN TRANSFORMER
(CONDENSER) 2 MF CAPACITOR
CHOKE
LEFT DIODE PLATE ASSEMBLY LIGHT (WHITE) 14VDC ON
26
25
24
4
22
23
20
27

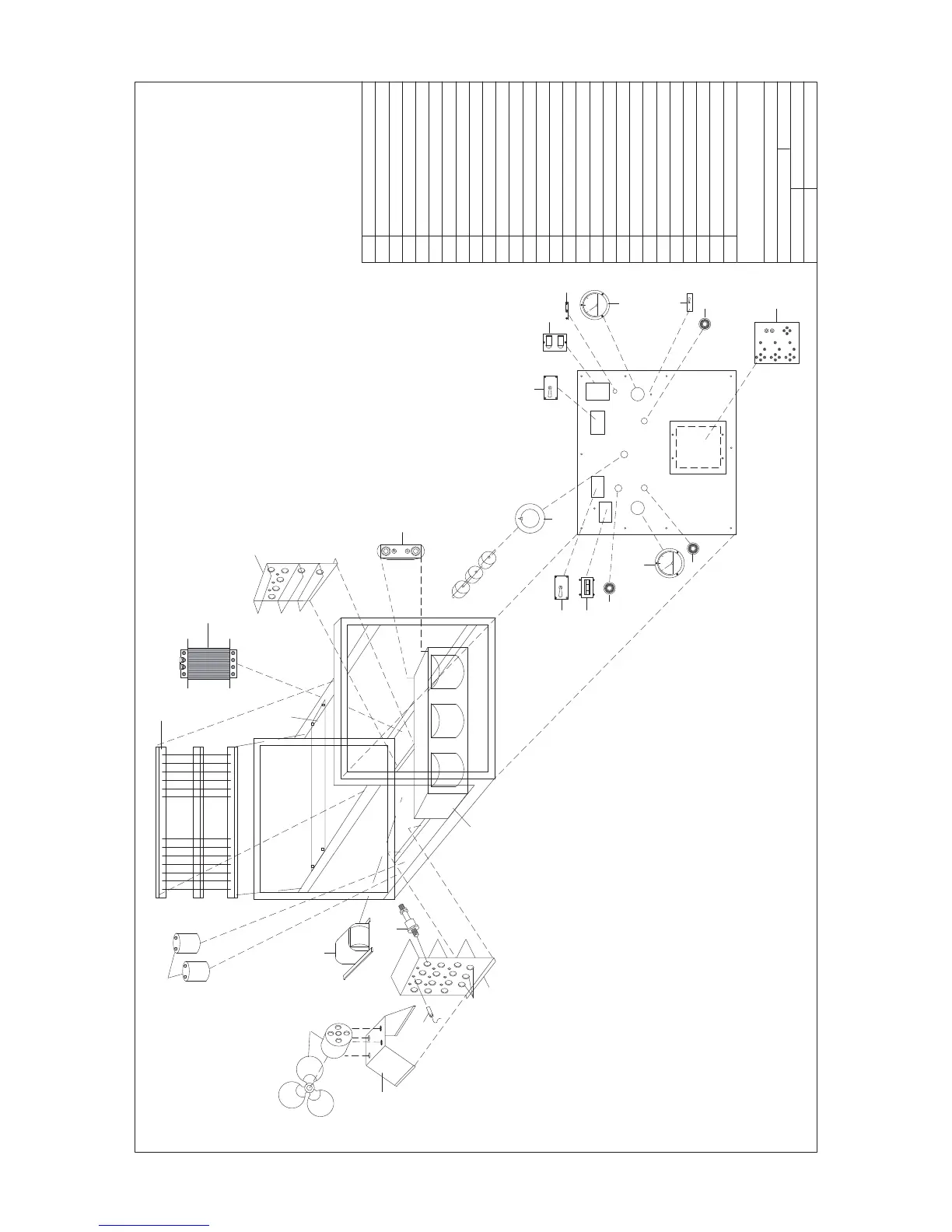

FIGURE 4.
foxtronics
incorporated
15
14
13
12
11
21
17
19
18
16
6
1
2
3
7
8
10
9
5
19
27 26 25
24 23 22 21
20 11
18 17
16
15 14 13
12
9
8 7 6 5 4
3 2 1
10
