8

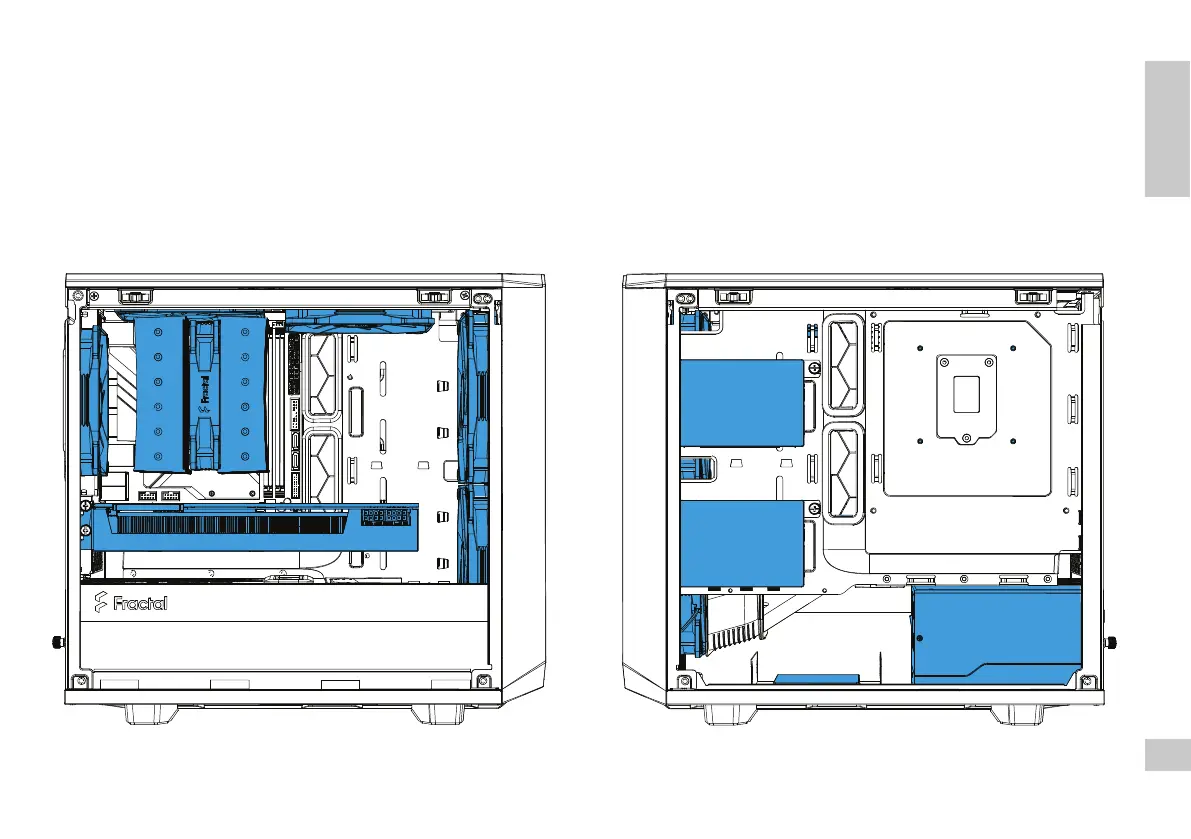

Air Cooling Tower Build
2.5” Drives: 3 Front Fans: 2 x 140 mm
GPU Length: 267 mm (up to 306 mm possible) Top Fans: 2 x 120 mm (see pg. 46)
CPU Cooler Height: 159 mm (up to 167 mm possible) Rear Fan: 1 x 120 mm
PSU Length: 125 mm (with SFX to ATX bracket)
Introduction
Luftkühlung / Montage de refroidissement par air / Sistema de refrigeración por aire / Luftkylningsbygge / Сборка воздушного охлаждения /
標準空冷クーラー構成例 / 风冷散热配置 / 風冷散熱配置
