Note: EF1 welding cables use special 7 pin connectors.

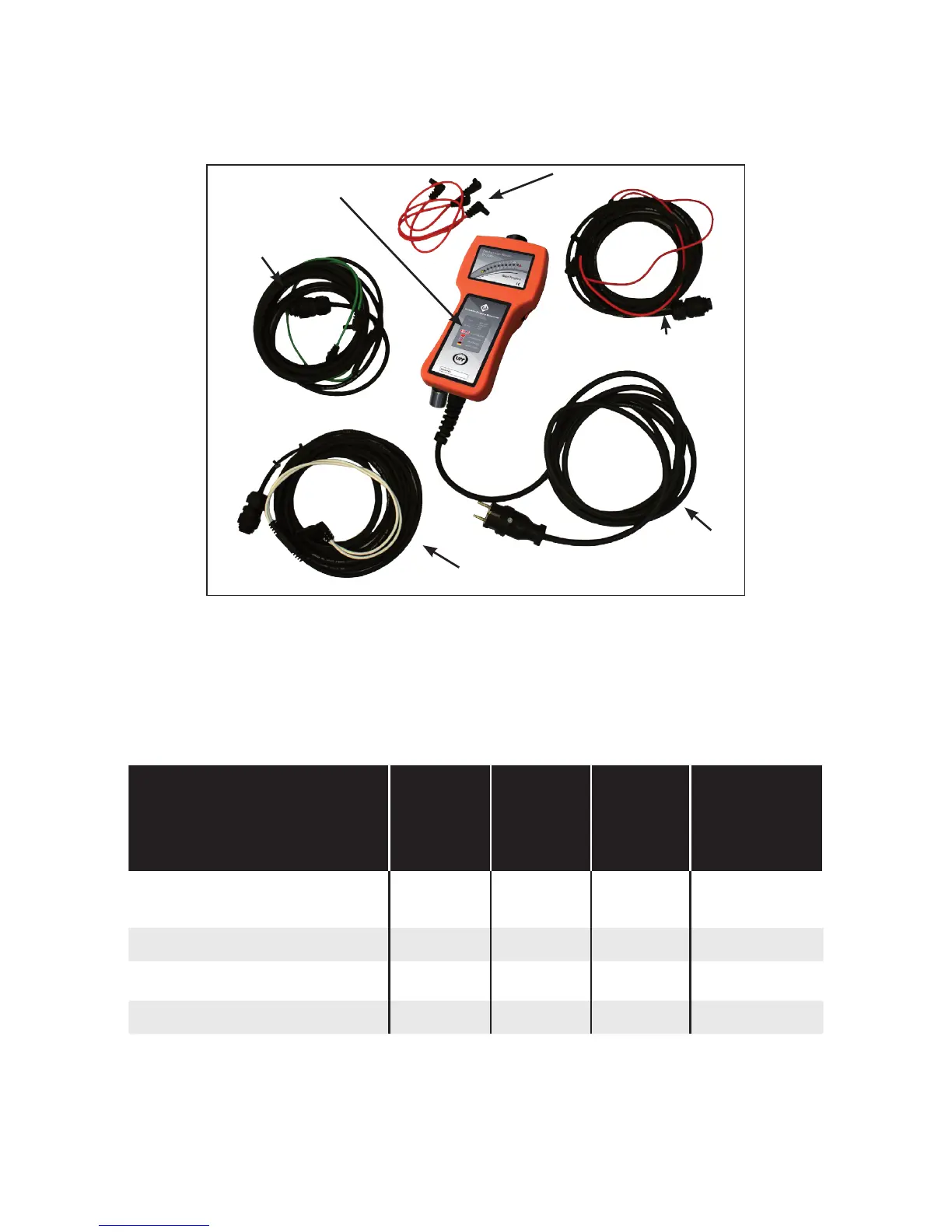

Parts
Bridging cables (x2)
EF
1 Electrofusion Welder
7pin Secondary
welding cable
Power cable
7 Pin Fusion chamber welding cable
Application
The EF1 is designed to automatically weld UPP™ Primary and Secondary
Containment electrofusion ttings, Electrofusion Chambers and Large
diameter 10 amp ttings. This is done by using color-coded welding leads as
shown below.
Type
of
Fitting
Welding
Cable
Colour
Size of
Welding
Pin
(mm)
Current
(amps)
Weld Time
@ 20C
(Seconds)
Primary and Gemini
Secondary ttings
Red 4 4 184
Secondary Green 2 5 80
Fusion Chamber White 2.3 7 360
Large Diameter (10amp) Black 2 10 365
The EF1 can be used in ambient temperatures between -15 °C (5 ºF) and
+45 °C (113 ºF). Only personnel fully trained and certied in the use and
installation of the UPP™ system should use this equipment.
7 pin Primary and Gemini
Secondary welding cable
