FRC InView 360 HD AVM - Connecting ECU to HD Monitor (VGA) and Recorder (CVBS)

p. 14
AVM Around Vehicle Monitoring System Installation Guide
inView 360 HD Installation Guide
© Safe Fleet | July 2020 | All rights reserved
Document Number: XE-SNB100-C00-INSTALLPM-R0A

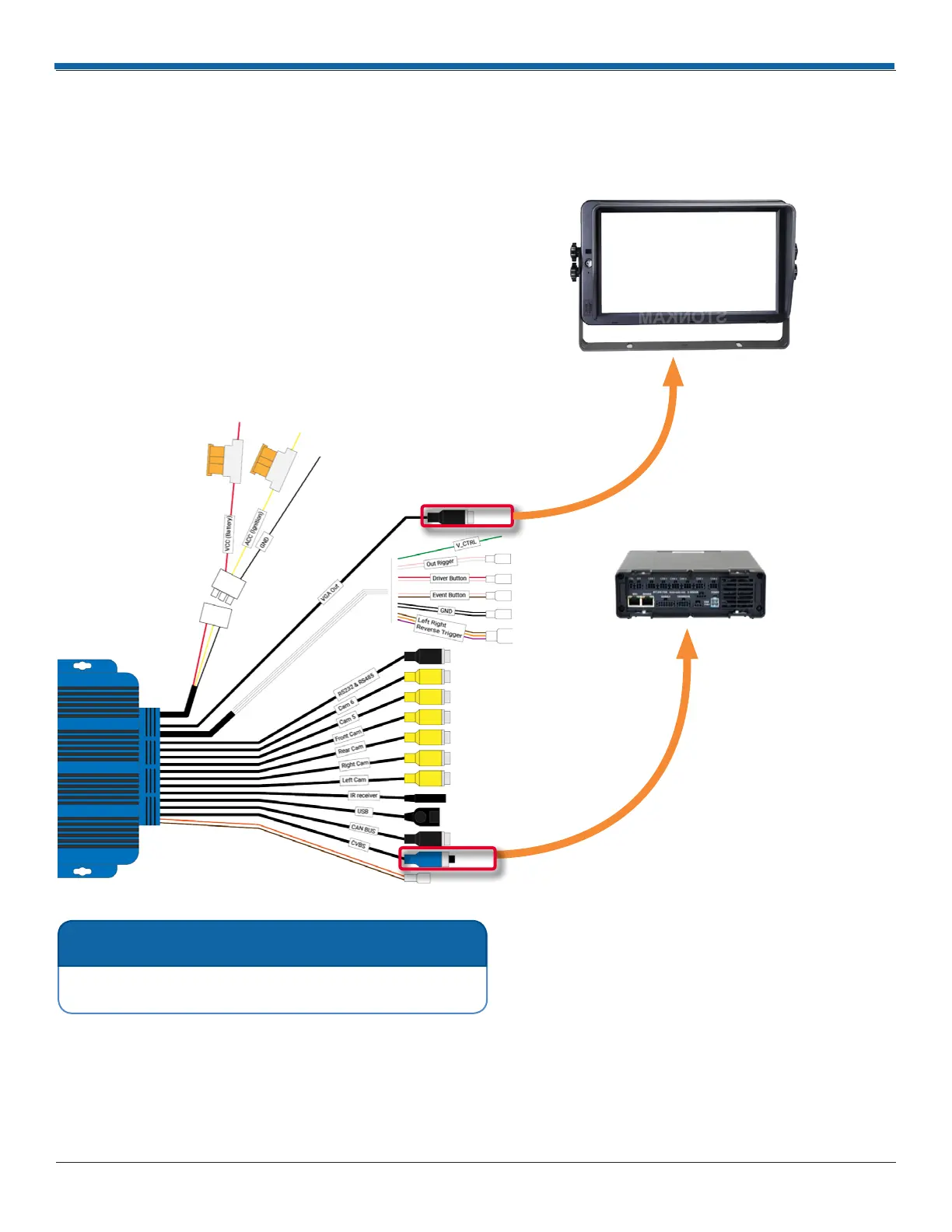

Connecting the ECU to a HD Monitor (via VGA) and a Recorder (via CVBS)
If your monitor is an HD monitor, then you can connect it to the ECU via the VGA connector�
In this scenario, the system can be congured to turn off video to the HD monitor (for safety), and because the recorder is
on the separate CVBS video feed, the recording is not interrupted�
Safe Fleet
Recorder
CVBS
VGA
HD monitor
 NOTE: Spacing the Calibration Pads
Recorders cannot be connected to the VGA video feed�
 NOTE: Connect records to the CVBS connection only
