FRIDEN STW - Page 153

4182
FRIDEN
CALCULATING
MACHINE
CO.,
INC,
Page
|
AUTOMATIC
HALF
CENT
:
.
MODEL
CW,
DW,
STW.

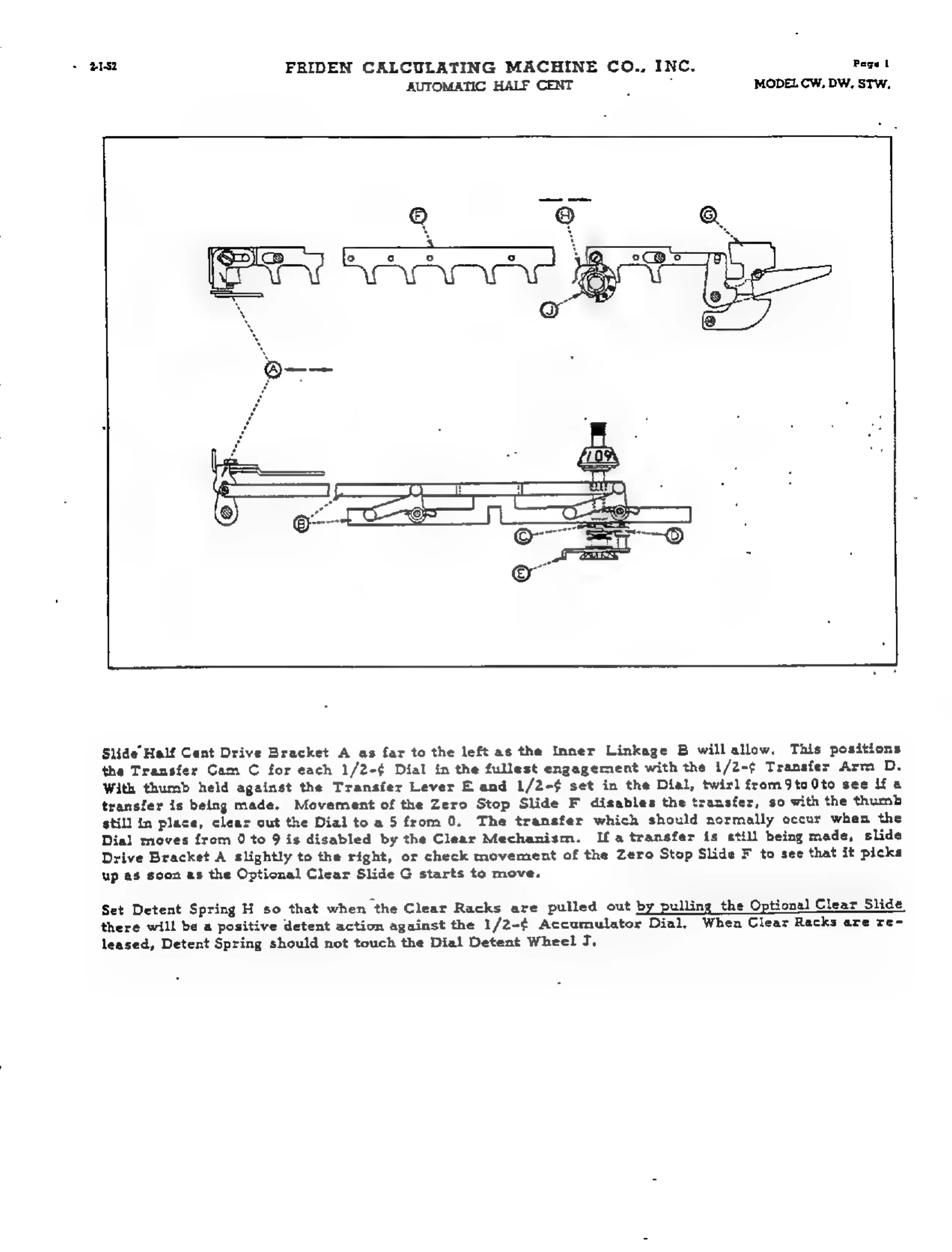

Slide’
Half
Cent
Drive
Bracket
A
as
far
to
the
left
as
the
Inner
Linkage
B
will
allow.
This
positions
the
Transfer
Gam
G
for
each
1/2-¢
Dial
in
the
fullest
engagement
with
the
1/2-¢
Transfer
Arm
D.
With
thumb
held
against
the
Transfer
Lever
E
and
1/2-¢
set
in
the
Dial,
twirl
from9to0to
see
if
a
transfer
is
being
made.
Movement
of
the
Zero
Stop
Slide
F
disables
the
transfer,
so
with
the
thumb
still
in
place,
clear
out
the
Dial
toa
5
from
0,
The
transfer
which
should
normally
occur
when
the
Dial
moves
from
0
to
9
is
disabled
by
the
Clear
Mechanism.
If
a
transfer
is
still
being
made,
slide
Drive
Bracket
A
slightly
to
the
right,
or
check
movement
of
the
Zero
Stop
Slide
F
to
see
that
it
picks
up
as
soon
as
the
Optional
Clear
Slide
G
starts
to
move.
Set
Detent
Spring
H
so
that
when
the
Clear
Racks
are
pulled
out
by
pulling
the
Optional
Clear
Slide
there
will
be
a
positive
detent
action
against
the
1/2-¢
Accumulator
Dial,
When
Clear
Racks
are
re-
leased,
Detent
Spring
should
not
touch
the
Dial
Detent
Wheel
J.
