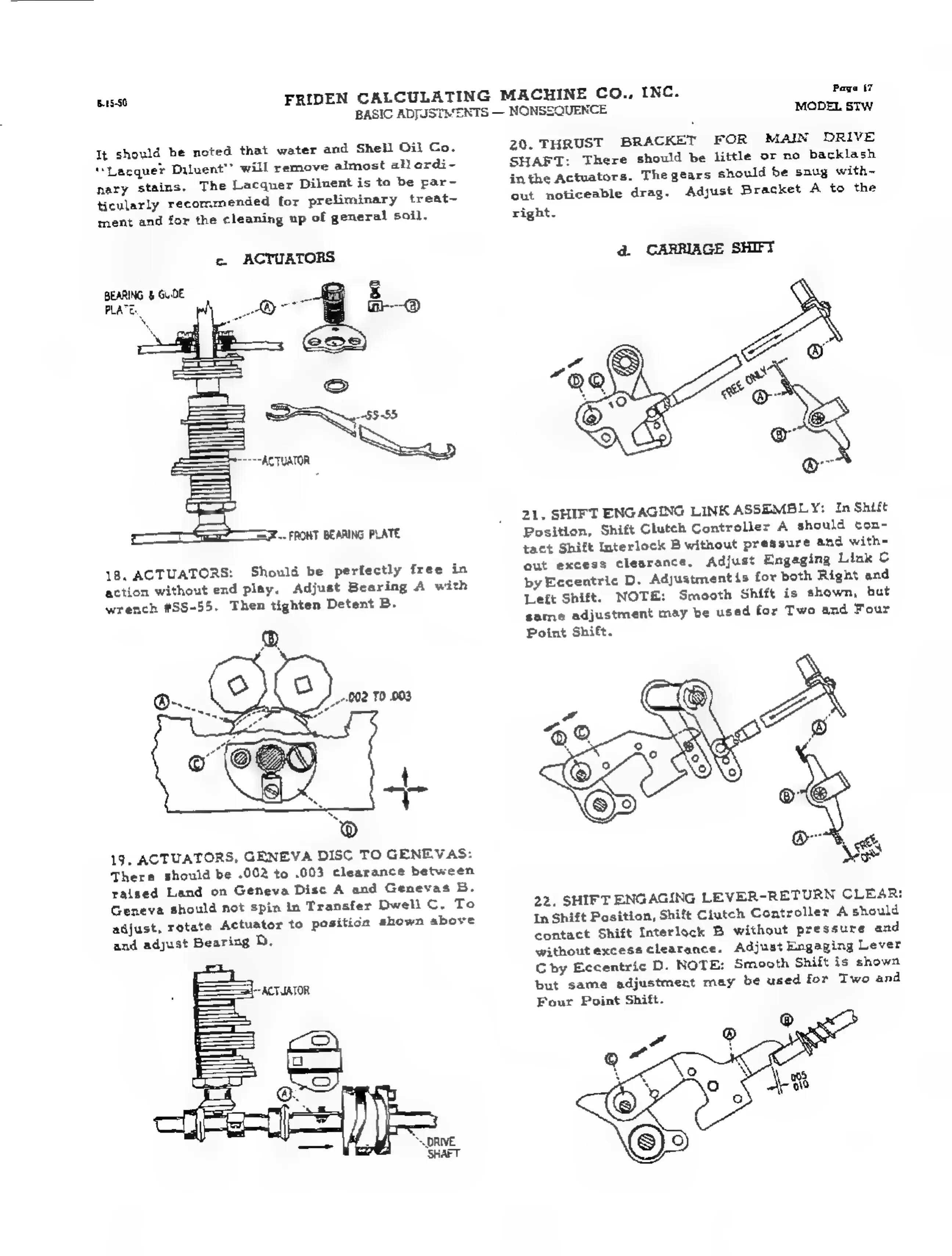

FRIDEN STW - Page 17

B80
FRIDEN
CALCULATING
MACHINE
CO..
INC.
Paya
{7
BASIC
ADJUSTMENTS
—
NONSSQUENCE
It
should
be
noted
that
water
and
Shell
Oil
Co.
‘Lacquer?
Diluent’’
will
remove
almost
all
erdi-
nary
stains,
The
Lacquer
Diluent
is
to
be
par-
ticularly
reeornmended
for
preliminary
treat-
ment
and
for
the
cleaning
up
of
general
soil.
c.
ACTUATORS
PLATE.
er.
FRONT
BEARING
PLATE
18,
ACTUATORS:
Should
be
perfectly
free
in
action
without
end
play,
Adjust
Bearing
A
with
wrench
#SS-55.
Then
tighten
Detent
B.
19.
ACTUATORS,
GRNEVA
DISC
TO
GENE.VAS:
There
should
be
.002
to
.003
clearance
between
raised
Land
on
Geneva
Disc
A
and
Genevas
B.
Geneva
should
not
spin
in
Transfer
Dweli
C.
To
adjust,
rotate
Actuator
to
position
shown
above
and
adjust
Bearing
D.
MODEL STW
20,
THRUST
BRACKET
FOR
MAIN
DRIVE
SHAFT:
There
should
be
little
or
no
backlash
in
the
Actuators.
The
gears
should
be
snug
with-
out
noticeable
drag.
Adjust
Bracket
A
to
the
right.
@.
CARRIAGE
SHIFT
21.
SHIFT
ENGAGING
LINK
ASSEMBLY:
In
Shift
Position,
Shift
Clutch
Controller
A
should
con-
tact
Shift
Interlock
B
without
pressure
and
with-
out
excess
clearance.
Adjust
Engaging
Link
©
by
Eccentric
D.
Adjustmentis
for
poth
Right
and
Left
Shift.
NOTE:
Smooth
Shift
is
shown,
bat
same
adjustment
may
be
used
for
Two
and
Four
Point
Shift.
22.
SHIFT
ENGAGING
LEVER-RETURN
CLESR:
In
Shift
Position,
Shift
Clutch
Controller
A
should
contact
Shift
Interlock
B
without
pressure
and
without
excess
clearance.
Adjust
Engaging
Lever
C
by
Eccentric
D.
NOTE:
Smooth
Shift
is
shown
but
same
adjustment
may
be
used
for
Two
and
Four
Point
Shift.
