61550
FRIDEN
CALCULATING
MACHINE
CO..
INC.
Paya
25

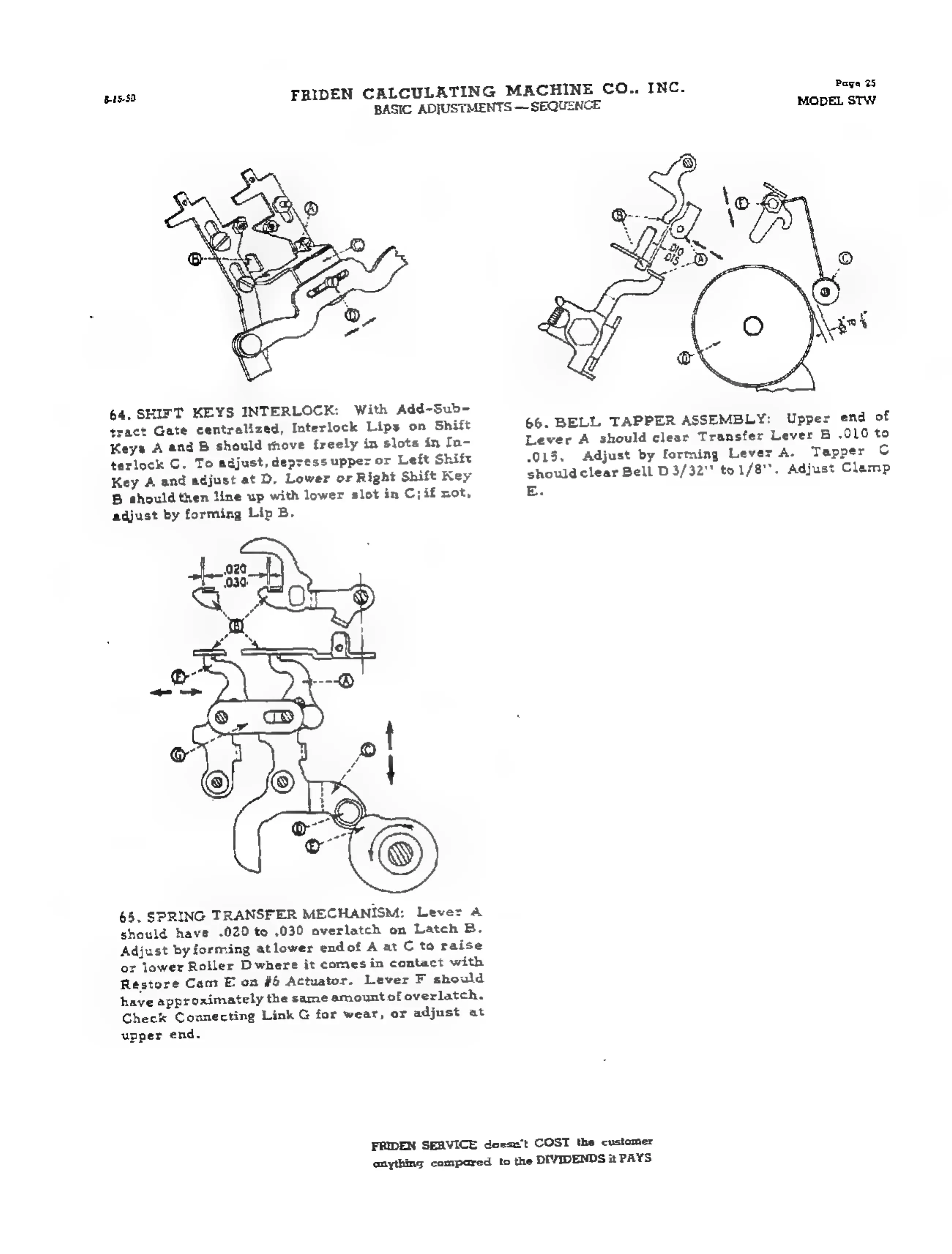

BASIC
ADIUSTMENTS
~
SEQUENCE
MODEL
STW
64.
SHIFT
KEYS
INTERLOCK:
With
Add-Sub-
tract
Gate
centralized,
Interlock
Lips
on
Shift
Keys
A
and
B
should
move
freely
in
slots
in
In-
terlock
CG,
To
adjust,
depress
upper
or
Left
Shift
Key
A
and
adjust
at
D,
Lower
or
Right
Shift
Key
B
should
then
line
up
with
lower
slot
in
C;if
not,
adjust
by
forming
Lip
B.
+t
Q
65,
SPRING
TRANSFER
MECHANISM:
Lever
&
should
have
.020
te
.030
averlatch
on
Latch
B.
Adjust
by
forming
atlower
endof
A
at
C
to
raise
or
lower
Roller
Dwhere
it
comes
in
contact
with
Restore
Cam
E
on
#6
Actuator.
Lever
F
should
have
approximately
the
same
amountof
overlatch.
Check
Connecting
Link
G
for
wear,
or
adjust
at
upper
end.
66.
BELL
TAPPER
ASSEMBLY:
Upper
end
of
Lever
A
should
clear
Transfer
Lever
B
.010
to
“013.
Adjust
by
forming
Lever
A.
Tapper
©
should
clear
Bell
D
3/32"
to1/8"".
Adjust
Clamp
E.
FRIDEN
SERVICE
dcesn’t
COST
the
customer
anything
compared
to
the
DIVIDENDS
it
PAYS
