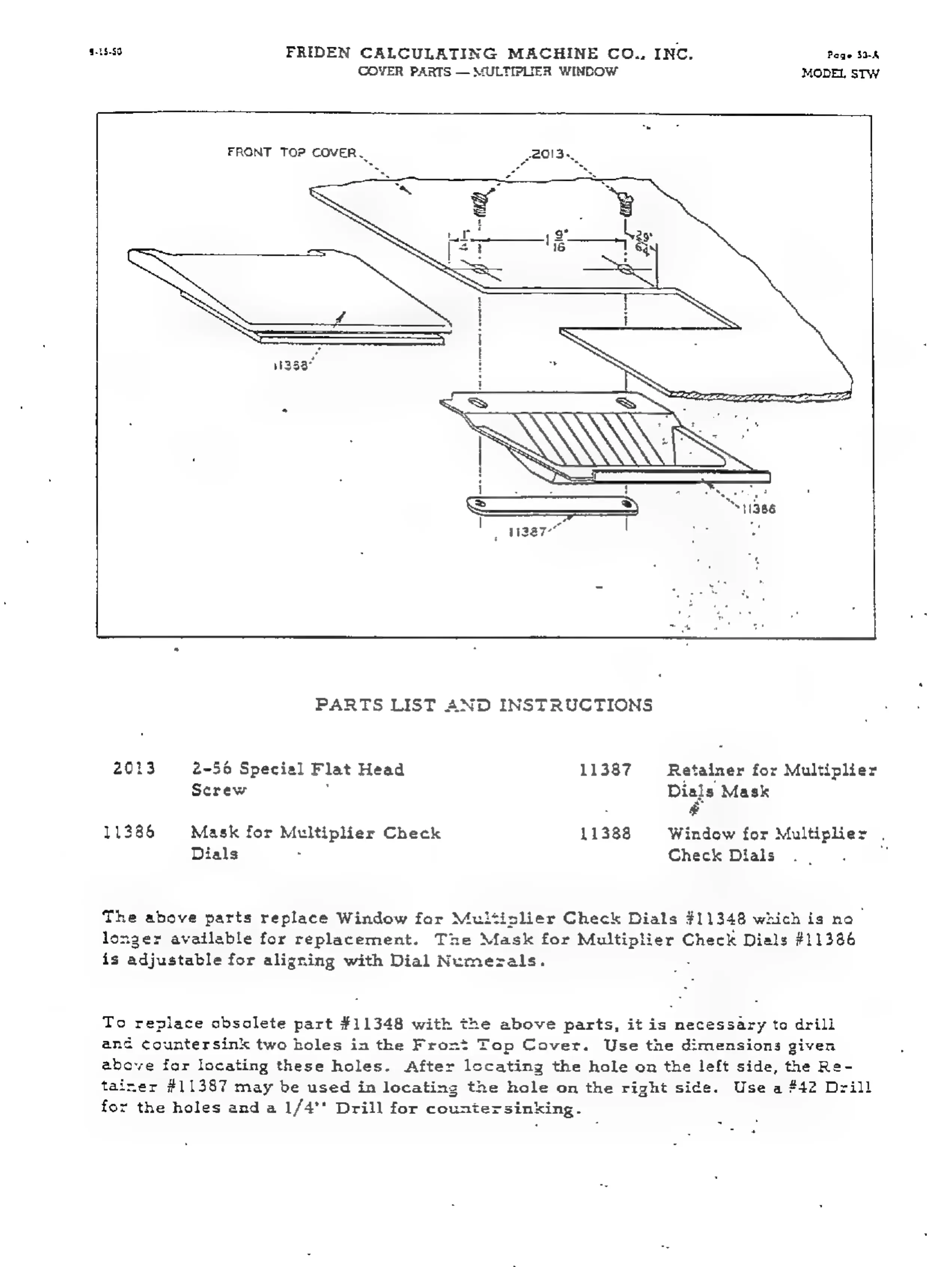

9-18-80

FRIDEN

CALCULATING

MACHINE

CO.,

INC.

Poge

33-4

COVER

PARTS

—

MULTIPLIER

WINDOW

MODEL

STW

FRONT

TOP

COVER.

20136

<n.

»

1386

PARTS

LIST

AND

INSTRUCTIONS

2013

2-56

Special

Flat

Head

11387

Retainer

for

Multiplier

Screw

Dials

Mask

#

11386

Mask

for

Multiplier

Check

11388

Window

for

Multiplier

Dials

‘

Check

Dials

s

The

above

parts

replace

Window

for

Multiplier

Check

Dials

#11348

which

is

no

longer

available

for

replacement.

The

Mask

for

Mapper

€

Check

Dials

#11386

is

adjustable

for

aligning

with

Dial

Numerals.

To

replace

obsolete

part

#11348

with

the

above

parts,

itis

necessary

to

drill

and

countersink

two

holes

in

the

Fron:

Top

Cover.

Use

the

dimensions

given

above

far

locating

these

holes.

After

locating

the

hole

on

the

left

side,

the

Re-

tainer

#11387

may

be

used

in

locating

the

hole

on

the

right

side.

Use

a

#42

Drill

for

the

holes

and

a

1/4"'

Drill

for

countersinking.
