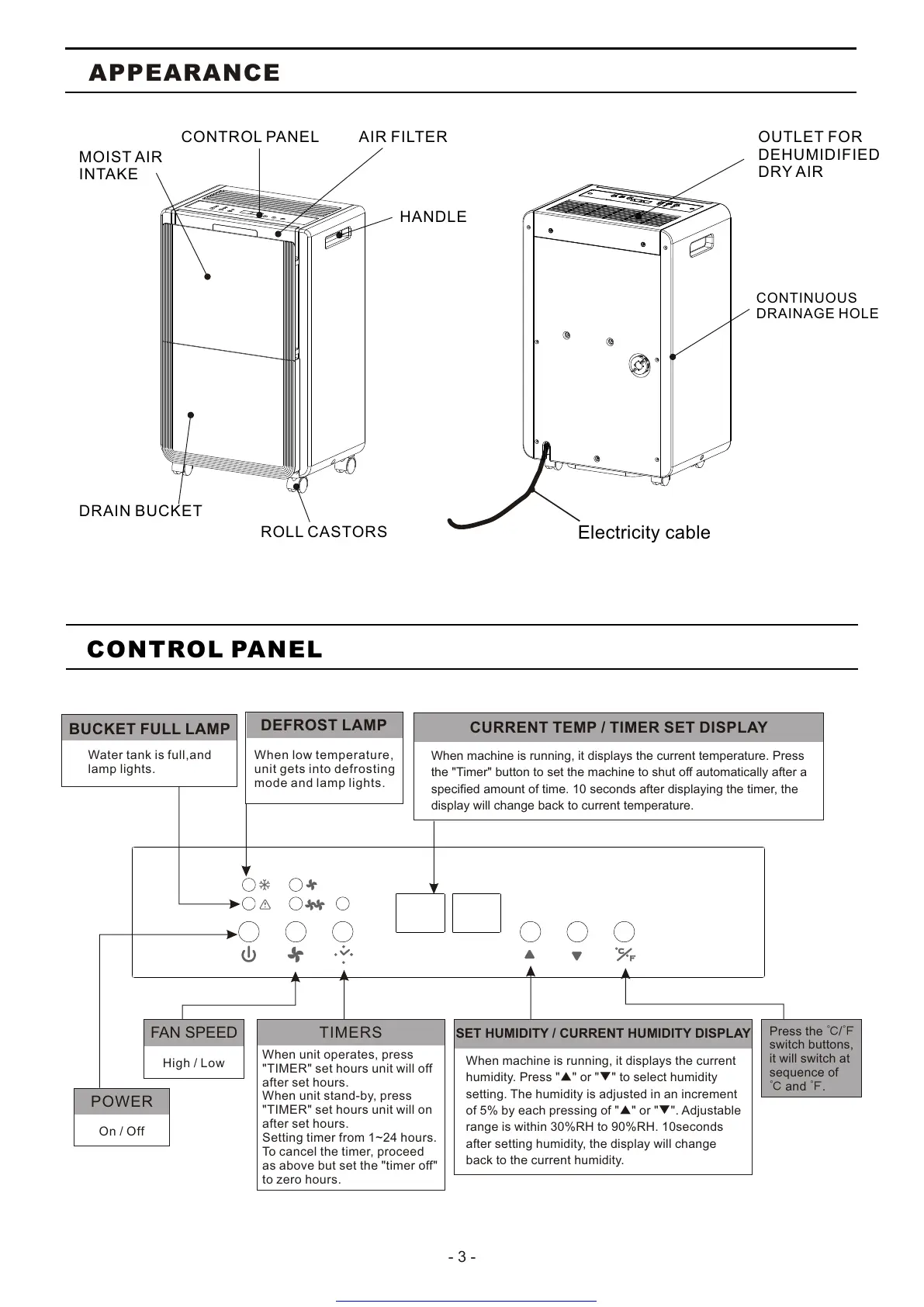

APPEARANCE
- 3 -
OUTLET FOR
DEHUMIDIFIED
DRY AIR
CONTINUOUS
DRAINAGE HOLE
Electricity cable
ROLL CASTORS
DRAIN BUCKET
MOIST AIR
INTAKE
HANDLE
CONTROL PANEL
AIR FILTER
BUCKET FULL LAMP
Water tank is full,and
lamp lights.
FAN SPEED
High / Low
POWER
On / Off
CONTROL PANEL
DEFROST LAMP
When low temperature,
unit gets into defrosting
mode and lamp lights.
TIMERS
When unit operates, press
"TIMER" set hours unit will off
after set hours.
When unit stand-by, press
"TIMER" set hours unit will on
after set hours.
Setting timer from 1~24 hours.
To cancel the timer, proceed
as above but set the "timer off"
to zero hours.
When machine is running, it displays the current temperature. Press
the "Timer" button to set the machine to shut off automatically after a
specified amount of time. 10 seconds after displaying the timer, the
display will change back to current temperature.
CURRENT TEMP / TIMER SET DISPLAY
When machine is running, it displays the current
humidity. Press "▲" or "▼" to select humidity
setting. The humidity is adjusted in an increment
of 5% by each pressing of "▲" or "▼". Adjustable
range is within 30%RH to 90%RH. 10seconds
after setting humidity, the display will change
back to the current humidity.
SET HUMIDITY / CURRENT HUMIDITY DISPLAY
Press the ℃/℉
switch buttons,
it will switch at
sequence of
℃ and ℉.
