EVAPORATOR
CONDENSER
CAPILLARY TUBE
DRYER
COMPRESSOR ASS'Y
FAN MOTOR
PTC(HEATER)
- 7 -

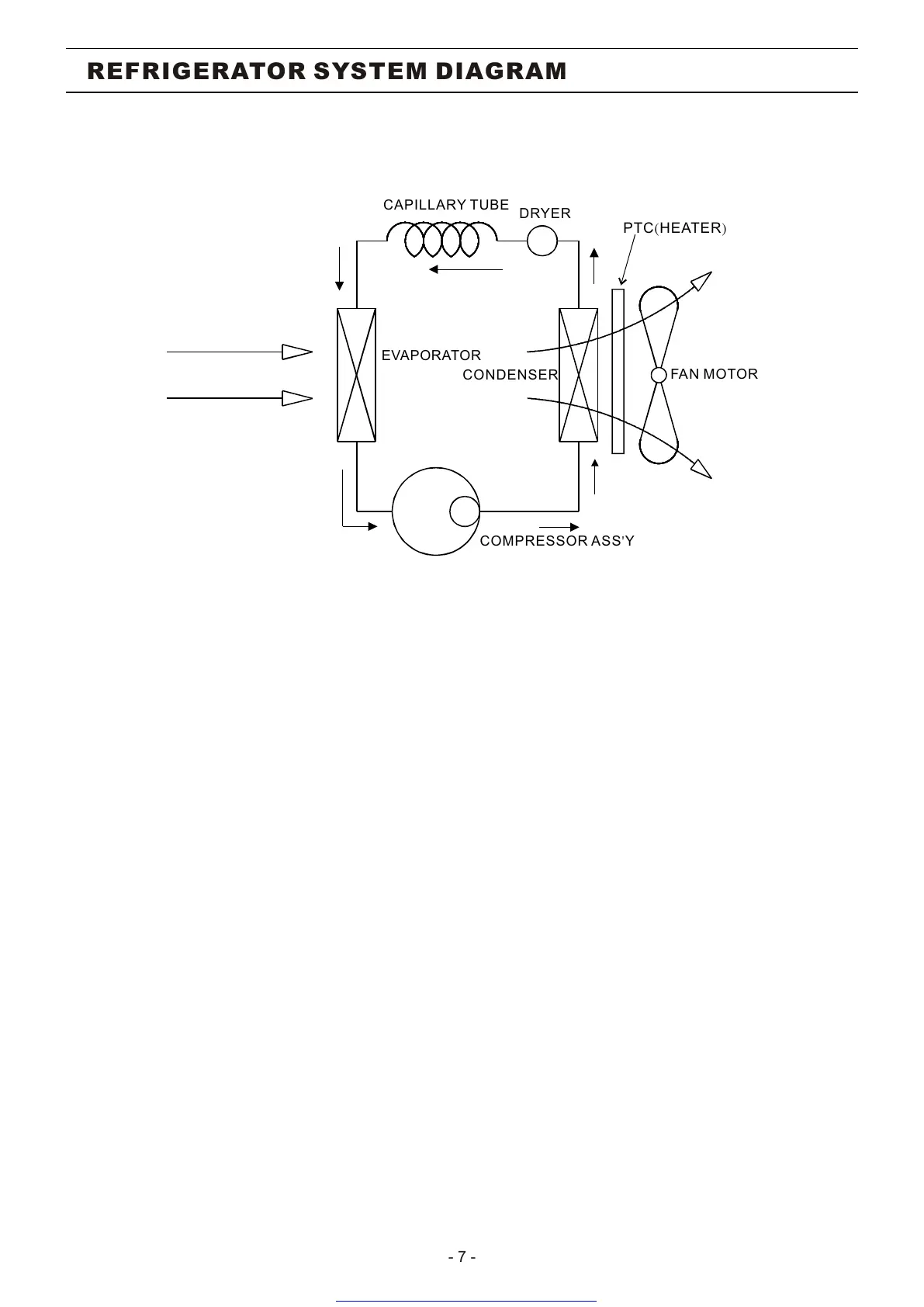

REFRIGERATOR SYSTEM DIAGRAM
