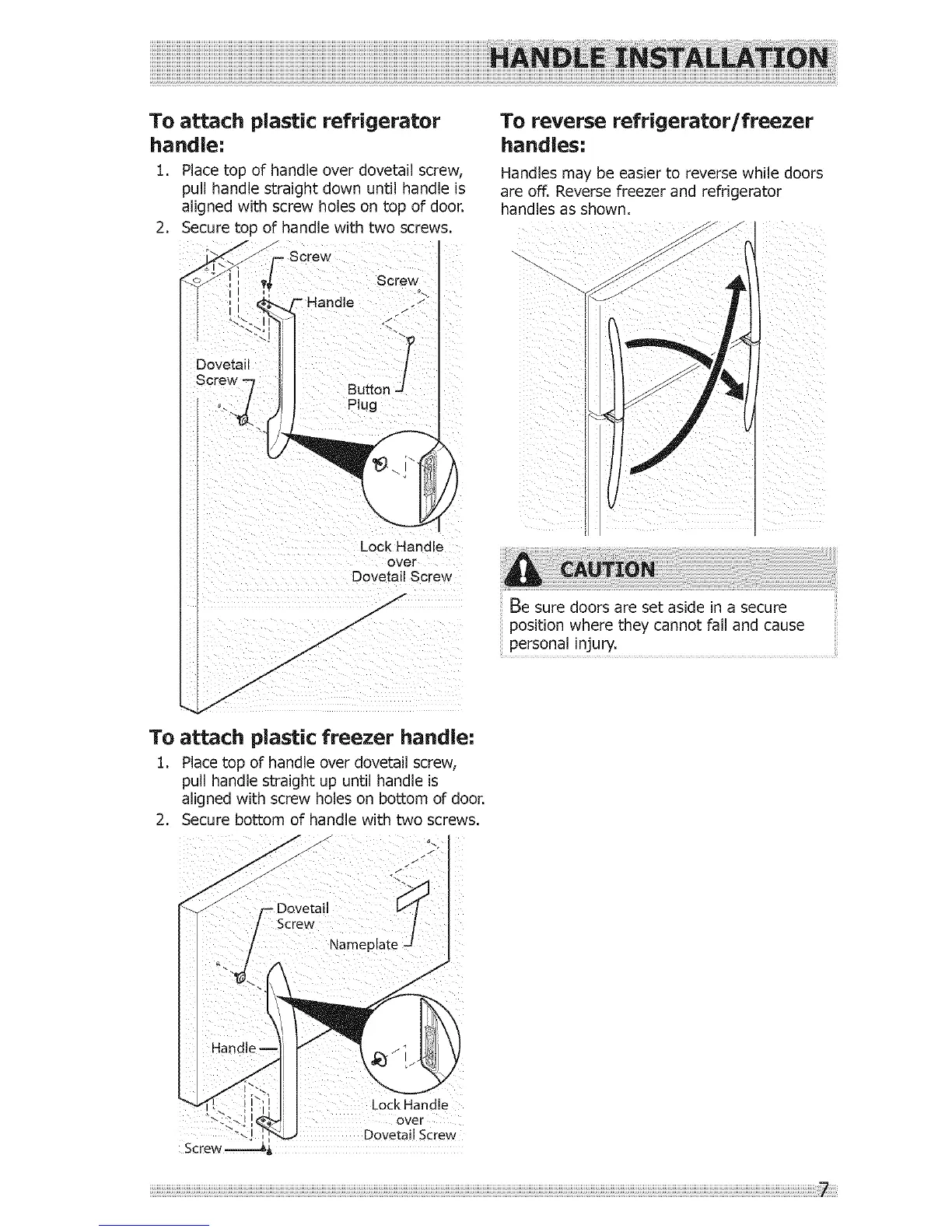

To attach plastic refrigerator
handle:
1. Place top of handle over dovetail screw,
pull handle straight down until handle is
aligned with screw holes on top of door.
2. Secure top of handle with two screws.
Screw
Sutton J
Plug
Lock Handle
over
Dovetail Screw
/
/
To attach plastic freezer handle:
1. Place top of handle over dovetail screw,
pull handle straight up until handle is
aligned with screw holes on bottom of door.
2. Secure bottom of handle with two screws.
To reverse refrigerator/freezer
handles:
Handles may be easier to reverse while doors
are off. Reverse freezer and refrigerator
handles as shown.
Be sure doors are set aside in a secure
personalpositionwhereinjury, they cannot fall and cause
Lock Handle
over
Dovetail Screw
