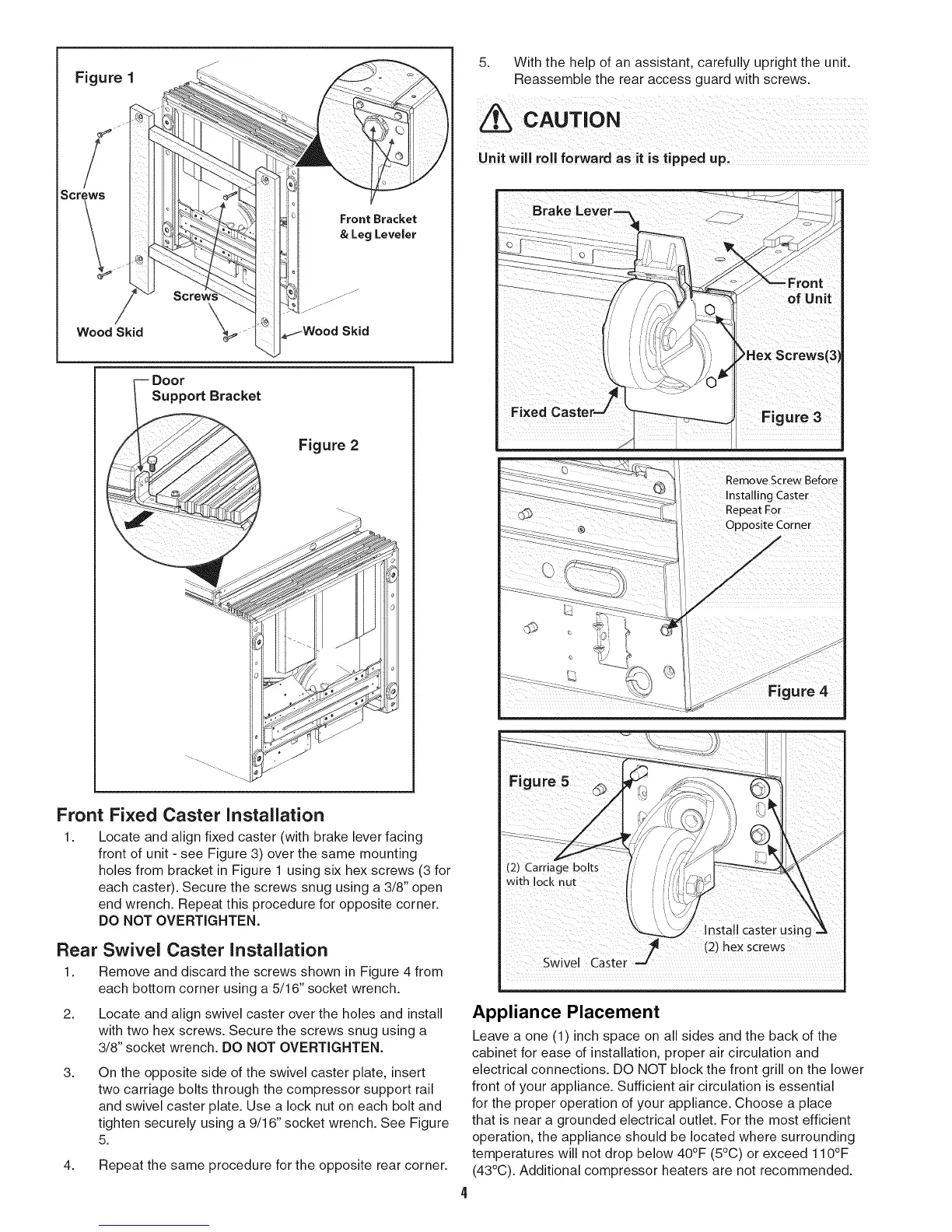

Figure 1
5,
With the help of an assistant, carefully upright the unit.
Reassemble the rear access guard with screws.
Screws
Unit will roll fo rward as it is ti pped up.
Wood Skid 4_Wood Skid
Door
Support Bracket
Figure 2
Remove Screw Befor e I
Instal!ing Caster I
Repeat Eor
Front Fixed Caster Installation
1. Locate and align fixed caster (with brake lever facing
front of unit - see Figure 3) over the same mounting
holes from bracket in Figure 1 using six hex screws (3 for
each caster). Secure the screws snug using a 3/8" open
end wrench. Repeat this procedure for opposite corner.
DO NOT OVERTIGHTEN.
Rear Swivel Caster Installation
1. Remove and discard the screws shown in Figure 4 from
each bottom corner using a 5/16" socket wrench.
2,
Locate and align swivel caster over the holes and install
with two hex screws. Secure the screws snug using a
3/8" socket wrench. DO NOT OVERTIGHTEN.
3,
On the opposite side of the swivel caster plate, insert
two carriage bolts through the compressor support rail
and swivel caster plate. Use a lock nut on each bolt and
tighten securely using a 9/16" socket wrench. See Figure
5.
4. Repeat the same procedure for the opposite rear corner.
Appliance Placement
Leave a one (1) inch space on all sides and the back of the
cabinet for ease of installation, proper air circulation and
electrical connections. DO NOT block the front grill on the lower
front of your appliance. Sufficient air circulation is essential
for the proper operation of your appliance. Choose a place
that is near a grounded electrical outlet. For the most efficient
operation, the appliance should be located where surrounding
temperatures will not drop below 40°F (5°C) or exceed 110°F
(43°C). Additional compressor heaters are not recommended.
4
