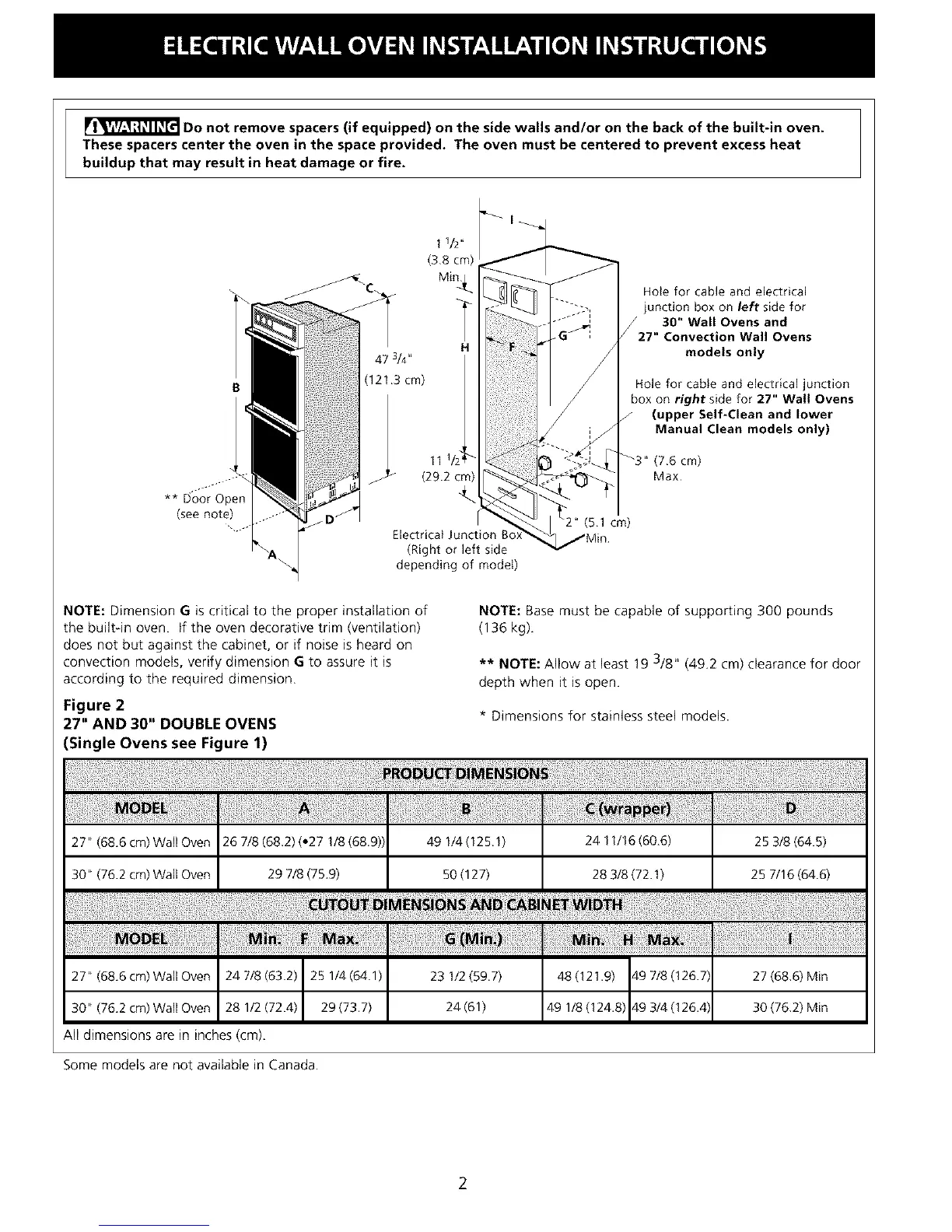

_I,'_V_'_H_ll_[el Do not remove spacers (if equipped) on the side wails and/or on the back of the built-in oven.
These spacers center the oven in the space provided. The oven must be centered to prevent excess heat
buildup that may result in heat damage or fire.
I 1/2"
depending of model)
NOTE: Dimension G is critical to the proper installation of
the built-in oven. If the oven decorative trim (ventilation)
does not but against the cabinet, or if noise is heard on
convection models, verify dimension G to assure it is
according to the required dimension.
Figure 2
27" AND 30" DOUBLE OVENS
(Single Ovens see Figure 1)
NOTE: Base must be capable of supporting 300 pounds
(136 kg).
** NOTE: Allow at least 19 3/8" (49.2 cm) clearance for door
depth when it is open.
* Dimensions for stainless steel models.
27" (68.6 cm) Wall Oven 26 7/8 (68.2) (,27 1/8 (68.9)) 49 1/4(125.1)
30 '_(76.2 cm) Wall Oven 29 7/8 (75.9) 50 (127)
24 11/16 (60.6) 25 3/8 (64.5)
28 3/8 (72.1) 25 7/16 (64.6)
27" (68.6 cm) Wall Oven 247/8(63.2) 251/4(64.1)
30" (76.2 cm) Wall Oven 28 1/2 (72.4) 29 (73.7)
All dimensions are in inches (cm).
Some models are not available in Canada.
231/2(59.7) 48(121.9) 497/8(126.7 27 (68.6) Min
24(61) 491/8(124.8) 493/4(126.4 30 (76.2) Min
