Only certain cooktop models may be installed
over certain built-in electric oven models, listed by
the MFG ID number (see the insert sheet included
in the literature package).
To reduce the risk of
personal injury and
tipping the wall oven,
the wall oven must be
secured to the cabinet(s)
by properly installed
anti-tip (mounting)
screws.
208/240V junction box for
built-in oven.
4 1/2"
(11.4 cm)
Max.*
Side filler panels are necessary to
isolate the unit from adjoining
cabinets. Panel height should
allow for installation of approved
cooktop models.
36" Min.
(91.4 cm)
Use 3/4" (1.9 cm) plywood, installed
on two runners, flush with toe plate.
Must be capable of supporting 150
pounds (68 kg).
Cut an opening in wood base
minimum 9" x 9", 2" (23 x 23, 5
cm) from left side filler panel, to
route armored cable to junction box
or fuse box.
* If no cooktop is installed
directly over the oven unit, 5"
(12.7 cm) maximum is
allowed.

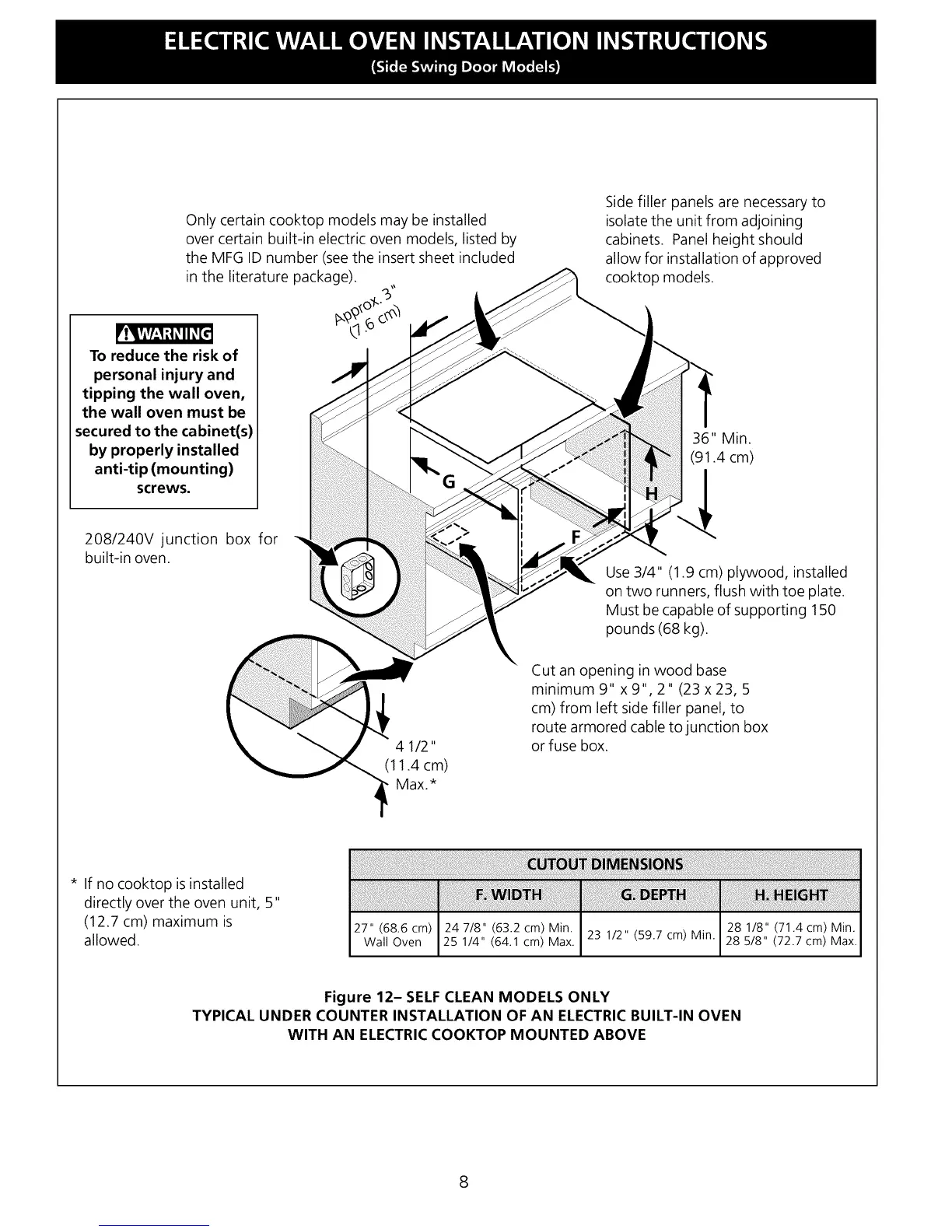

Figure 12- SELF CLEAN MODELS ONLY
TYPICAL UNDER COUNTER INSTALLATION OF AN ELECTRIC BUILT-IN OVEN
WITH AN ELECTRIC COOKTOP MOUNTED ABOVE
8
