ELECTRIC WALL OVEN INSTALLATION INSTRUCTIONS

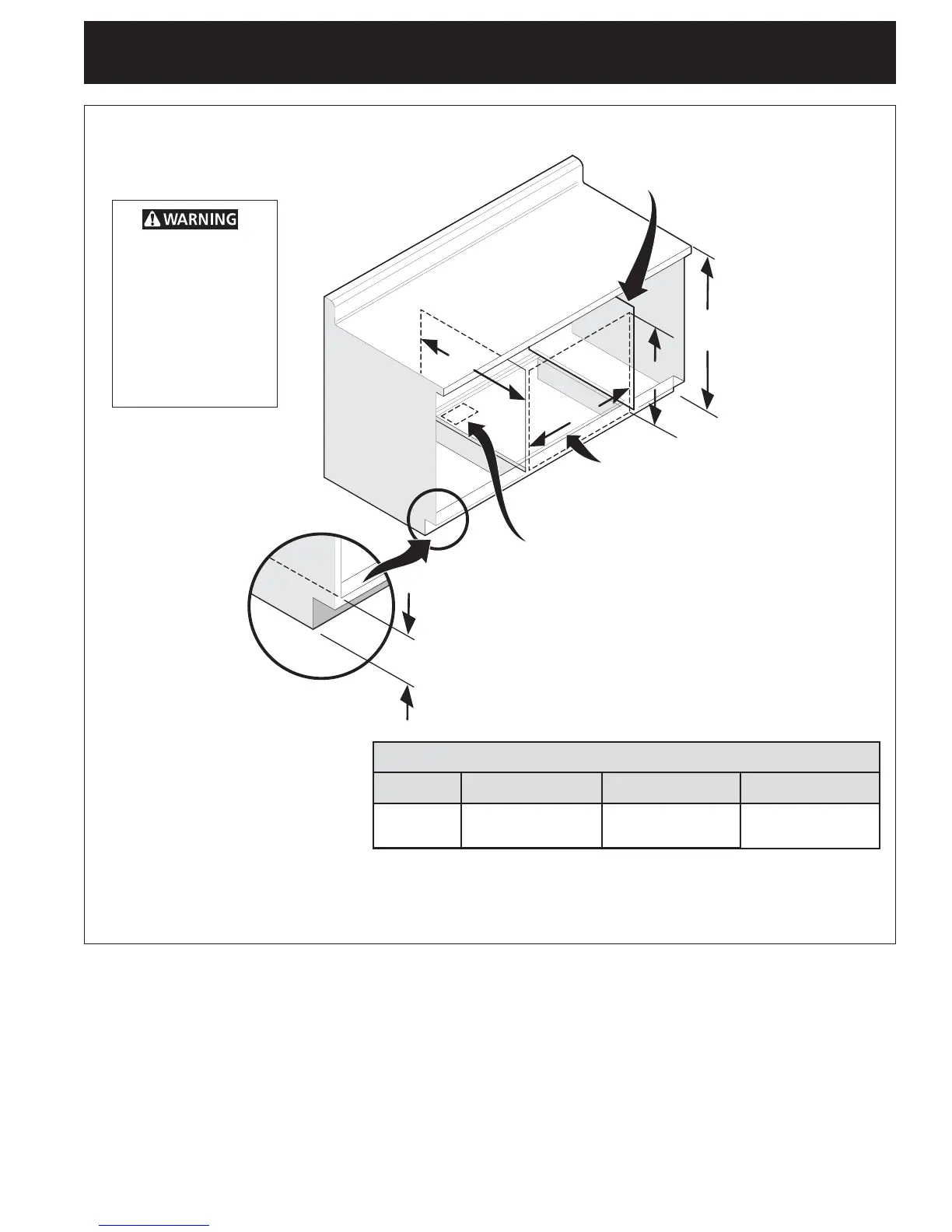

Figure 10 – TYPICAL UNDER COUNTER INSTALLATION OF AN ELECTRIC BUILT-IN OVEN
30" SINGLE WALL OVEN ONLY
To reduce the risk of
personal injury and
tipping the wall
oven, the wall oven
must be secured to
the cabinet(s) by
properly installed
mounting screws or
brackets.
Side filler panels are necessary to
isolate the unit from adjoining
cabinets.
36" Min.
(91.4 cm)
G
F
H
Use 3/4" (1.9 cm) plywood, installed
on two runners, flush with toe plate.
Must be capable of supporting 150
pounds. (68 kg).
Cut an opening in wood base
minimum 9" x 9" (23 x 23 cm), 2"
(5 cm) from left side filler panel, to
route armored cable to the wall
outlet or junction box.
4 1/2"
(11.4 cm)
Max.
CUTOUT DIMENSIONS
F.WIDTH G.DEPTH
H.HEIGHT
30" (76.2 cm)
Wall Oven
28 1/2" (72.4 cm) Min.
29" (73.7 cm) Max.
24" (61 cm) Min.
28 1/4" (71.8 cm) Min.
28 7/8" (73.3 cm) Max.
