ELECTRIC WALL OVEN INSTALLATION INSTRUCTIONS
Hole for
Cable
Electrical
Junction
Box
3" (7.6 cm)
Max.
1
1
/2"
(3.8 cm)
Min.
A
D
B
C
I
11
1
/2"
(29.2 cm)
G
F
H
47
3
/4"
(121.3 cm)

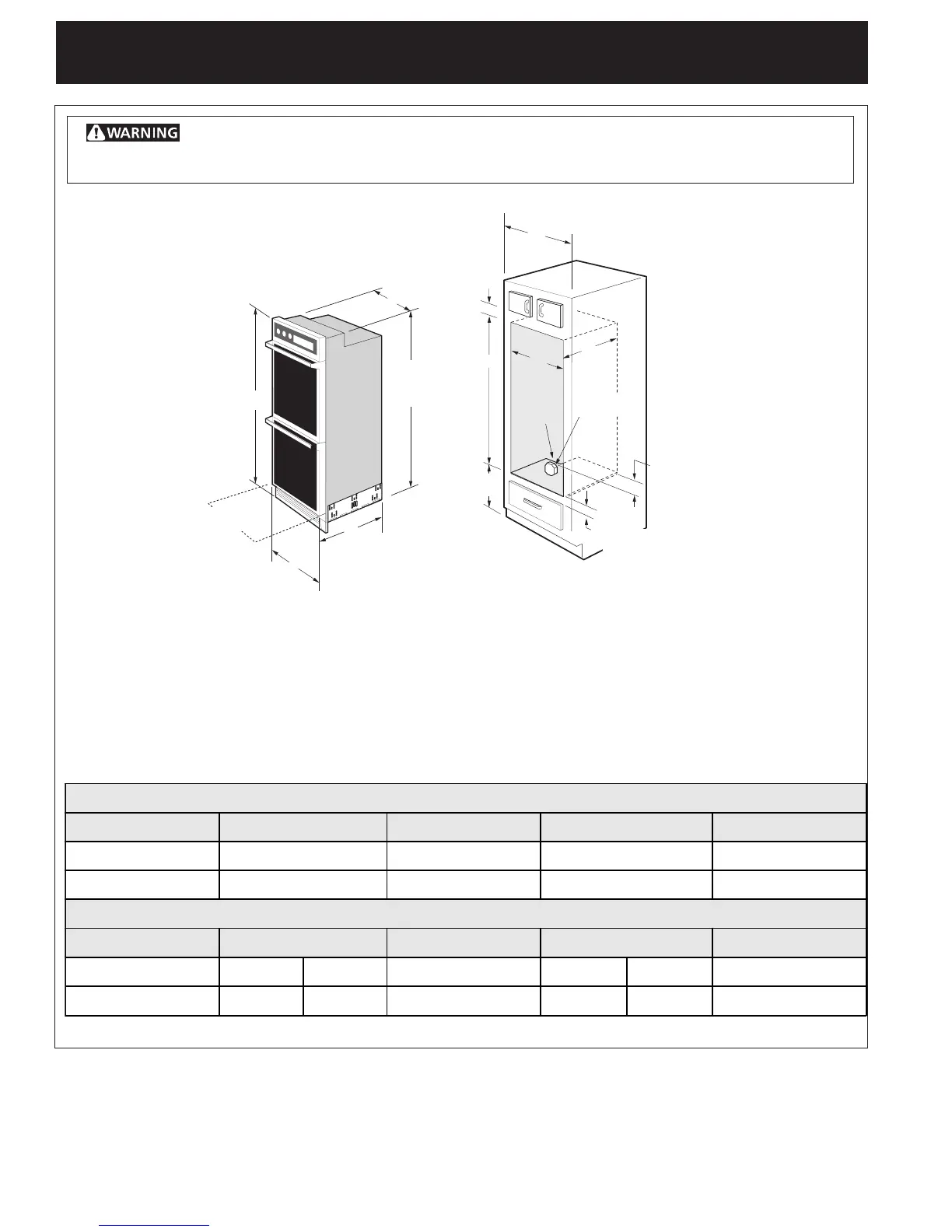

Figure 2
27" AND 30" DOUBLE OVENS
(Single Ovens see Figure 1)
Some models are not available in Canada.
Do not remove spacers (if equipped) on the side walls and/or on the back of the built-in oven.
These spacers center the oven in the space provided. The oven must be centered to prevent excess heat
buildup that may result in heat damage or fire.
NOTE: Dimension G is critical to the proper installation of
the built-in oven. If the oven decorative trim (ventilation)
does not but against the cabinet, or if noise is heard on
convection models, verify dimension G to assure it is
according to the required dimension.
All dimensions are in inches (cm).
NOTE: Base must be capable of supporting 300 pounds
(136 kg).
** NOTE: Allow at least 19
3
/
8" (49.2 cm) clearance for door
depth when it is open.
* Dimensions for stainless steel models.
** Door Open
(see note)
2" (5.1 cm)
Min.
PRODUCT DIMENSIONS
MODEL A B C (wrapper) D
27" (68.6 cm) Wall Oven
26 7/8 (68.2) (*27 1/8 (68.9)) 49 1/4 (125.1) 24 11/16 (62.7) 25 3/8 (64.5)
30" (76.2 cm) Wall Oven
29 7/8 (75.9) 50 (127) 28 3/8 (72.1) 25 7/16 (64.6)
CUTOUT DIMENSIONS AND CABINET WIDTH
MODEL Min. F Max. G (Min.) Min. H Max. I
27" (68.6 cm) Wall Oven
24 7/8 (63.2) 25 1/4 (64.1) 23 1/2 (59.7) 48 (121.9) 49 7/8 (126.7) 27 (68.6) Min.
30" (76.2 cm) Wall Oven
28 1/2 (72.4) 29 (73.7) 24 (61) 49 1/8 (124.8) 49 3/4 (126.4) 30 (76.2) Min.
