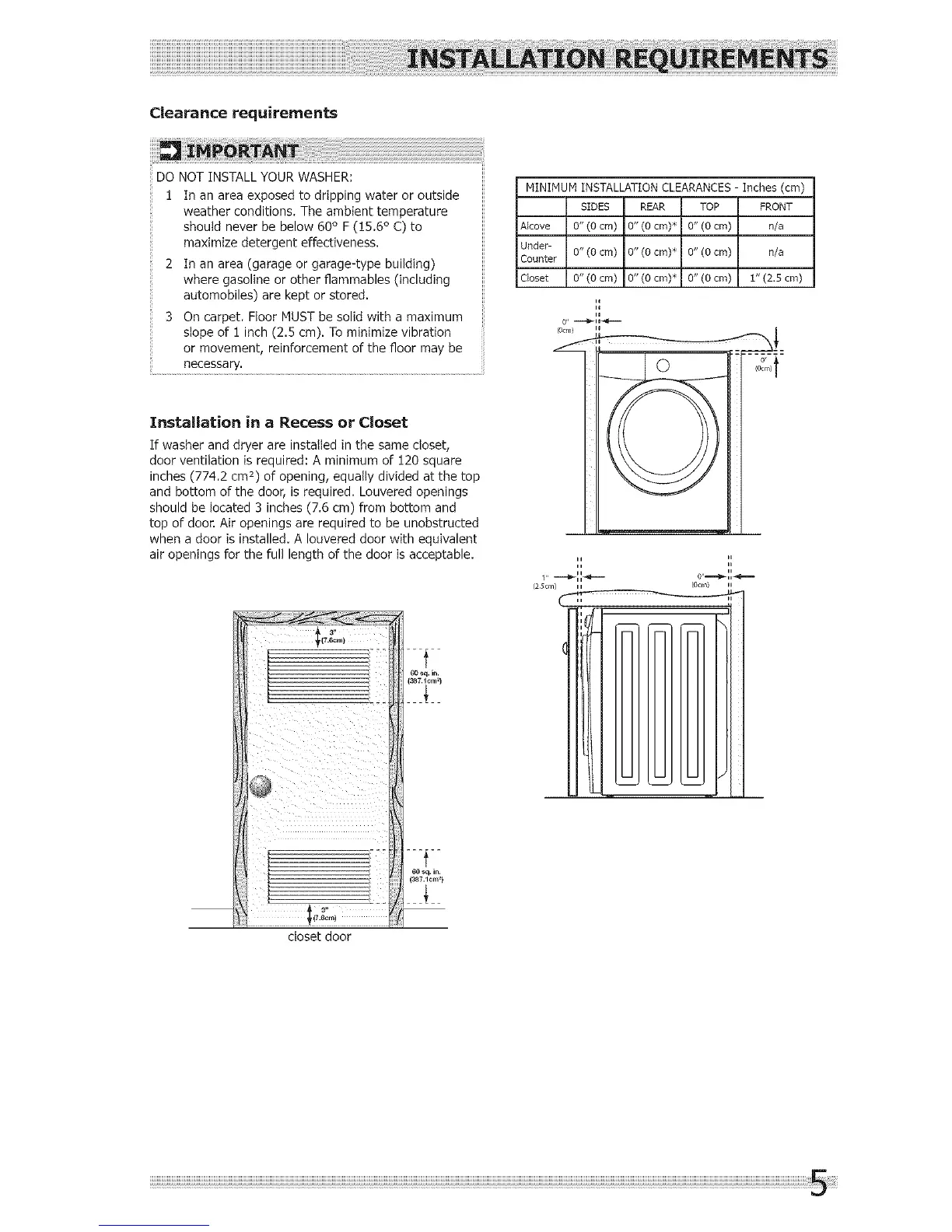

Clearance requirements
INSTALL YOUR WASHER:
1 In an area exposed to dripping water or outside
weather conditions, The ambient temperature
should never be below 60° F (i5,6 ° C) to
maximize detergent effectiveness.
2 In an area (garage or garage-type building)
where gasoline or other flammables (including
automobiles) are kept or stored.
3 On carpet, Floor MUST be solid with a maximum
slope of 1 inch (2.5 cm). To minimize vibration
or movement, reinforcement of the floor may be
necessary.
Installation in a Recess or Closet
If washer and dryer are installed in the same closet,
door ventilation is required: A minimum of 120 square
inches (774,2 cm 2) of opening, equally divided at the top
and bottom of the door, is required. Louvered openings
should be located 3 inches (7,6 cm) from bottom and
top of door. Air openings are required to be unobstructed
when a door is installed. A Iouvered door with equivalent
air openings for the full length of the door is acceptable.
closet door
MINIMUM INSTALLATION CLEARANCES - Inches (cm)
SIDES REAR TOP FRONT
Alcove 0"(0 cm) 0" (0 cm)* 0" (0 cm) n/a
Under- 0"(0 cm) 0" (0 crn)* 0" (0 cm) n/a
Counter
Closet 0" (0 cm) 0" (0 cm)* 0" (0 cm) 1" (2.5 cm)
1',
o..---_',',_,--
(25cm) (Ocm)
iii1
